Yihui EP300 electrolytic polishing machine is specially made for jewelry industry,suitable for gold,silver,copper and stainless steel ornaments.It achieves smooth mirror surface with even polishing effect.Stable operation,energy saving and easy to use.It simplifies polishing process,improves finished product quality and production efficiency,ideal equipment for mass jewelry polishing.

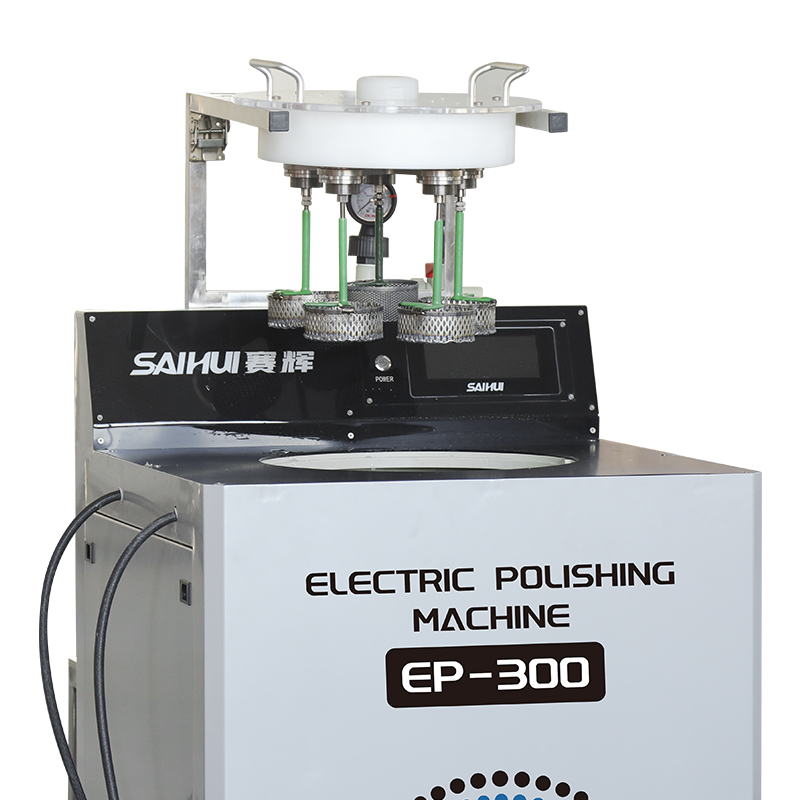

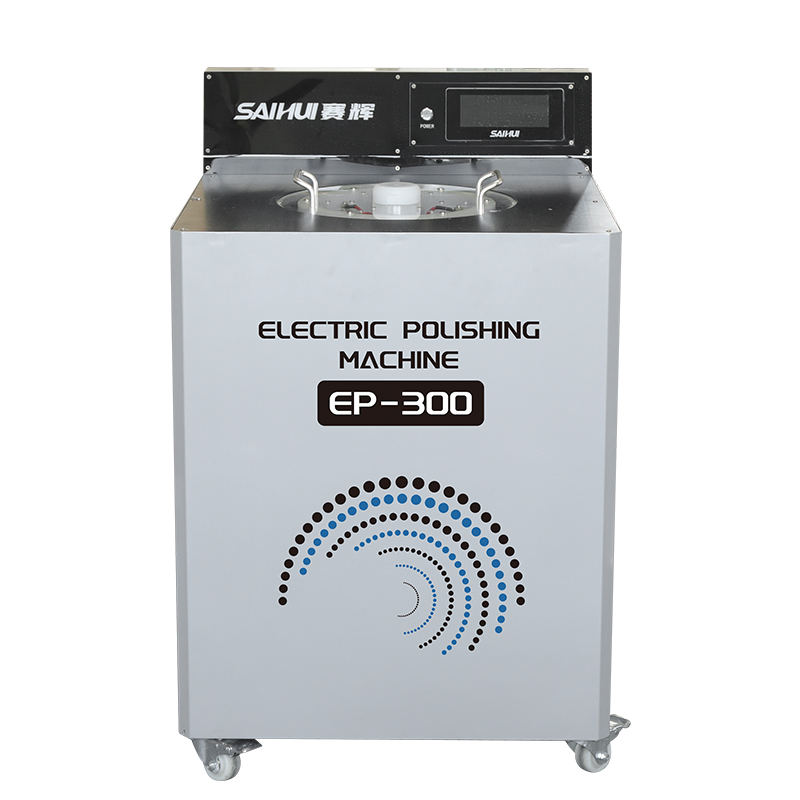

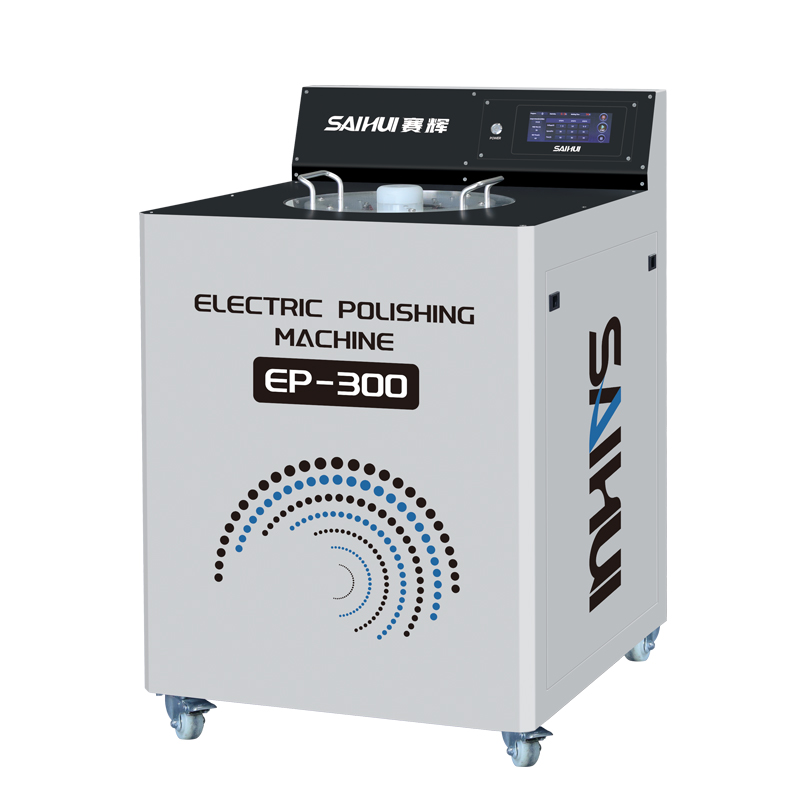

EP300 ELECTRIC POLISHING MACHINE
Suitable for precision polishing of small pieces made of gold, silver, copper, and stainless steel materials. Plays an important role in areas such as gaps, pores, and indentations, polishing does not require any abrasives and relies entirely on electrolysis. The basic principles of electrolysis include deburring at high levels, leveling at medium levels, emitting light at low levels, and segmented program control.
The electrolysis process is safe and reliable, and the electrolyte does not contain toxic and harmful substances such as chromic anhydride and cyanide. lt is environmentally friendly, non combusti ble, non explosive, and easy to handle the tail liquid.
PRODUCT FEATURES
CIRCULATING FILTRATION：Equipped with a circulating filtration system to improve the quality of electrolytic polishing.
CONSTANT TEMPERATURE FUNCTION：Equipped with a dual temperature controlled chiller to improve the efficiency of electrolytic polishing.
RECYCLING PROCESSING：One click automatic recycling, eliminating the problem of difficult recycling.
| Model | Power supply | Power | Maximum current output | Size |
| Z.M.MT.EP300D | Single-phase AC220V 50/60Hz | 2.2KW | DC20V, 100A | 700x950x1100mm |

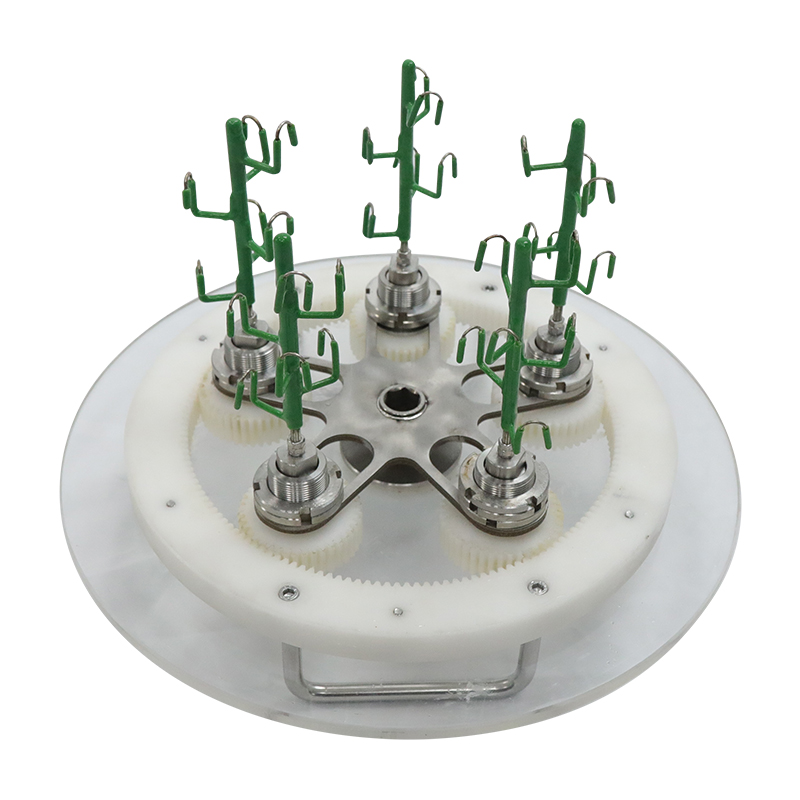

| Quantity of polished workpieces: 5 hanging baskets, each holding 4-8 workpieces | ||||
