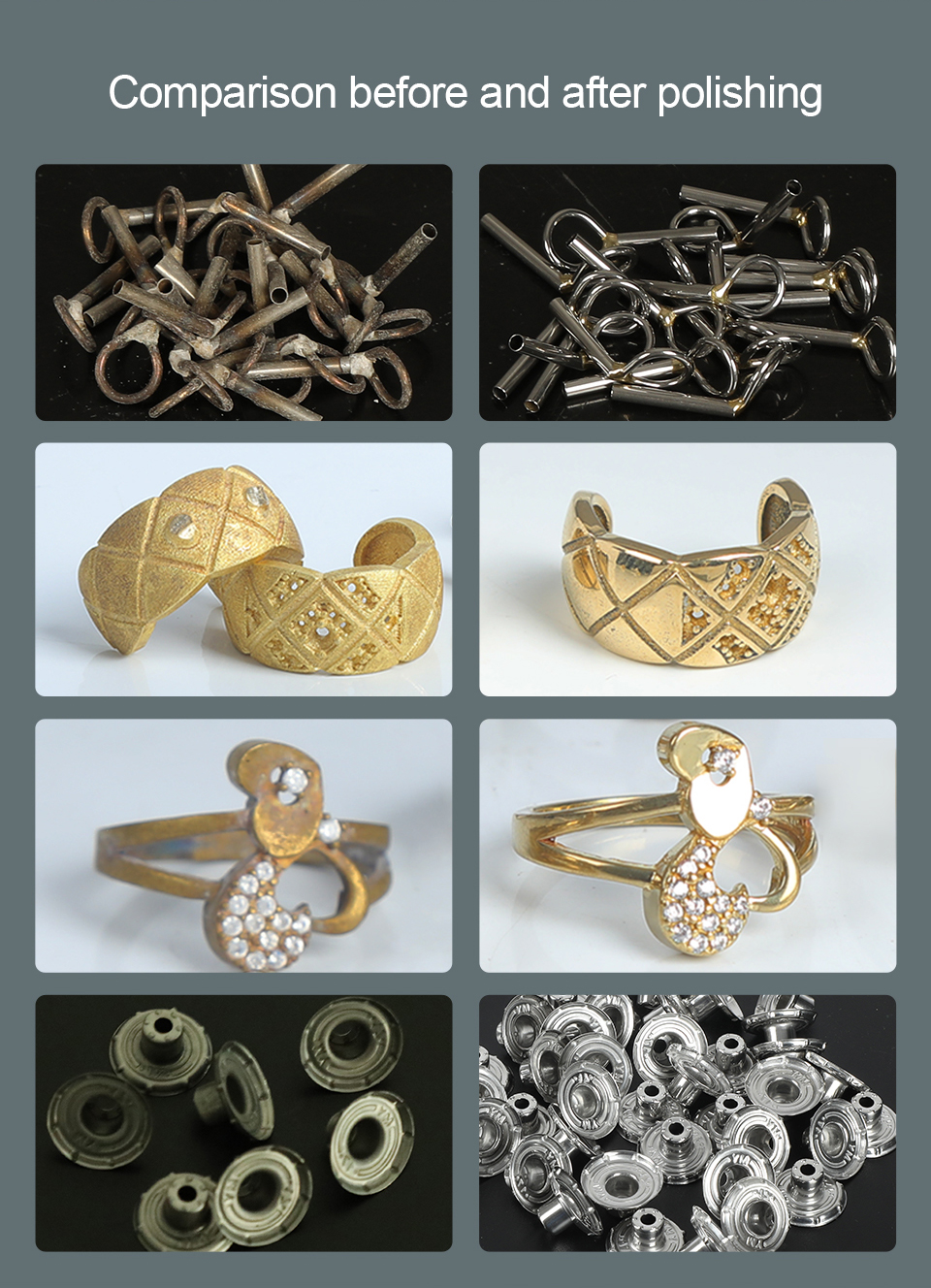

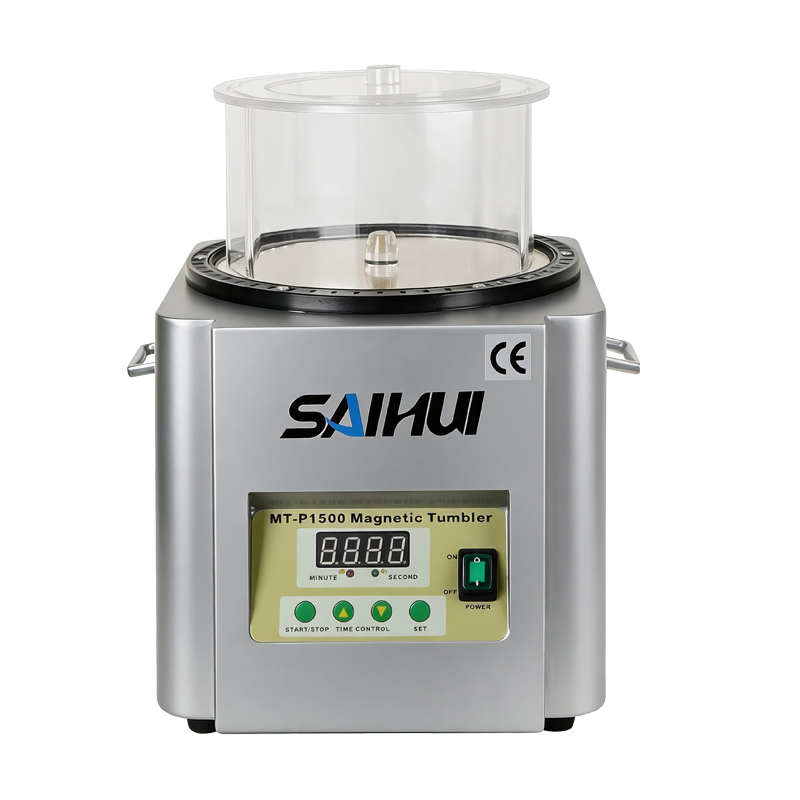

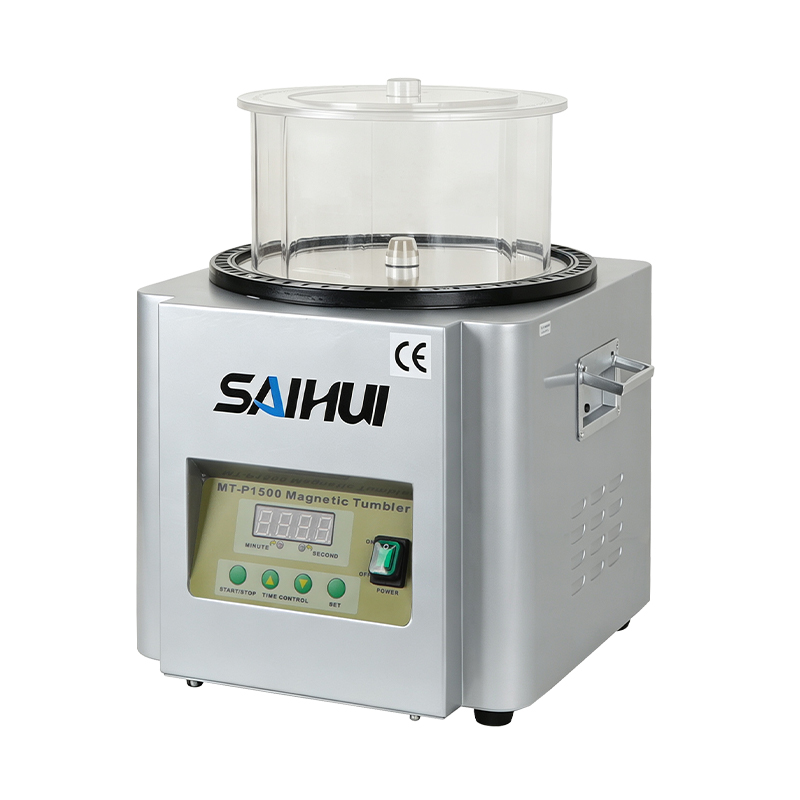

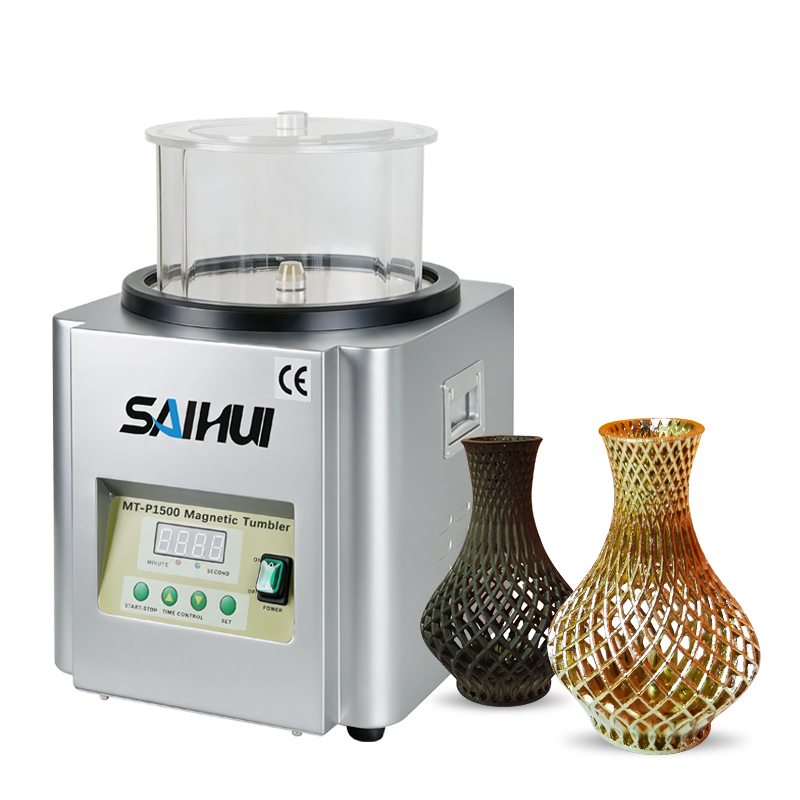

Magnetic Tumbler Series is a professional magnetic polishing and surface finishing equipment designed for small metal parts, jewelry, hardware accessories, and precision components. Adopting advanced magnetic eddy current polishing technology, this magnetic tumbler series replaces traditional manual polishing and abrasive grinding methods, achieving uniform deburring, edge rounding, surface smoothing, and mirror finishing for workpieces. Suitable for mass production and batch processing, the equipment features stable operation, low loss, and zero damage to workpiece surfaces, making it an essential precision finishing solution for jewelry factories, hardware processing plants, and precision machinery workshops.

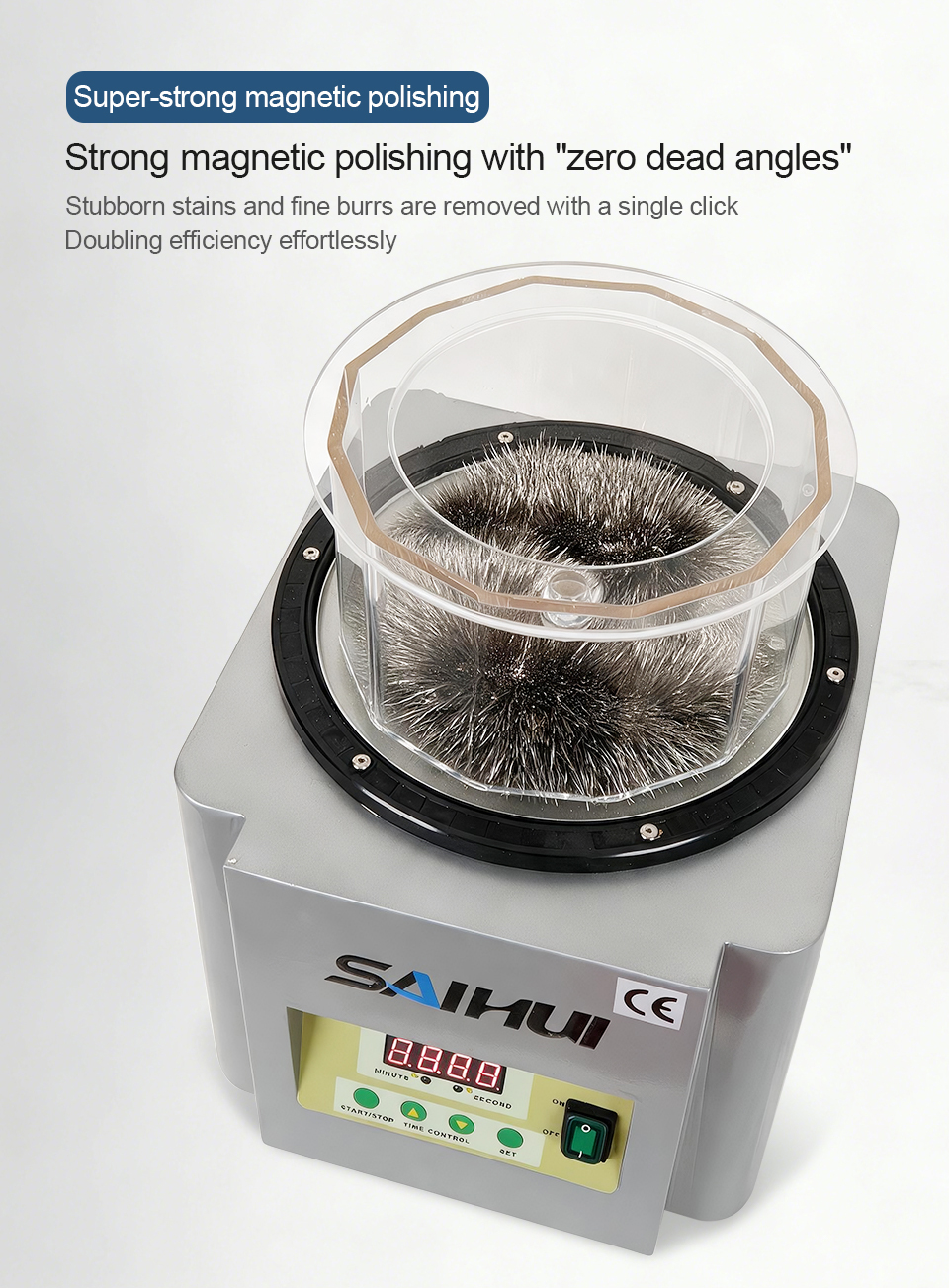

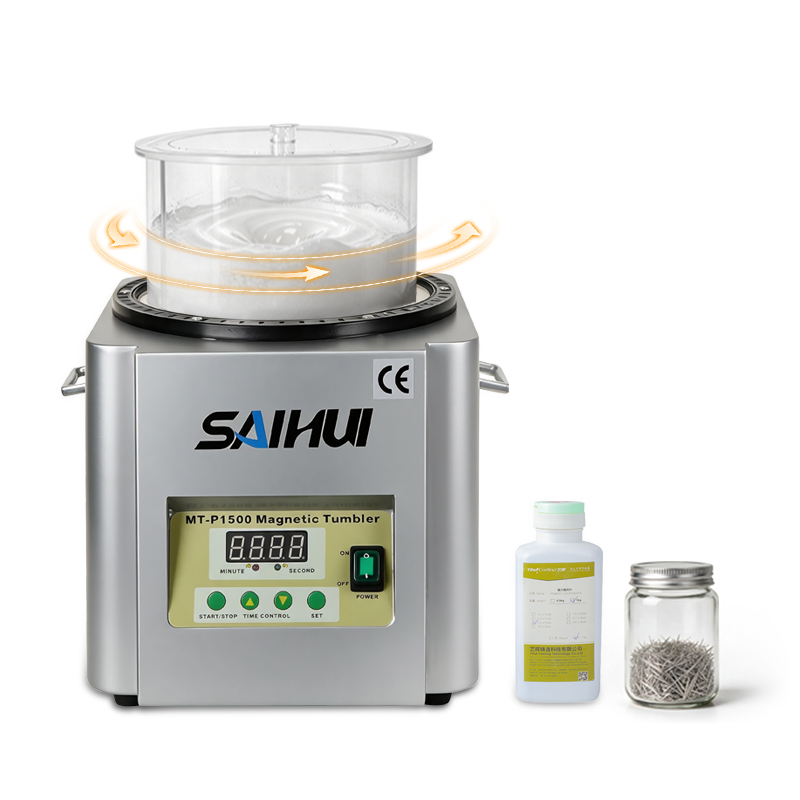

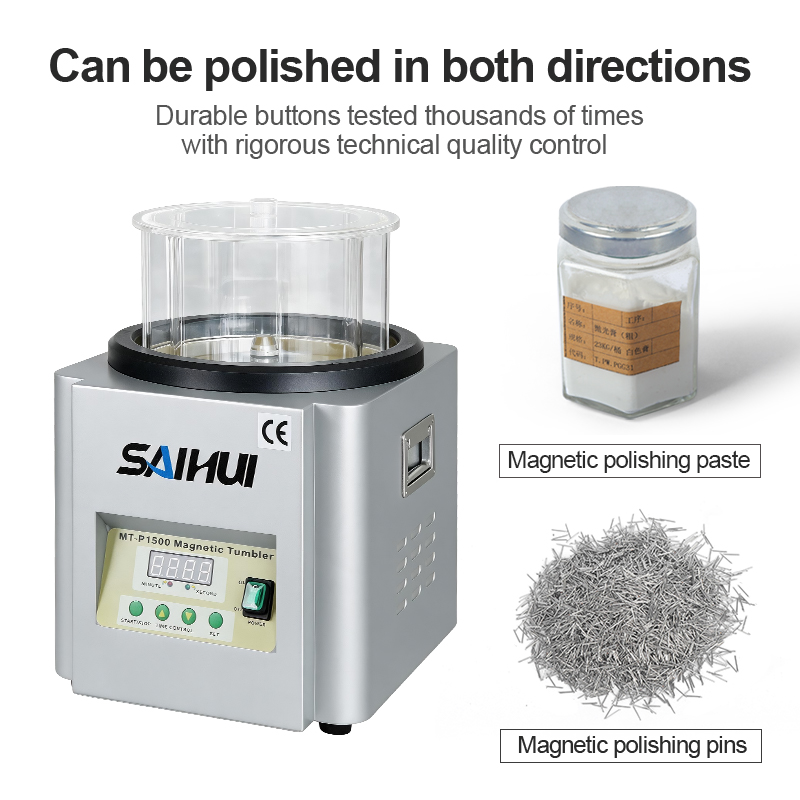

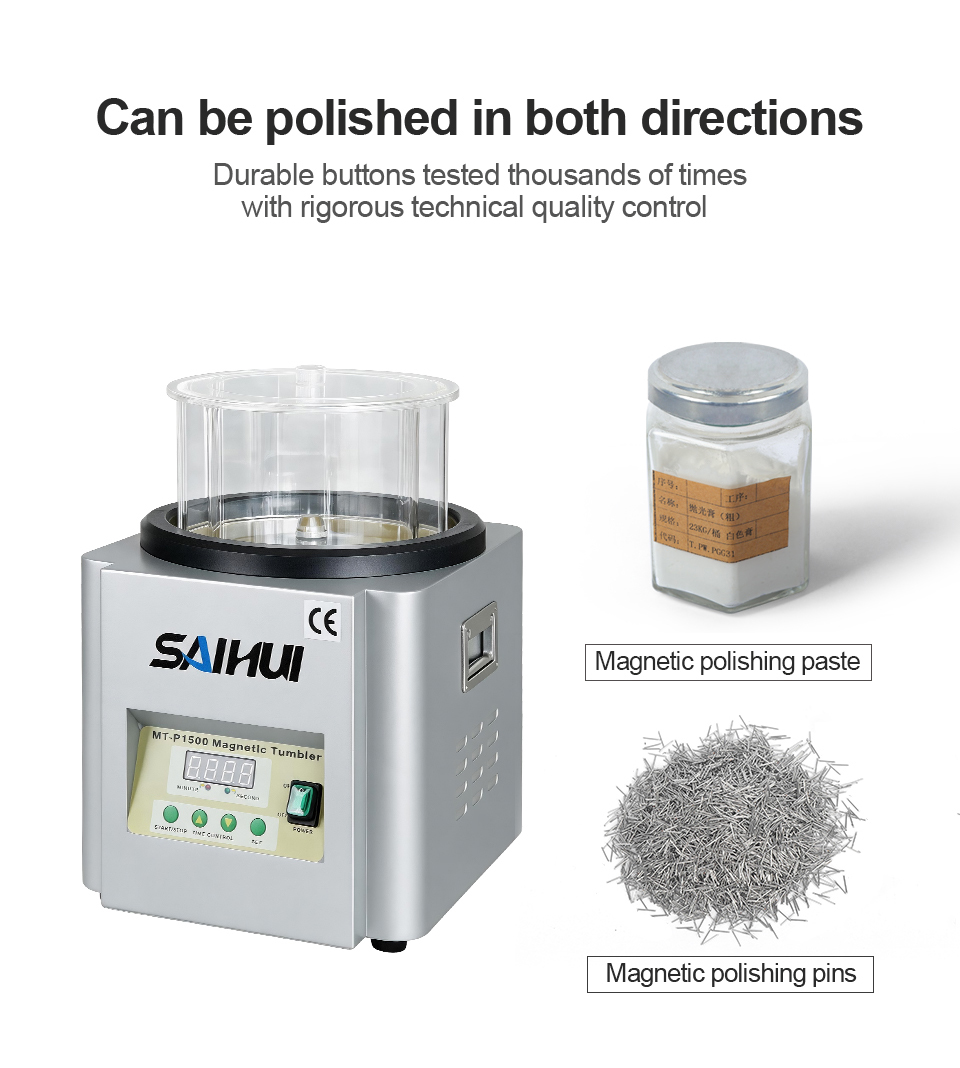

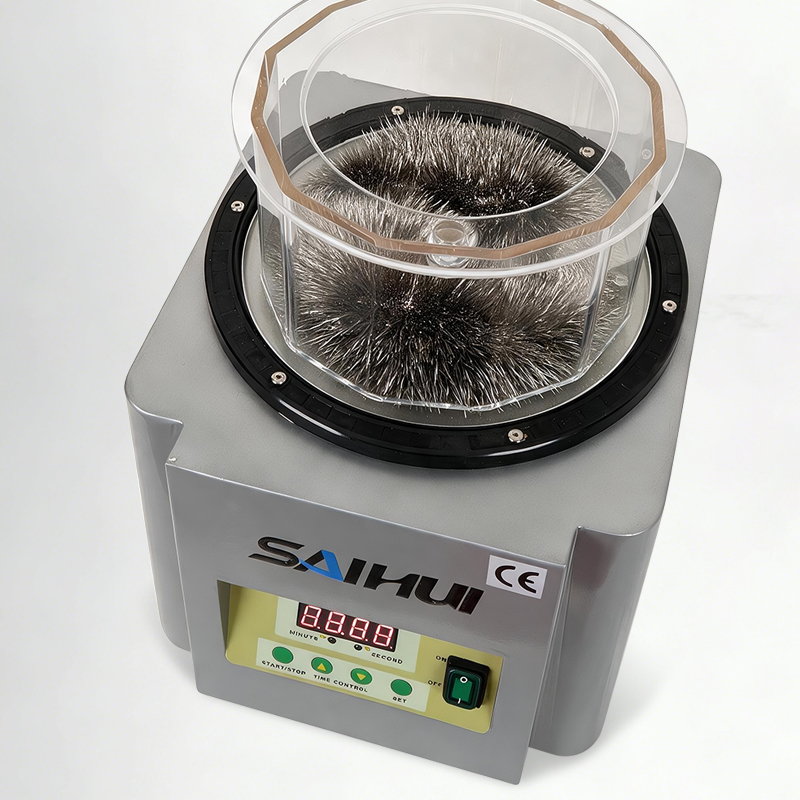

Magnetic Tumbler Series is professional magnetic polishing equipment for jewelry and small metal parts. It uses magnetic force to drive stainless steel pins for 360° dead-angle-free deburring and surface finishing. Ideal for gold,silver,copper and alloy workpieces. Features stable operation,low noise and easy maintenance. Customizable models are available for jewelry factories and batch production.
Product Features
Apply to jewelry surface processing, suitable for the polishing of gold/silver/copper/zinc-alloy and other metals without magnetic. Suitable to make the surface of hardware to be smooth without burrs
1. Big power motor and alternate magnetic field to machine make it more powerful.
2. With digital circuit, reversible time can be set any time.
3. Electrical parts are made by imported material to extend the life of machine.
4. Elaborate design and convenient operation.
5.When polishing chamber is took out of machine, tumbler will stop automatically to save power.

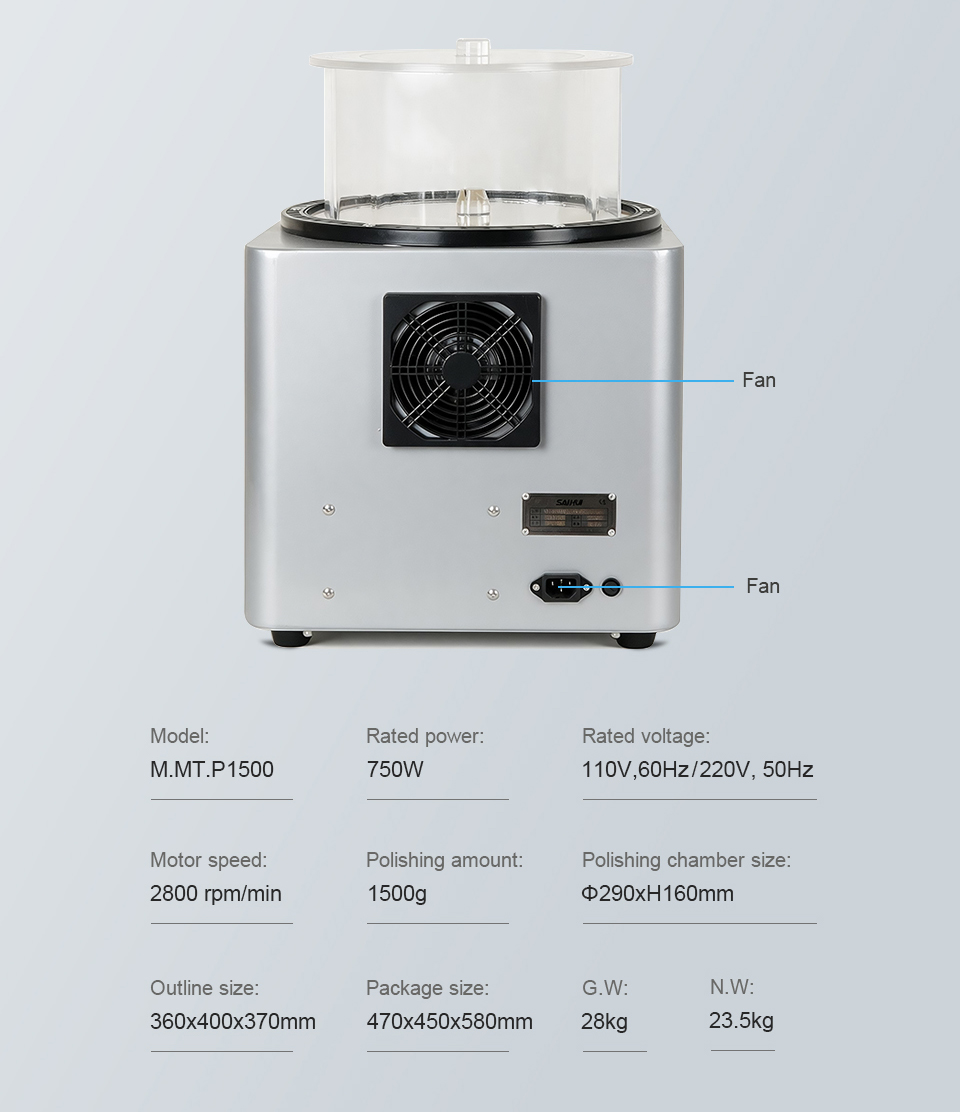

| Model | M.MT.PO800 | M.MT.P1000 | M.MT.P1500 | M.MTP2500 |
| Rated power | 250W | 550W | 750W | 1100W |
| Rated voltage | 110V 60Hz/220V 50Hz | 110V, 60Hz/220V, 50Hz | 110V, 60Hz/220V, 50Hz | 220V 50Hz |
| Motor speed | 2800 rpm/min | 2800 rpm/min | 2800 rpm/min | 1400 rpm/min |
| Polishing amount | 800g | 1000g | 1500g | 2500g |
| Polishing chamber size | Ф165xH140mm | Ф210xH150mm | Ф290xH160mm | Ф330xH175mm |
| Outline size | 260x250x310mm | 290x290x340mm | 360x400x370mm | 450x420x603mm |
| Package size | 360x290x480mm | 390x330x520mm | 470x450x580mm | 530x495x645mm |
| G.W | 18kg | 22kg | 28kg | 42kg |
| N.W | 16kg | 20kg | 23.5kg | 40kg |
