Track prospects and core positioning of the plan

Yihui Casting has been deeply involved in the field of precious metal precision casting for 23 years. Targeting the core needs of a team of 5-10 people and a 50-100 square meter small and medium-sized industrial platinum palladium parts factory, we have created the first full process high vacuum closed industrial platinum palladium precision machining solution in China. All equipment is customized and developed for the physical and chemical properties of platinum group precious metals, achieving an oxygen free environment throughout the entire process from melting, casting to post-treatment. The comprehensive loss is controlled within 0.5%, and the casting density reaches 100%. The dimensional accuracy meets the highest level requirements of GB/T 15077-2019 "General Technical Conditions for Precious Metals and Their Alloy Castings", helping small and medium-sized factories break through technical barriers and enter the high-end industrial parts supply chain system.

Platinum group metals (platinum, palladium, rhodium, iridium, etc.) are irreplaceable core materials in high-end manufacturing industries such as aerospace, electronic information, petrochemicals, new energy, and healthcare due to their high melting point, high corrosion resistance, high catalytic activity, and good high-temperature stability. According to the Precious Metals Branch of the China Nonferrous Metals Industry Association, the annual average growth rate of industrial platinum group metal processing in China is 12%. However, the technical level of small and medium-sized processing plants is generally lagging behind, and more than 90% of factories cannot produce high-end industrial parts with precision requirements of ± 0.01mm or more and density requirements of 100%. They can only undertake low value-added rough processing business.

The processing of industrial platinum palladium accessories belongs to the typical high difficulty, high threshold, and high loss precision manufacturing field. Its core technical barrier lies in the melting points of platinum and palladium, which are 1772 ℃ and 1554 ℃ respectively. At high temperatures, they are prone to react with elements such as oxygen, nitrogen, and carbon; Liquid platinum palladium has poor fluidity, weak filling ability, and is prone to internal defects such as shrinkage, porosity, and porosity; Precious metals have extremely high value, and every 1 ‰ loss can cause huge economic losses. Traditional processes have been unable to overcome the technical bottlenecks mentioned above due to insufficient equipment vacuum, insufficient casting pressure, and poor temperature control accuracy.

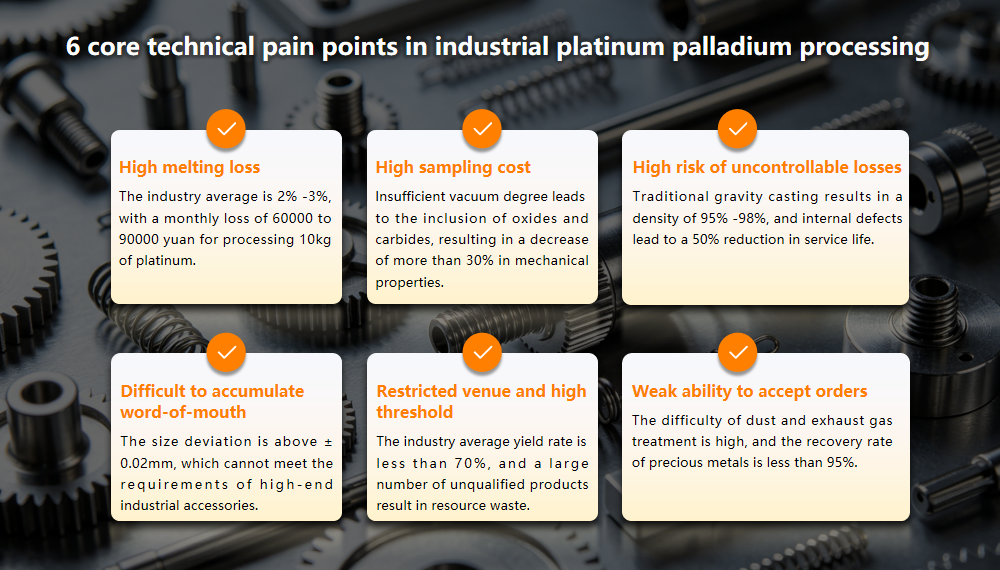

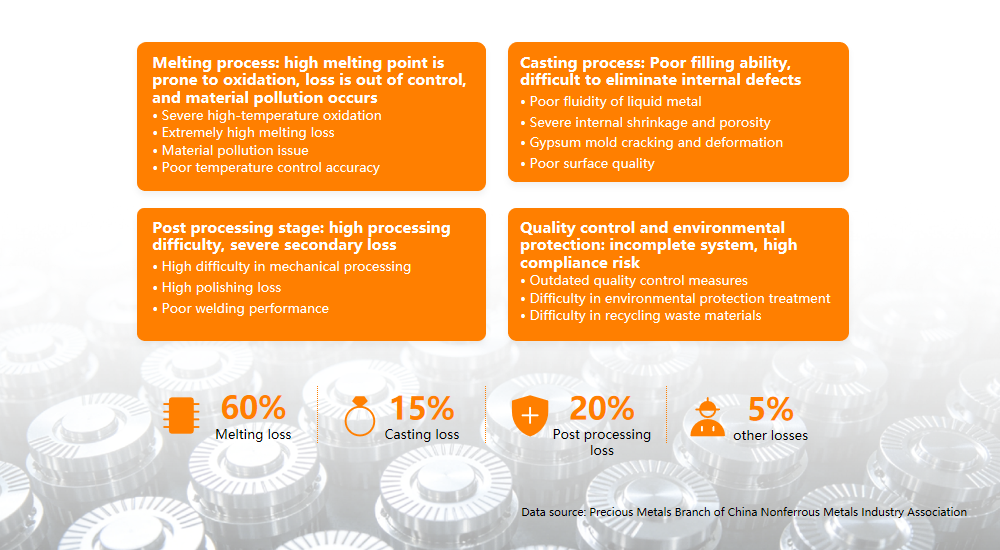

Core technology pain points in the industrial platinum palladium parts processing industry

The quality of industrial platinum palladium accessories directly determines the performance and lifespan of downstream end products. Traditional processes have technical bottlenecks that cannot be overcome in the following core areas, which are also common problems that have existed in the industry for a long time:

Yihui Solution Positioning and Full Process Technical Logic

Positioning Strategy

Specially designed for teams of 5-10 people and small and medium-sized industrial platinum palladium precision parts factories of 50-100 square meters, it is the first customized full process high vacuum precision machining solution for platinum group precious metals in China. The plan covers the complete production chain from raw material testing, melting, casting, post-treatment to finished product testing. All equipment operates in a high vacuum sealed manner to prevent oxidation and loss at the root; Supporting industrial grade quality control system to ensure that every product meets high-end industrial standards; The equipment specifications are suitable for the production capacity needs of small and medium-sized factories, without the need for large-scale factory renovation. The production line can be set up and put into operation in 7 days.

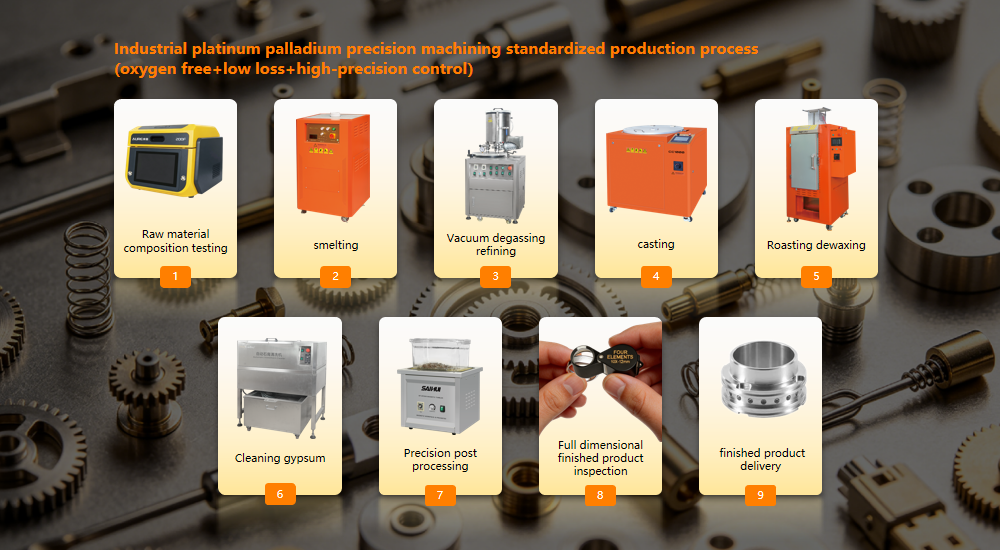

Full process implementation and production logic

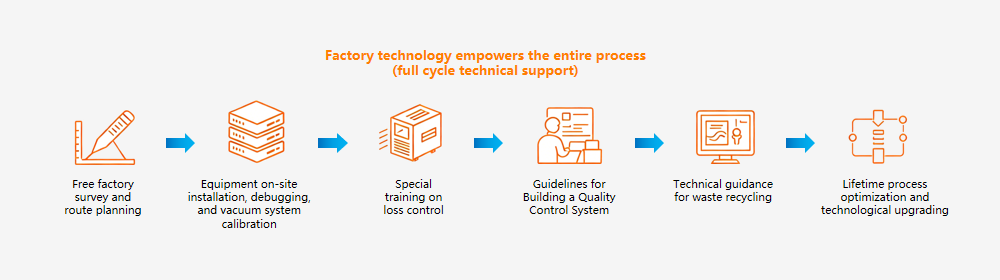

This plan is divided into two core modules: the standardized production process of industrial platinum palladium precision machining and the technology empowerment process, forming a complete technical loop from raw materials to finished products, ensuring the stability and consistency of the production process.

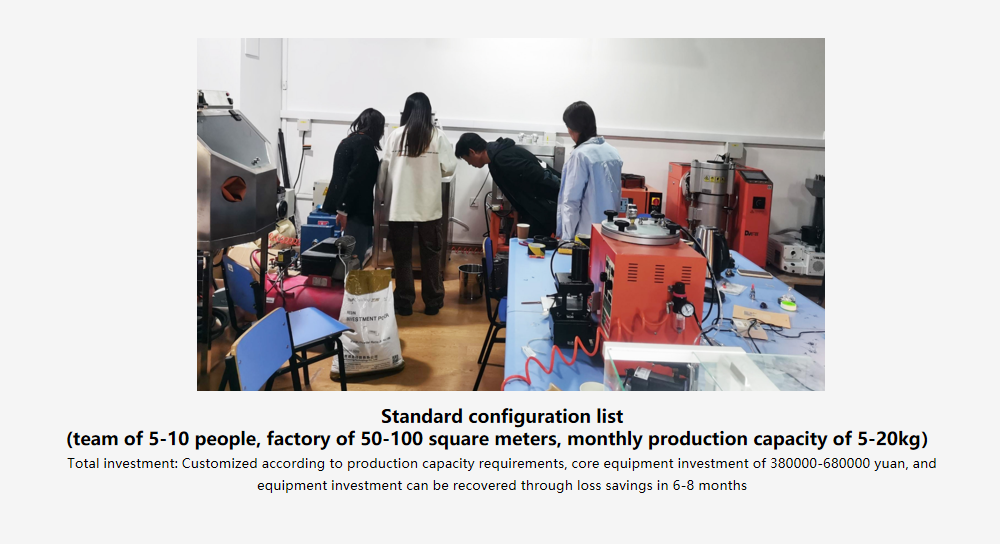

Factory exclusive core equipment and supporting consumables system

All equipment in this plan is directly supplied by Yihui factory, customized and developed for the high melting point and easy oxidation characteristics of platinum group precious metals. The core components are imported to ensure the stability and reliability of the equipment; Supporting exclusive consumables and tools to form a complete production loop, without the need for scattered procurement of additional equipment.

Core main equipment

Vacuum powder mixer

Corresponding process step: gypsum molding preparation step

Core technical parameters: ① Vacuum degree: ≤ -0.09MPa; ② Mixing speed: adjustable from 0-500rpm; ③ Mixing capacity: 1-10 kg gypsum powder; ④ Automatic water addition, automatic mixing, and automatic mold pouring.

Industry exclusive value: Mixing gypsum powder under vacuum state, no bubbles, no impurities, and uniform density of gypsum mold; One click fully automatic operation, no need for manual supervision, ensuring batch consistency.

High temperature rotary electric furnace

Corresponding process step: Gypsum mold roasting step

Core technical parameters: ① Maximum temperature: 1200 ℃, temperature control accuracy: ± 2 ℃; ② Adopting a segmented temperature control program, it can store 20 sets of process curves; ③ Heating rate: adjustable from 0-10 ℃/min.

Industry exclusive value: specially designed for platinum palladium casting gypsum molds, segmented temperature control roasting thoroughly eliminates moisture and crystallization water in gypsum, preventing gypsum mold cracking and deformation; After calcination, the gypsum mold has a high density and the surface smoothness of the casting reaches Ra1.6 μ m.

Platinum melting machine

Corresponding process step: Melting step

Core technical parameters: ① Ultimate vacuum degree: ≤ 1Pa; ② Maximum melting temperature: 2000 ℃, temperature control accuracy: ± 5 ℃

③ Electromagnetic stirring power: adjustable from 0-10kW; ④ Melting capacity: 1-5kg platinum palladium alloy; ⑤ Equipped with a dedicated zirconia crucible.

Industry exclusive value: The only high vacuum melting furnace customized for platinum and palladium in the industry, with a vacuum degree 100 times higher than traditional equipment, completely eliminating high-temperature oxidation; Electromagnetic stirring ensures uniform alloy composition and segregation rate ≤ 0.1%; Special zirconia crucible does not react with platinum palladium and has no material contamination; Melting loss ≤ 0.3%, reduced by 10 times compared to traditional equipment.

Centrifugal casting machine

Corresponding process stage: Casting stage

Core technical parameters: ① Vacuum degree: ≤ 1Pa; ② Casting pressure: adjustable from 0-0.8MPa; ③ Maximum temperature of the mold: 1200 ℃; ④ Maximum weight that can be cast: 5kg; ⑤ Equipped with centrifugal casting auxiliary system.

Industry exclusive value: Adopting a dual technology of vacuum filling and pressure compensation, it completely solves the problems of poor liquid flowability and large solidification shrinkage of platinum palladium; The casting has a density of 100% and no internal defects such as shrinkage porosity, shrinkage cavities, or air holes; Thin walled complex components with a wall thickness of 0.2mm can be cast, with a dimensional accuracy of ± 0.005mm.

Precision laser polishing machine

Corresponding process stage: post-processing stage

Core technical parameters: ① Laser power: 0-100W adjustable; ② Polishing accuracy: ± 0.001mm; ③ Minimum polishing aperture: 0.1mm; ④ Polishing loss: ≤ 0.05%.

Industry exclusive value: non-contact laser polishing, without damaging the dimensional accuracy of the workpiece; Can polish complex cavities, micropores, and other areas that traditional polishing cannot reach; Polishing loss is only 1/10 of traditional mechanical polishing, significantly reducing precious metal loss.

High temperature argon arc welding machine

Corresponding process step: Welding step

Core technical parameters: ① Welding current: adjustable from 0-200A; ② Purity of argon protection: 99.999%; ③ Welding temperature: 0-2500 ℃; ④ Minimum weldable thickness: 0.1mm.

Industry exclusive value: high-purity argon gas shielded welding, no oxidation, no porosity; The strength of the welded joint is consistent with the base material, meeting the mechanical performance requirements of industrial components; Easy to operate, beginners can get started after training.

Supporting auxiliary equipment (full process closed-loop coverage, exclusive adaptation for K gold/foot silver production)

High pressure gypsum cleaning machine

Core function: Gypsum removal and cleaning of castings.

Technical and compliance value: ① High pressure water gun pressure: adjustable from 0-120MPa; ② The cleaning efficiency is 10 times higher than manual labor; ③ No damage to the fine structure of the workpiece, no gypsum residue.

Technical and compliance value: High pressure water flow quickly removes gypsum residues on the surface and inside of castings, avoiding gypsum particles from scratching the workpiece during subsequent processing; Equipped with a precious metal recovery device to collect platinum palladium dust from cleaning water, with a recovery rate of ≥ 99%.

Industrial grade vacuum polishing table

Core function: Dust collection for polishing

Technical and compliance value: ① Dust collection rate: 99.9%; ② Equipped with HEPA high-efficiency filters; ③ Dust emission concentration: ≤ 10mg/m ³.

Technical and compliance value: Fully enclosed collection of platinum palladium dust generated during the polishing process, which meets the GB 16297-1996 air pollutant emission standard and can recover precious metals in the dust with a recovery rate of ≥ 99%.

chiller

Core function: Cooling of melting/casting equipment.

Technical and compliance value: ① Temperature control accuracy: ± 0.5 ℃; ② Cooling capacity: 1P; ③ Water temperature adjustment range: 5-35 ℃.

Technical and compliance value: Providing stable cooling water for melting furnaces and casting machines, ensuring the stable operation of equipment vacuum systems and temperature control systems, and improving the consistency of casting dimensions.

Ultrasonic cleaning machine

Core function: Remove oil, dirt, and clean workpieces.

Technical and compliance value: ① Step by step cleaning of 3 tanks: coarse washing → fine washing → rinsing; ② Ultrasonic frequency: 40kHz; ③ Cleaning temperature: adjustable from room temperature to 80 ℃.

Technical and compliance value: Thoroughly remove impurities such as oil stains and polishing paste on the surface of the workpiece, ensuring the accuracy of subsequent welding and testing; The cleaning solution is reusable and equipped with a precious metal recycling filter element.

Precious metal analyzer

Core function: Testing of raw materials and finished product components.

Technical and compliance value: ① Detection element range: more than 20 elements including Pt, Pd, Rh, Ir, Au, Ag, etc; ② Detection accuracy: ppm level; ③ Detection time: 10 seconds.

Technical and compliance value: Quickly and accurately detect the alloy composition of raw materials and finished products to ensure compliance with customer requirements; Establish a component testing system for raw material storage and finished product storage to prevent unqualified raw materials from entering production.

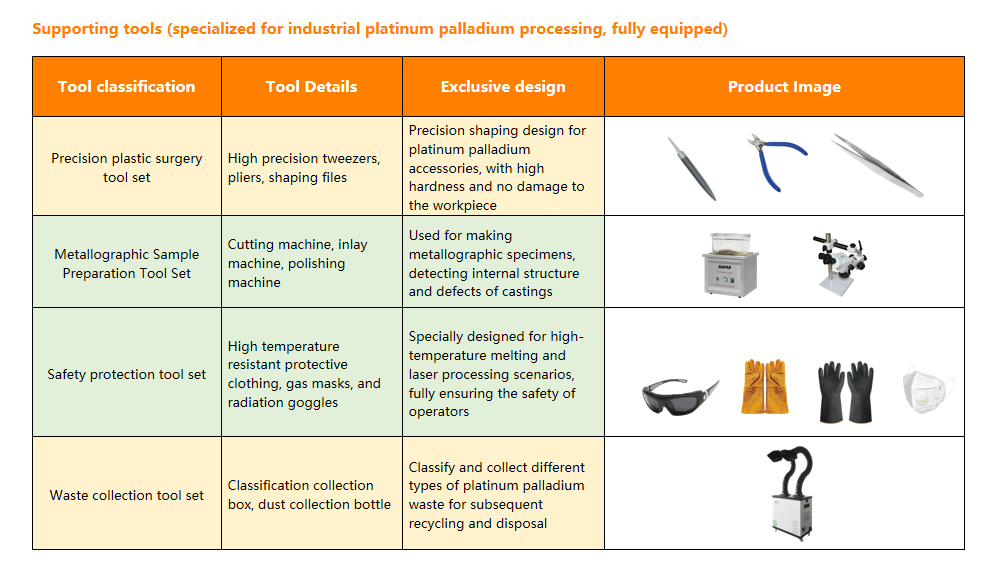

Supporting tools (specialized for industrial platinum palladium processing, fully equipped)

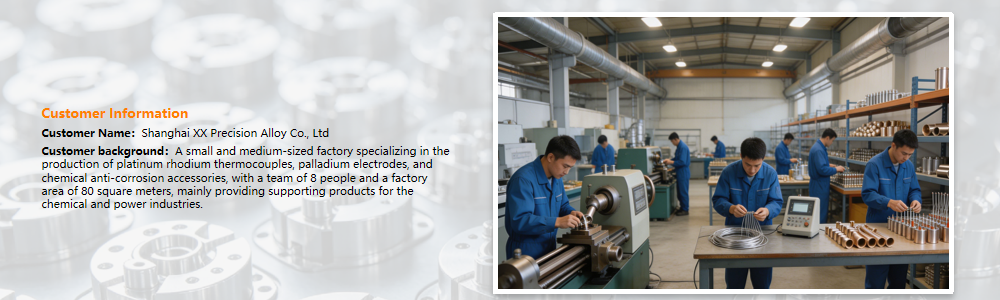

Practical examples of benchmark factories

Core pain points before cooperation

1. The vacuum degree of traditional intermediate frequency melting furnaces is insufficient, resulting in a platinum melting loss of 2.8% and a monthly loss of over 80000 yuan;

2. The density of gravity cast castings is only 96%, with severe internal shrinkage. The service life of thermocouples is less than 6 months, and the customer complaint rate is 30%;

3. Uneven calcination temperature of gypsum molds, casting size deviation of ± 0.02mm, unable to meet the requirements of high-end customers;

4. Traditional mechanical polishing has a loss of 0.8%, and the polishing quality of complex structural components is poor;

5. Without professional quality control equipment, only visual inspection can be carried out, and the outflow rate of unqualified products reaches 15%.

Solution application

Adopting the standard configuration scheme of Yihui Industrial Platinum Palladium Precision Parts Factory, the core implementation content is as follows:

1. Core equipment: 5kg high vacuum medium frequency melting furnace+platinum palladium special vacuum precision casting machine+CNC high-temperature roasting furnace+high-precision vacuum powder mixing machine+precision laser polishing machine+high-temperature argon arc welding machine;

2. Auxiliary equipment: high-pressure gypsum cleaning machine+multi slot ultrasonic cleaning machine+high-precision chiller+direct reading spectrometer+coordinate measuring instrument+industrial grade dust cleaning and polishing table+industrial waste gas treatment system;

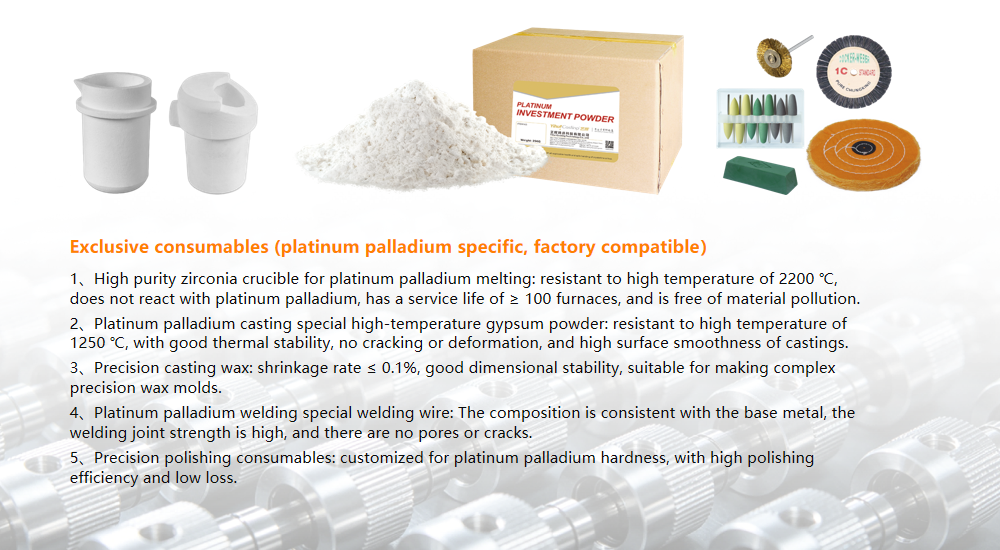

3. Exclusive consumables and tools: complete set of platinum palladium processing consumables, precision shaping tool set, metallographic sampling tool set, non-destructive testing tool set;

4. Technical Empowerment Services: Free 80 ㎡ factory layout planning, on-site equipment installation and debugging, vacuum system calibration, 7-day one-on-one platinum palladium exclusive process training, loss control special training, quality control system construction guidance, and waste recycling technical guidance.

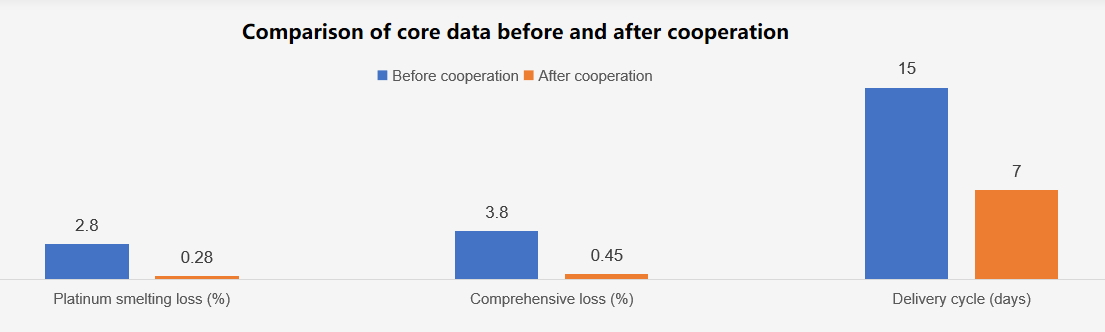

Cooperation landing results

1. The platinum smelting loss decreased from 2.8% to 0.28%, and the comprehensive loss decreased from 3.8% to 0.45%, saving 72000 yuan in monthly loss costs and 864000 yuan in annual savings;

2. The casting has a density of 100%, with no internal defects, and the service life of the thermocouple has been extended to over 18 months. The customer complaint rate has been reduced to 0;

3. The dimensional accuracy of the casting has been improved to ± 0.005mm, and it has successfully passed the supplier certification of a Fortune 500 chemical enterprise;

4. Laser polishing loss reduced to 0.05%, polishing efficiency increased by 5 times, and polishing quality of complex structural components significantly improved;

5. We have established a comprehensive quality control system throughout the entire process, reducing the outflow rate of non-conforming products to below 0.5%;

6. Production efficiency has increased threefold, delivery cycle has been shortened from 15 days to 7 days, and order volume has increased by 200%;

7. Within 2 months, all equipment investment was recovered and we became a well-known supplier of industrial platinum palladium precision accessories in the Yangtze River Delta region.

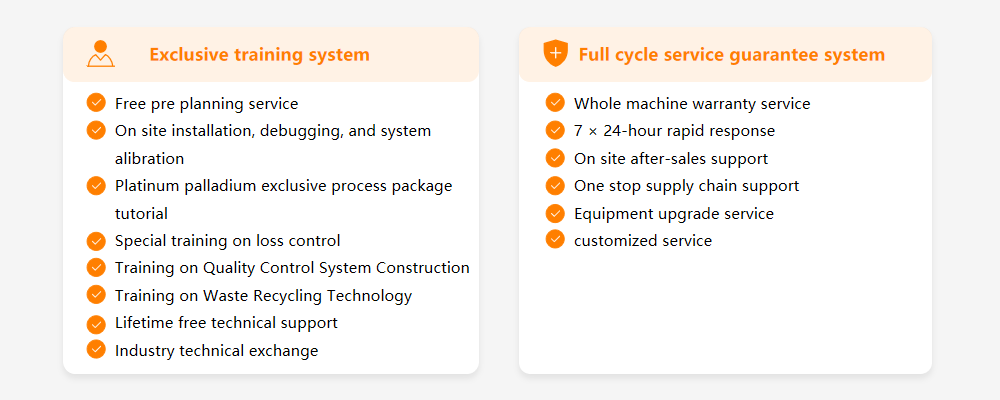

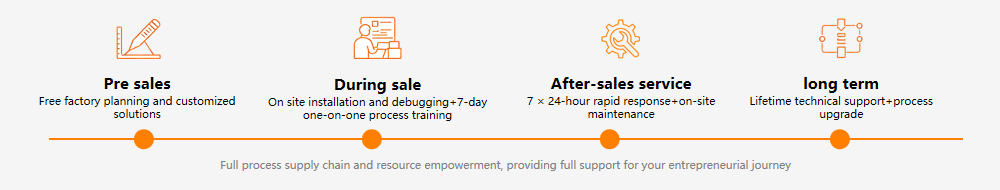

Industrial Platinum Palladium Exclusive Full Process Technical Training and Service Guarantee System

In response to the high threshold and complex process of industrial platinum palladium processing technology, Yihui Casting has created an exclusive training and service guarantee system of "technology+process+quality control", which accompanies the factory throughout the process to solve various technical problems in the production process and ensure the stable operation of the production line.

Contact us to customize a one-stop solution for your exclusive platinum and palladium precision accessory factory

Yihui Casting is deeply engaged in the field of precision processing of platinum and palladium, providing one-stop solutions for building industrial precision accessories for platinum and palladium. We provide full chain supporting services, including project process planning, precision molding equipment matching, on-site guidance and practical technical training. We have a complete range of production equipment and specialized consumables for platinum palladium melting, precision casting, and CNC precision machining, and output standardized production management systems and strict precision quality inspection and control plans. Our professional technical team provides full cycle implementation assistance from factory layout planning, production line layout and debugging to smooth production, efficiently overcoming precision machining difficulties and daily factory operation challenges. Based on years of industrial platinum palladium material processing accumulation, we provide value-added services such as iterative optimization of production processes, intelligent upgrading of production lines, closed-loop recycling of platinum palladium scraps and scrapped parts, etc., to help customers compress the production preparation cycle, strictly control the loss of precious metal raw materials, and steadily improve the yield rate of precision parts and overall production capacity. Whether you are building a new platinum palladium precision processing plant or upgrading an old production line, we rely on mature technology and attentive services throughout the entire cycle to provide full protection. We look forward to working together with global industry partners to promote the recycling of platinum and palladium resources, and to achieve mutual benefit and green sustainable development.
