Gold & Platinum Jewelry Casting Equipment for Independent Studios

Since its establishment in 2003, Yihui Casting has been deeply involved in the field of precision casting for jewelry for 23 years. It has helped over 10000 jewelry factories and designer studios worldwide complete production line construction and process upgrades. Relying on independently developed K gold/platinum dedicated full process precision casting equipment, mature standardized process system, and designer exclusive full cycle empowerment services, Yihui Casting has created a lightweight, zero threshold, low loss, fully closed-loop one-stop solution for K gold/platinum high-end custom studios targeting the core pain points of independent designers.

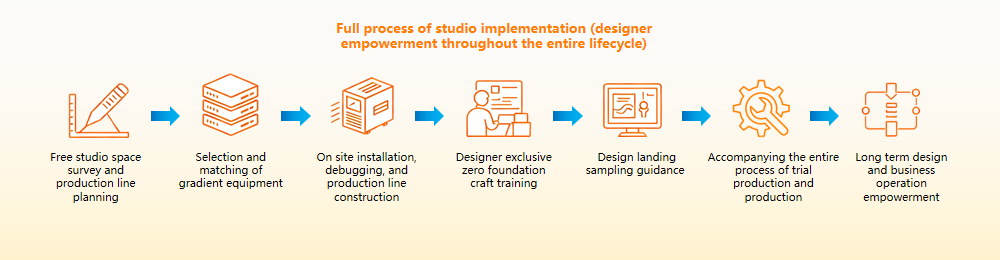

The plan covers the entire process from studio space planning, mini production line construction, equipment matching, K gold/platinum exclusive craft teaching to design implementation and commercial empowerment. It does not require industry craft experience, large-scale site renovation, or high paying hiring of senior technicians. Designers can master core operations from scratch in just 3 days, perfectly adapting to 18K gold/14K gold, PT950/PT900 platinum full materials, covering all categories of wedding ring customization, high-end jewelry, designer brand styles, and IP co branded styles. It also takes into account 1-piece customization and 3-50 piece small batch production scenarios, completely solving the core problem of designer creativity implementation, helping designers achieve independent and controllable creativity, quality control, cost control, and delivery, and creating high premium products. The original designer brand.

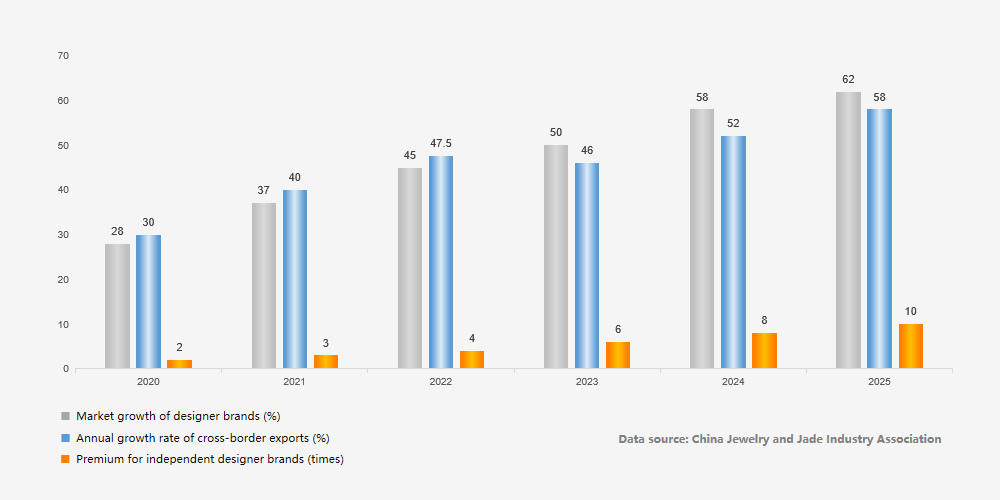

Domestic high-end jewelry customization market has entered a period of explosive growth for designer brands. By 2025, the domestic jewelry customization market will exceed 280 billion yuan, with K gold and platinum high-end customization as the core categories of designer brands and becoming the core engines of industry growth

According to the "White Paper on China's High end Jewelry Customization Industry 2025", the domestic K gold/platinum designer customization market will exceed 76 billion yuan in 2025, with a compound annual growth rate of 31.8%, far exceeding the growth rate of traditional gold products. Independent designer brands will contribute 62% of the market growth.

Small niche designer brands, wedding ring customization, IP co customization, and personalized commemorative jewelry have become core demands. Over 78% of high-end jewelry consumers consider "designer original design" and "exclusive customization" as the core factors in their consumption decisions, and the premium ability of designer brands is 3-10 times higher than that of traditional factory goods.

Cross border e-commerce and social media channels enable independent designer brands to directly reach global consumers. By 2025, the cross-border export scale of designer brand K gold/platinum jewelry will exceed 12 billion yuan, with an annual growth rate of over 58%, becoming the core trend for jewelry cross-border overseas.

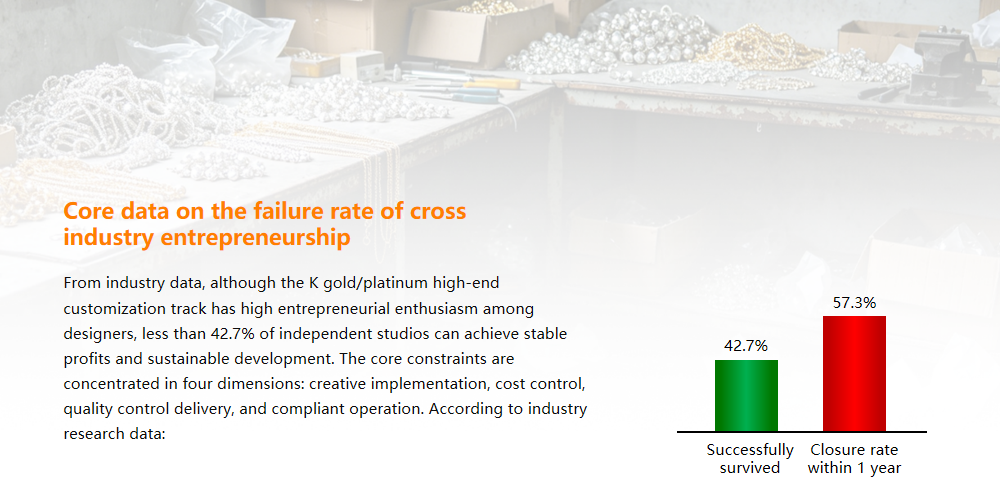

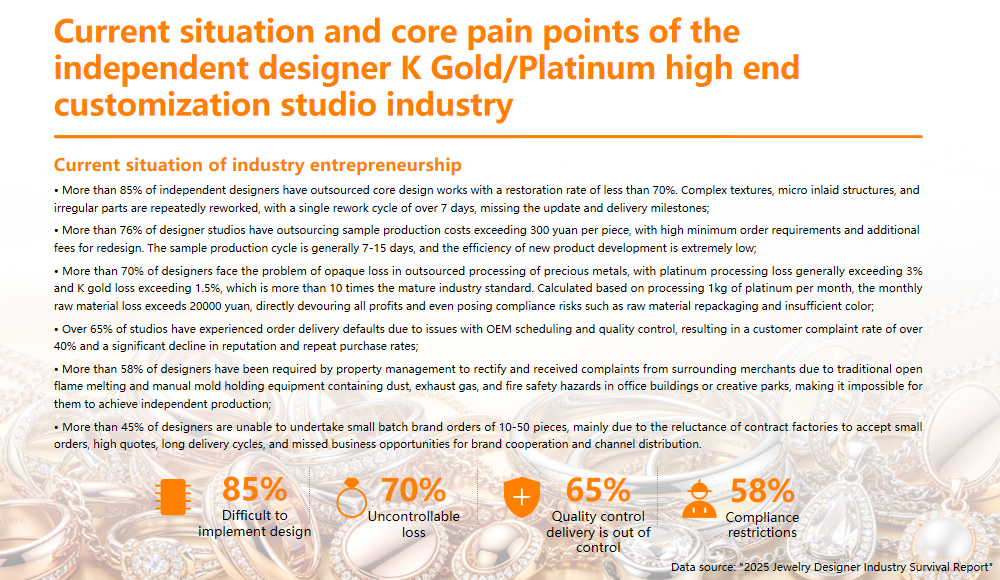

But for independent designers, the barriers from creativity to commercial implementation are extremely high: according to the "2025 Jewelry Designer Industry Survival Report", over 82% of independent designer studios have encountered development bottlenecks within one year of establishment, with a one-year closure rate of 57.3%. The core problems are low design implementation and restoration, out of control quality control of outsourced processing, high sampling costs and long cycles, opaque precious metal losses, limited environmental compliance, and weak ability to undertake small batch orders. More than 90% of designers' core energy is consumed by communication, rework, and quality control issues with contract factories, making it difficult to focus on creative design itself, ultimately falling into a vicious cycle of "good creativity → difficult implementation → poor quality control → poor reputation → low premium".

Outsourcing may be practical during the early stage of a jewelry brand, but it can limit sampling speed, process control and small-batch flexibility. A compact in-house casting setup gives designers greater control over prototype development, alloy handling, production scheduling and finished-product inspection.

Yihui Solution Positioning and Whole Process Logic

Is This Jewelry Casting Solution Right for Your Studio?

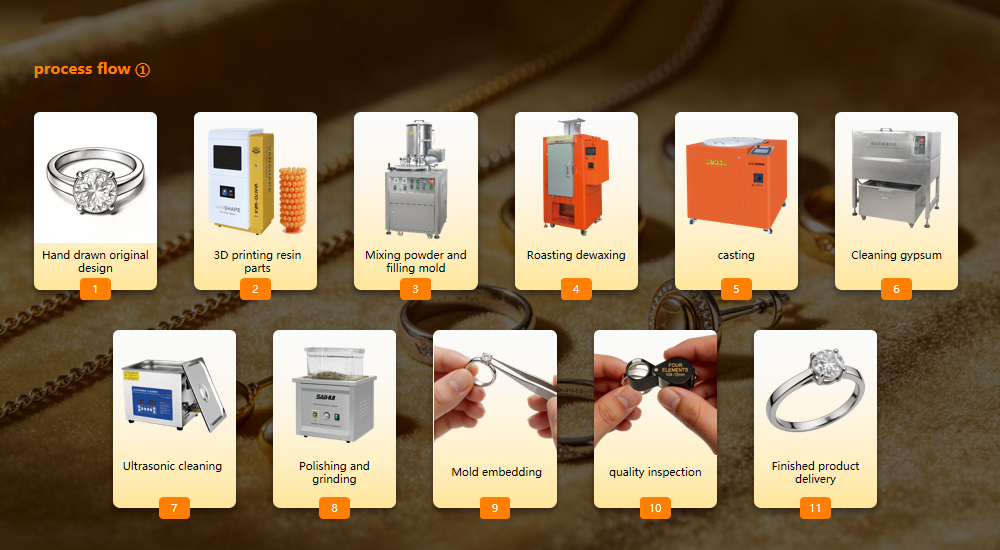

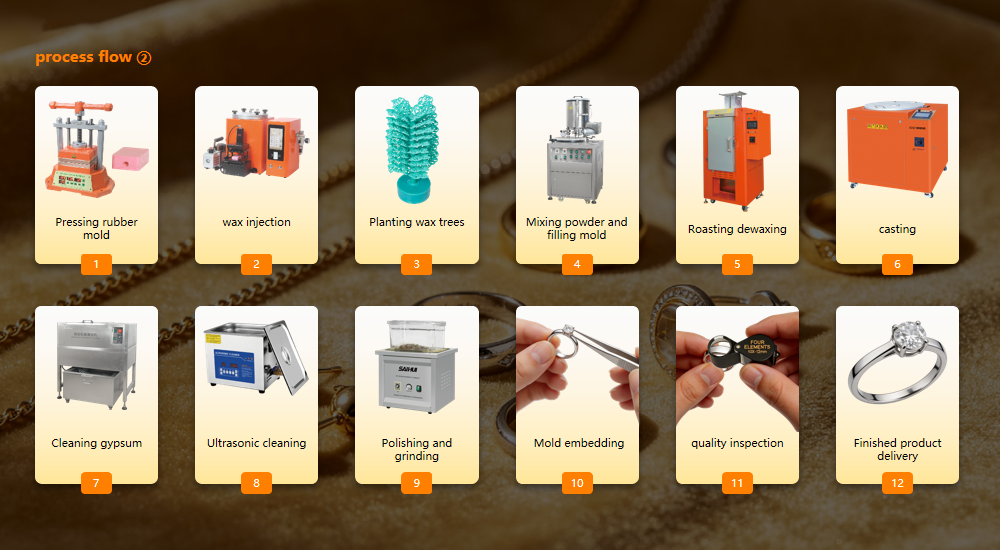

Complete Lost-Wax Jewelry Casting Workflow

A reliable jewelry casting line must coordinate every step from pattern preparation to final inspection. Yihui configures the equipment as one connected workflow according to the customer’s alloy, flask size, casting-tree weight, product detail and required batch frequency.

1. Jewelry Design and 3D Printing

Produce high-resolution castable resin or wax patterns for prototype development and customized jewelry designs.

2. Wax Injection and Tree Assembly

Replicate approved designs for repeated small-batch production and assemble suitable sprue systems.

3. Vacuum Investment Mixing

Prepare investment slurry under vacuum to reduce trapped air and improve mold consistency.

4. Programmable Burnout

Remove wax or resin and prepare the flask using a controlled heating and holding program.

5. Gold or Platinum Casting

Select a compatible vacuum-pressure or centrifugal casting configuration according to the alloy, required temperature, flask size and casting weight.

6. Devesting and Cleaning

Remove investment residue while protecting prongs, recessed structures and fine surface details.

7. Grinding and Polishing

Remove sprues and burrs before magnetic finishing, buffing and ultrasonic cleaning.

8. Metal Analysis and Final Inspection

Verify alloy composition, surface condition, dimensions and casting quality before delivery.

Gold vs Platinum Jewelry Casting Requirements

Do not select a casting machine only by its stated maximum temperature. Alloy compatibility, crucible material, temperature measurement, casting force, flask size and atmosphere control must be evaluated together.

Choose the Right Gold and Platinum Jewelry Casting Line

Core positioning of the three major gradient configurations

Core main equipment (full gradient coverage, K gold/platinum exclusive customized adaptation)

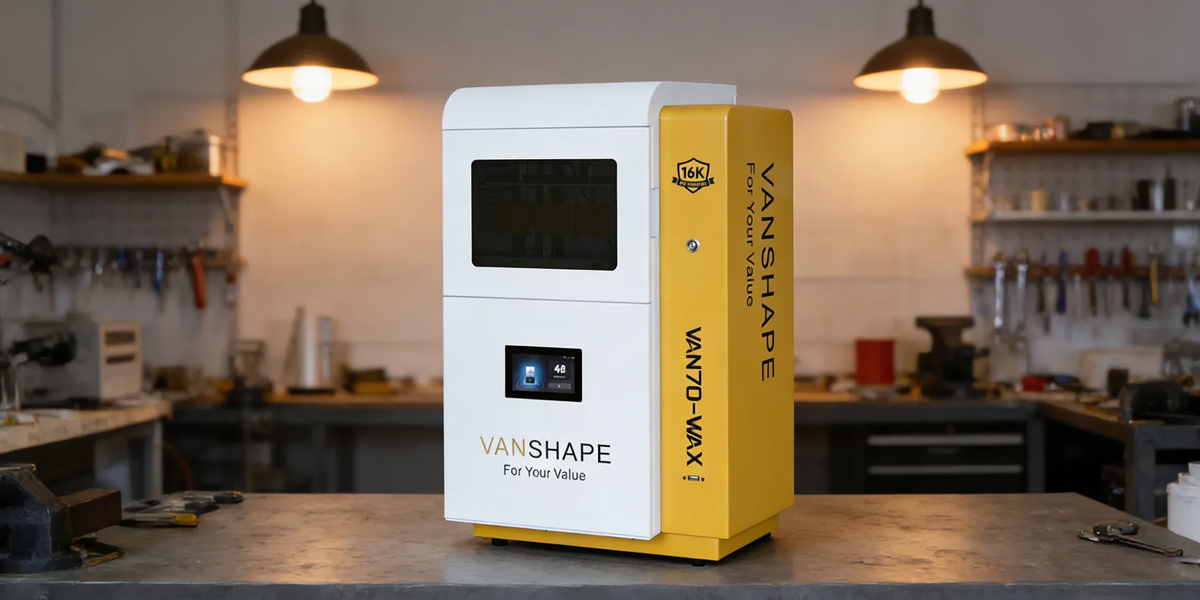

14K/16K-Resolution Jewelry 3D Printer

Adaptation gradient: full gradient adaptation                            Corresponding process stage: Design and release core stage

Core function: Printing K-gold/platinum jewelry wax/resin molds with micrometer level precision, directly used for casting production.

Designer exclusive core value: No need for manual mold carving/outsourcing mold making, single piece sampling cost as low as a few cents, can complete new model sampling in 2 hours, design changes can be quickly remade, completely solving the problems of high mold making cost and long sampling cycle; Free design files for over 10000 high-end K gold/platinum jewelry accessories, with zero entry barriers for quick updates; Perfectly restore complex surfaces, textures, and micro inlaid structures, with a design fidelity of over 99%.

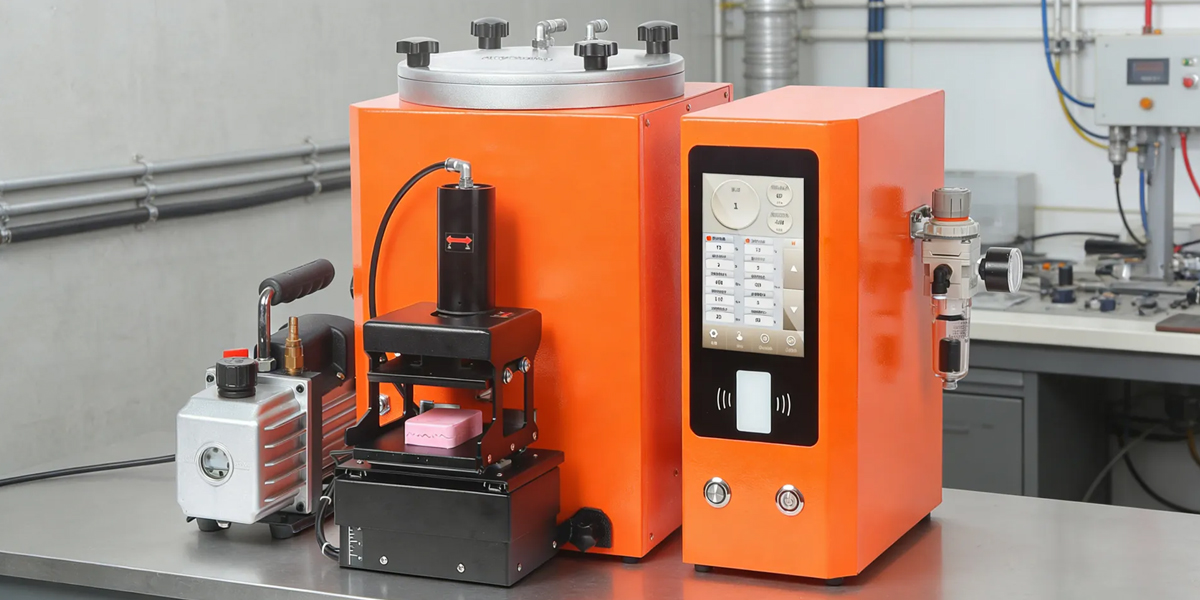

Vacuum Jewelry Wax Injector

Adaptation gradient: standard/high-end configuration                           Corresponding process step: wax injection molding step

Core function: High pressure wax injection under vacuum environment, mass production of standardized wax molds.

Designer exclusive core values: 100% consistency in wax mold size, preset K gold/platinum jewelry standardization parameters, no need for manual wax injection, suitable for small batch order production, new employees can quickly operate, ensuring stable quality of batch orders.

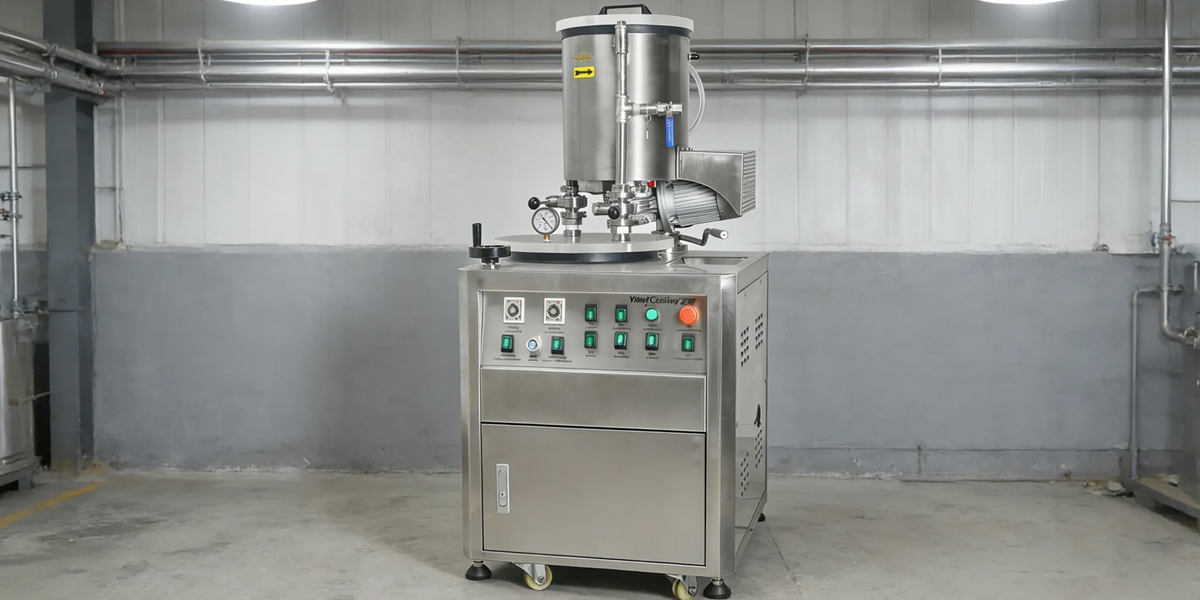

Automatic Vacuum Investment Mixer

Gradient adaptation: full gradient adaptation                                           Corresponding process step: gypsum filling and vacuum pumping step

Core function: Automatically complete the integrated operation of gypsum powder mixing and vacuuming.

Designer exclusive core value: gypsum slurry has no bubbles, avoiding sand holes in K gold/platinum castings from the source. The operation is done in one go, and the efficiency is 5 times higher than manual labor, ensuring consistency of single/batch production molds.

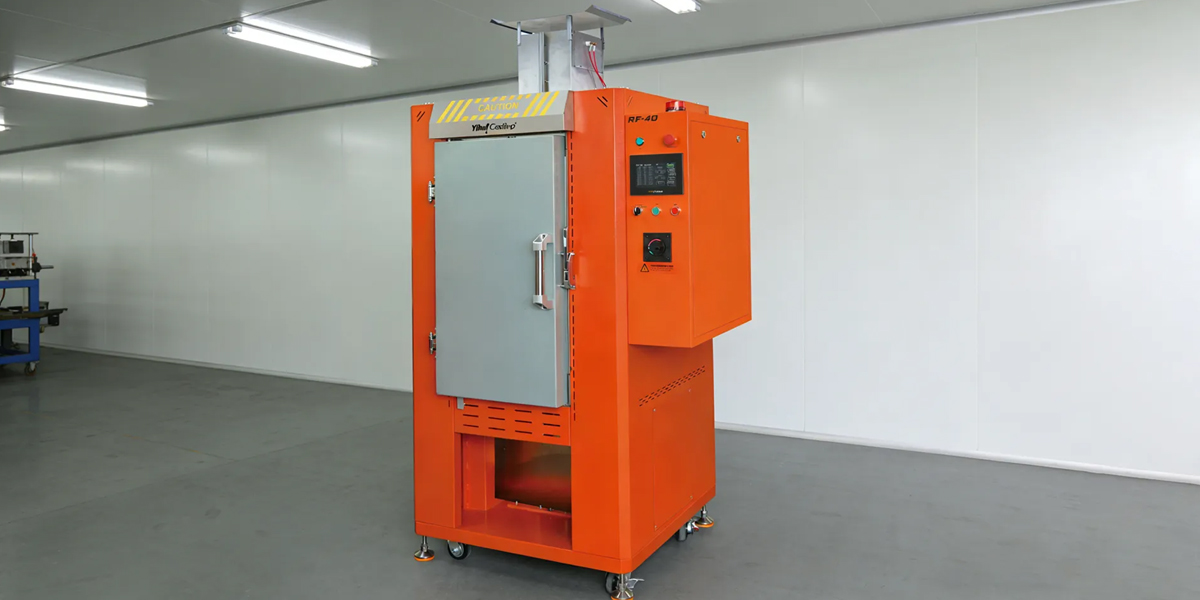

Programmable Jewelry Burnout Furnace

Gradient adaptation: full gradient adaptation                                           Corresponding process step: Gypsum mold roasting step

Core function: Segmented temperature controlled calcination of gypsum molds, completing the entire process of dewaxing, drying, and sintering, with a dedicated platinum high-temperature calcination program.

Designer exclusive core value: Dual temperature control system with temperature control accuracy of ± 1 ℃, avoiding gypsum mold cracking, preset K gold/platinum roasting standardized parameters, no need for manual control, new personnel can operate directly; Adapt to different sizes of gypsum molds, balancing sampling and small-scale production.

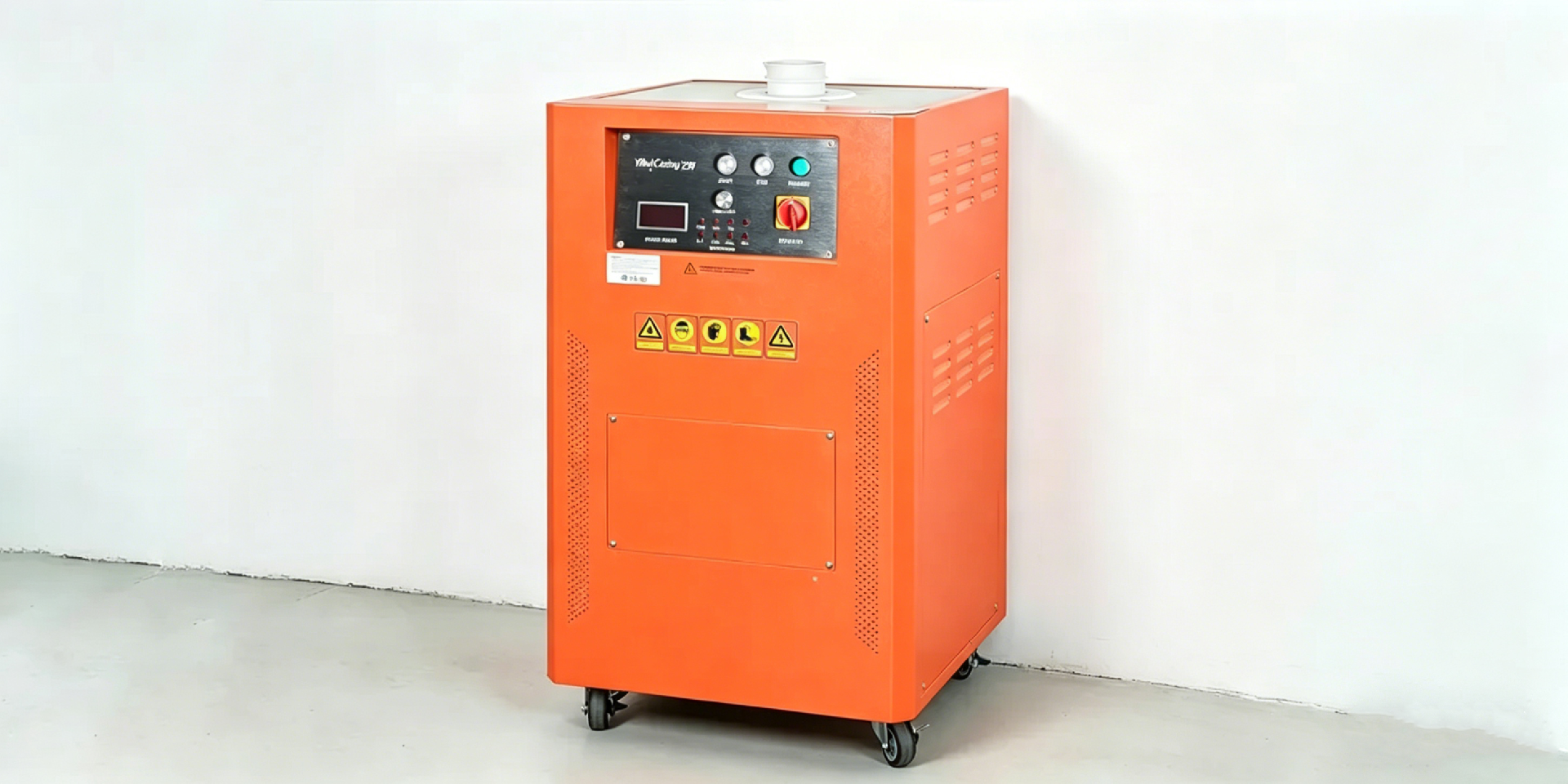

High-Temperature Platinum Melting Furnace

Adaptation gradient: full gradient adaptation                                          Corresponding process step: Raw material melting step

Core function: Quickly melt precious metals such as platinum and K gold, precise temperature control melting, and exclusive platinum high-temperature melting program.

Designer exclusive core value: rapid heating by induction heating, platinum melting can be completed in 5 minutes, with a metal loss rate of less than 0.1%; Equipped with dual safety protection covers, the closed melting process is flame free and safe for use in office buildings/creative parks, completely avoiding the safety hazards of manual melting. It is suitable for small and multi batch melting needs in studios.

Vacuum Centrifugal Jewelry Casting Machine

Adaptation gradient: full gradient adaptation                                            Corresponding process steps: melting and casting

Core function: Complete K gold/platinum precious metal melting and pressure pouring under vacuum environment, one click fully automatic operation, exclusive platinum high-temperature melting program.

Designer exclusive core value: replacing traditional gun melting and manual pouring, oxygen free melting without oxidation, perfectly adapting to the high melting point characteristics of platinum gold, and increasing the yield rate of K gold/platinum castings to over 98%; One click operation, designers can master it in one day, completely solving the core problem of no casting technicians; Suitable for all materials of K gold and platinum, balancing single piece sampling and small batch production, with 1:1 restoration of casting details in the design draft.

Magnetic Jewelry Polishing Machine

Adaptation gradient: full gradient adaptation                                             Corresponding process step: surface polishing step

Core function: Fully automatic surface grinding and polishing of K gold/platinum jewelry, removing burrs and improving smoothness.

Designer exclusive core value: replacing traditional manual rough polishing, newcomers can quickly operate, and efficiency is increased by 5 times; Jewelry gaps, fine pores, and micro inlays can be uniformly polished without the need for experienced polishing technicians, completely solving the technical dependence in the polishing process and perfectly preserving design details.

Supporting auxiliary equipment (full process closed-loop coverage, exclusive adaptation for K gold/foot silver production)

High-Pressure Jewelry Devesting Machine

Core function: Built in high-pressure water gun to quickly remove residual gypsum powder from castings.

Designer studio adaptation value: It does not damage the fine texture of K gold/platinum jewelry, the sand cleaning efficiency is three times that of manual labor, the operation is simple, and the designer can complete it without additional skills.

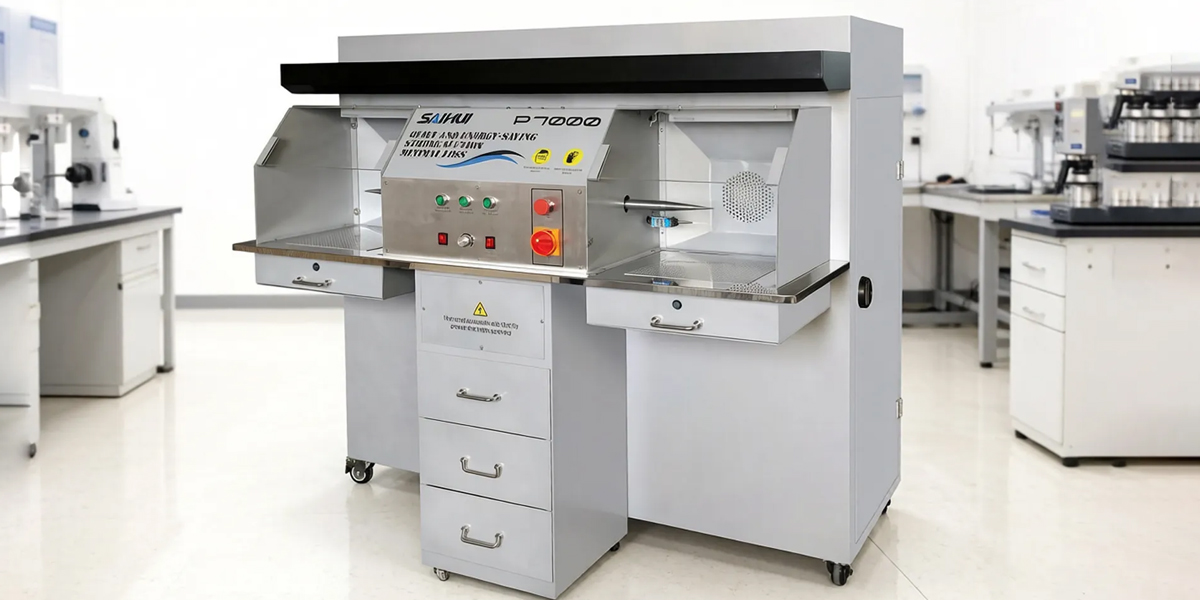

Jewelry Polishing Bench with Dust Collection

Core function: High horsepower vacuum cleaner, low noise, suitable for fine mold holding on K gold/platinum jewelry surfaces.

Designer Studio Adaptation Value: Equipped with dust recycling function, no dust overflow, environmentally compliant, desktop design does not take up space, suitable for small site use, avoiding property complaints and environmental risks caused by dust pollution.

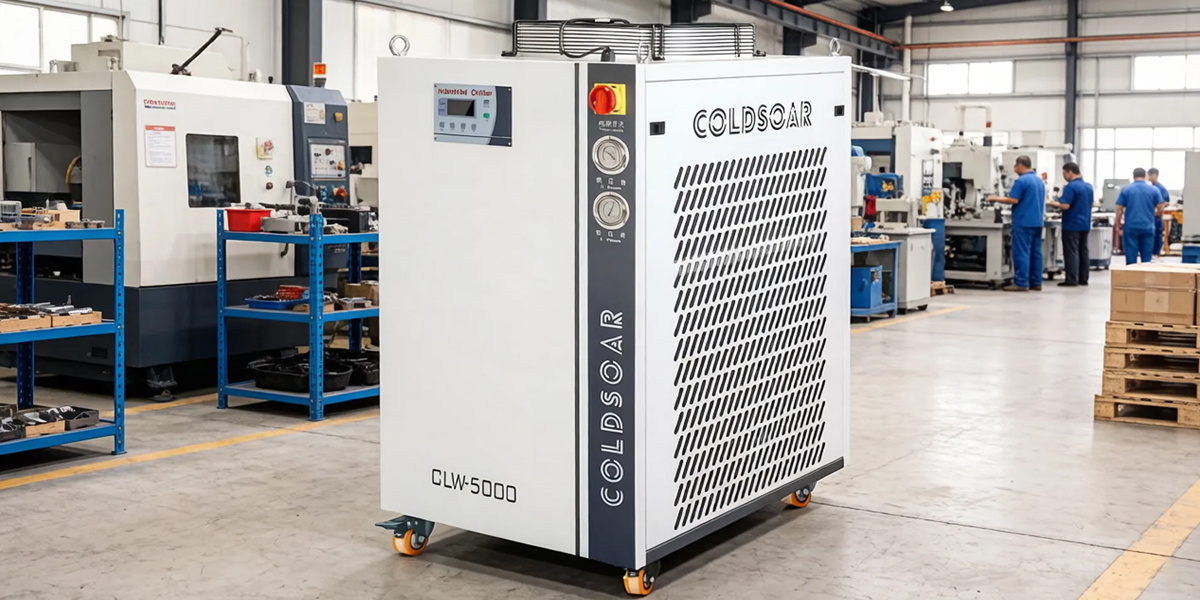

Programmable chiller

Core function: Accurately control the water temperature of the casting machine to ensure stable operation of the equipment.

Designer Studio Adaptation Value: Extend equipment lifespan, adapt to continuous production needs of K gold/platinum, reduce equipment failure risk, ultra quiet operation, and adapt to quiet environments in office buildings/studios.

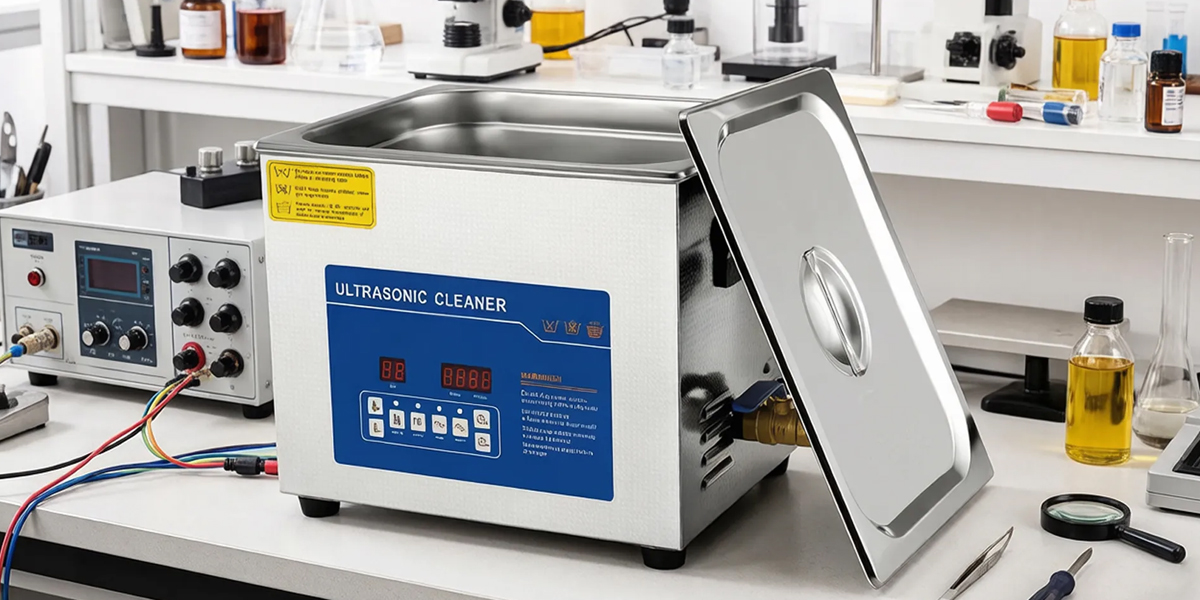

Ultrasonic cleaning machine

Core function: Ultrasonic cleaning of finished/semi-finished K gold/platinum jewelry to remove surface impurities, oil stains, and polishing residues.

Designer studio adaptation value: no dead corners in cleaning, no damage to the surface and fine texture of jewelry, improving the texture of finished products, simple operation without experience, suitable for single piece/small batch cleaning needs.

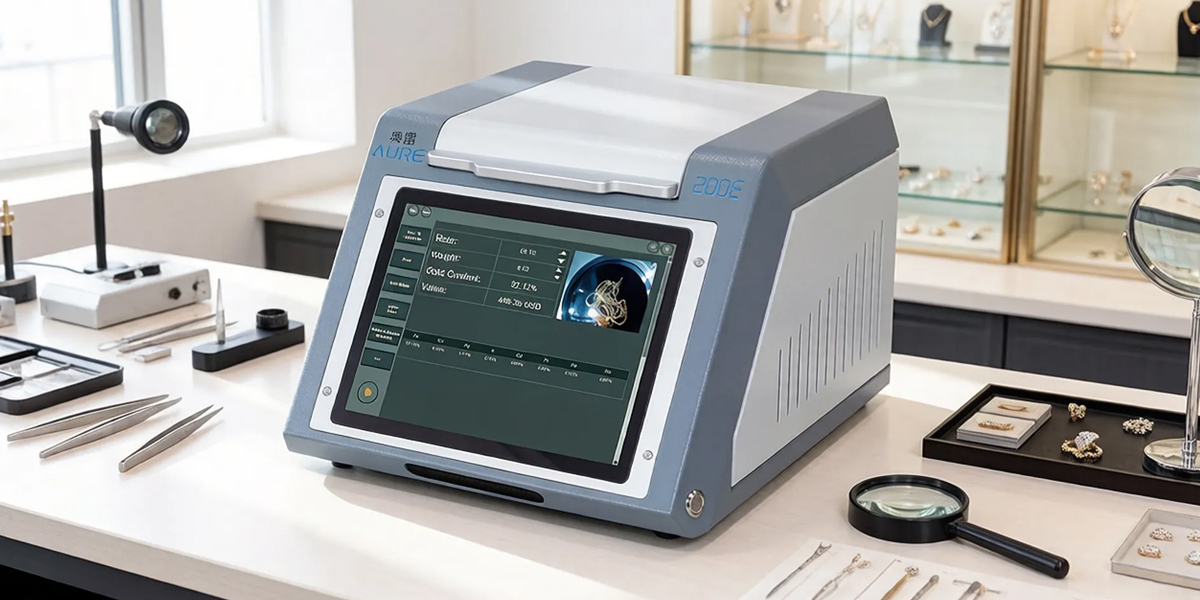

High precision metal spectrometer

Core function: Quickly detect the composition and purity of K gold/platinum precious metals, with an accuracy of 0.001%.

Designer studio adaptation value: 0.5 seconds to quickly produce test results, ensuring that the quality of raw materials and finished products meets the standard, avoiding the risk of raw material adulteration and packaging adjustment, and adapting to the quality inspection requirements of high-end customized orders. It is the core essential equipment for studio K gold/platinum color control, providing customers with authoritative color protection.

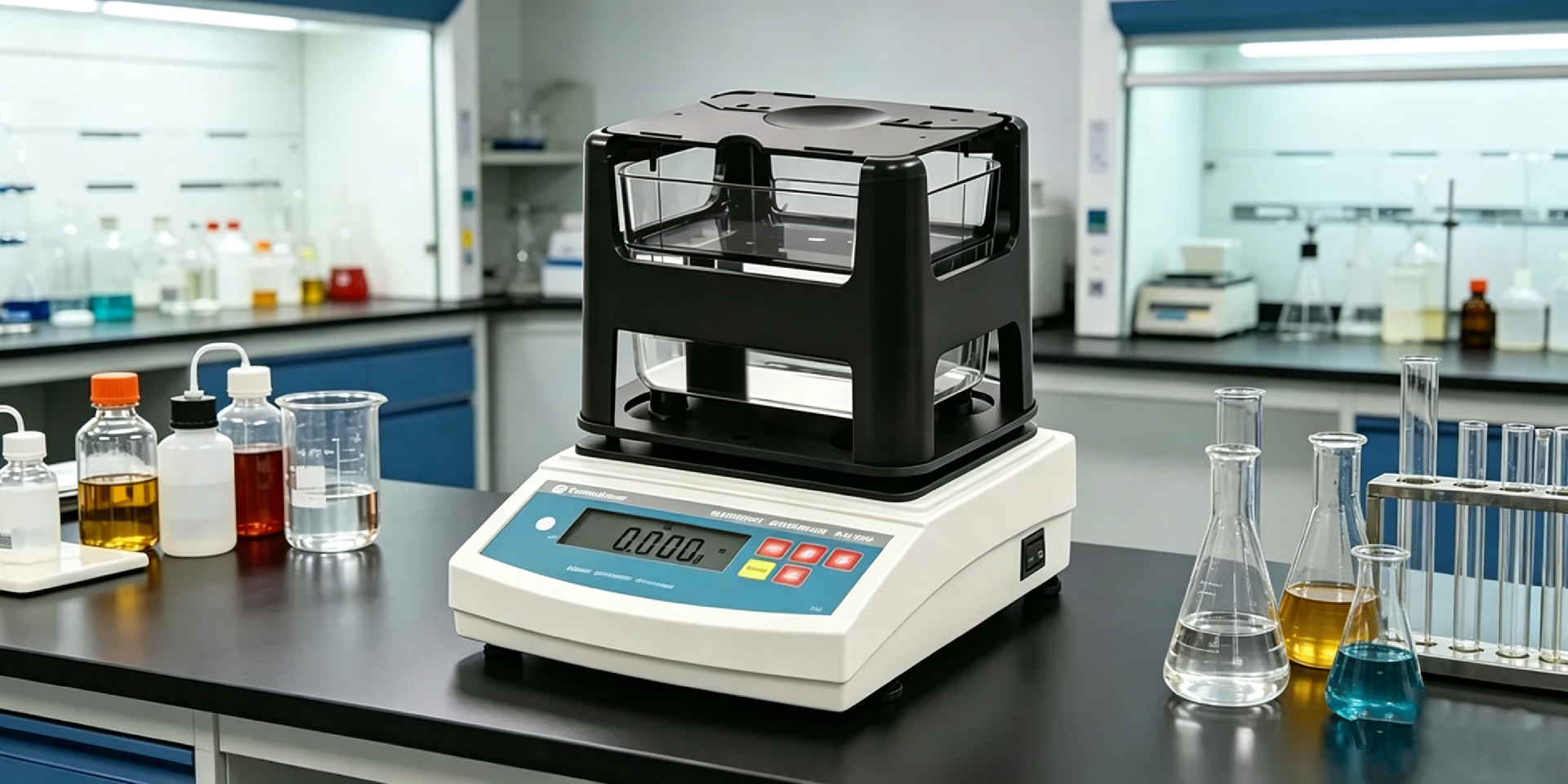

Water specific gravity analyzer

Core function: Quickly detect the color of K gold/platinum precious metals, with zero basis operability.

Designer Studio Adaptation Value: Start up teams can quickly verify the quality of precious metals without the need for professional knowledge, avoiding the risk of raw material procurement and forming dual color control with spectrometers, providing customers with dual protection.

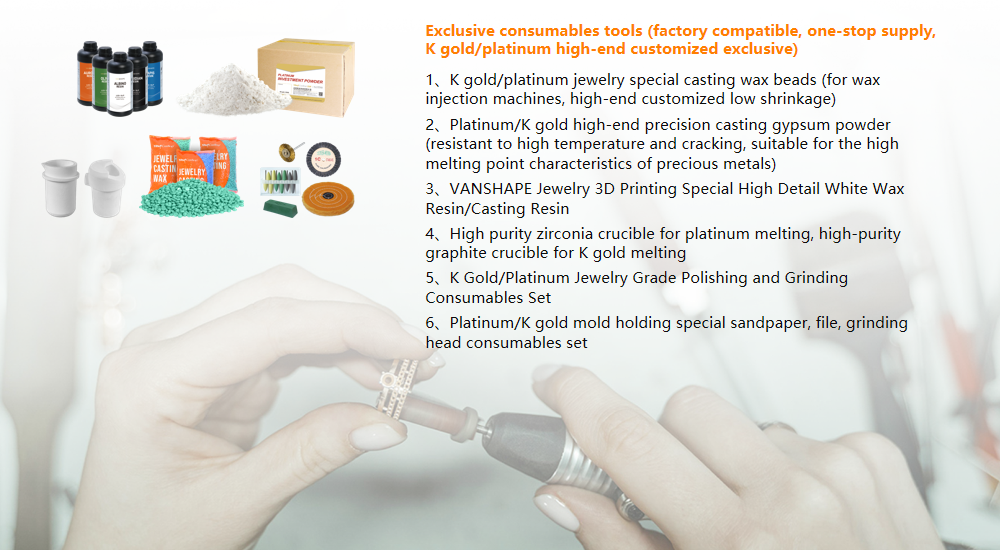

Exclusive consumables tools (factory compatible, one-stop supply, K gold/platinum high-end customized exclusive)

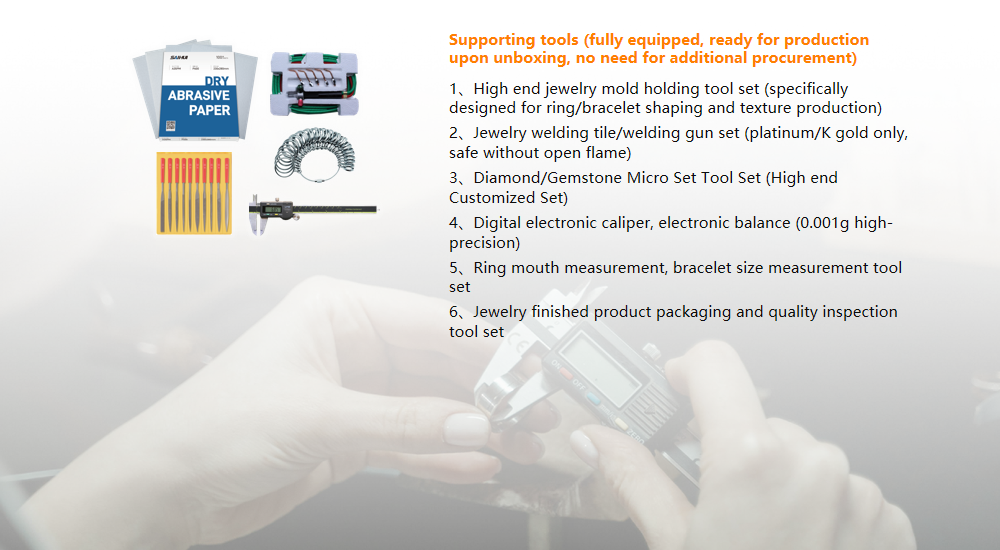

Supporting tools (fully equipped, ready for production upon unboxing, no need for additional procurement)

Solution application

Adopting the standard customized configuration plan of independent designer K Gold/Platinum high-end customization studio of Yihui, the core configuration and services are as follows:

1. Core equipment: Centrifugal casting machine+VAN70-WAX 16K high-precision jewelry 3D printer+High temperature rotating electric furnace+Magnetic polishing machine+Platinum melting machine;

2. Auxiliary equipment: vacuum wax injection machine, vacuum powder mixer, mini high-pressure cleaning machine, industrial grade vacuum polishing table, high-precision mini precious metal spectrometer, water specific gravity gold analyzer;

3. Supporting Services: Free 25 ㎡ creative park studio production line planning, 3-day on-site installation and debugging, one-on-one designer exclusive zero foundation craft training, K gold/platinum wedding ring exclusive craft parameter package, 1000+wedding ring/high-end jewelry design file empowerment, one-stop supply of consumables, designer brand channel resource docking.

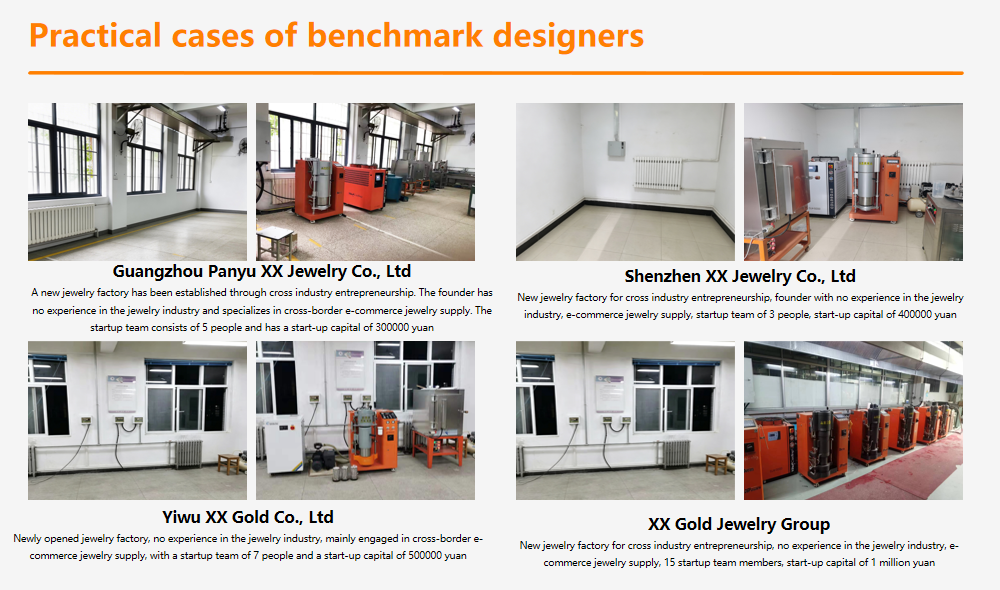

Cooperation landing results

1. Zero based designer completed production in 3 days and achieved stable mass production within 1 week. The design draft to finished product restoration rate increased to 99.2%, and there were no customer returns due to design implementation issues. Customer satisfaction increased to 100%;

2. The sampling cost has been reduced from 400 yuan/piece to 3.2 yuan/piece, the sampling cycle has been shortened from 10 days to 2 hours, the new product development cycle has been shortened from 20 days to 3 days, and we have successfully seized the Valentine's Day and 520 marketing nodes, resulting in a 6-fold increase in holiday order volume;

3. Platinum processing loss decreased from 4.2% to 0.18%, K gold loss decreased to 0.15%, saving over 20000 yuan in raw material costs in a single month, and the net profit margin of the product increased from less than 10% to 38%;

4. The delivery cycle for customized orders has been shortened from 15 days to 48 hours, the customer complaint rate has decreased to 0, and the repurchase rate has increased from 12% to 68%, accumulating a large number of stable high-end private domain customers;

5. The complete set of equipment is environmentally friendly and compliant, meeting the property and environmental requirements of the creative park. There are no open flames, dust, or odors, and the 25 square meter space achieves a complete production loop, fully realizing independent and controllable production;

6. Successfully undertaken small-scale brand orders for jewelry collection stores and high-end wedding salons, with monthly bulk order revenue exceeding 150000 yuan. Upgraded from a single wedding ring customization to a dual profit model of "high-end customization+brand bulk supply";

7. Within 5 months of production, all equipment investment was recovered, and within 1 year, the studio team expanded from 3 to 8 people, and the venue expanded from 25 square meters to 80 square meters, creating a well-known original wedding ring designer brand in the Shenzhen region.

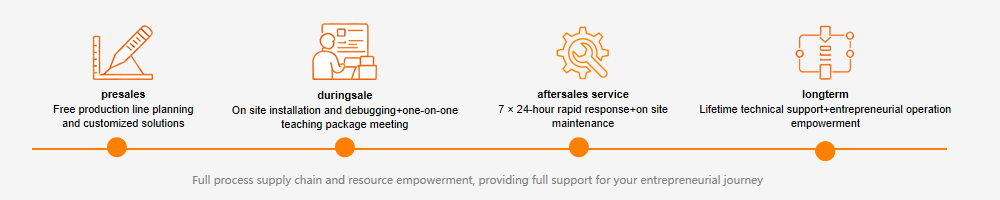

Installation, Casting Training and Technical Support

Yihui supports customers from equipment selection through workshop commissioning. The service scope is confirmed according to the equipment package, destination and customer production requirements.

·  Equipment configuration based on alloy, flask and production requirements

·  Workshop layout and utility planning

·  Equipment installation and commissioning guidance

·  Operator training for investment, burnout, melting and casting

·  Initial casting-parameter setup

·  Casting defect analysis and troubleshooting

·  Spare parts and consumables support

·  Remote technical assistance and available on-site service

Contact us to customize your exclusive K gold/platinum high-end customization solution

Yihui Casting is deeply involved in the precious metal jewelry industry and is a professional pioneer in the field of high-end jewelry customization. Based on years of experience in processing K gold and platinum materials and customizing high-end jewelry, we have built an integrated high-end customization service system. A professional team combines market aesthetics and personalized needs to tailor exclusive customized solutions for customers, covering creative design implementation, precision casting technology, texture and detail polishing, customized technical guidance, and comprehensive after-sales support. Empower high-end jewelry customization business with mature craftsmanship, help brands shape unique aesthetic styles, build differentiated core competitiveness, work together to open up a new pattern of high-end customization, and create a long-term win-win cooperation future.

For more information about Yihui Casting Technology Co., Ltd., please visit our official website or contact our team.

website: www.yihuicasting.com      email : info@yihuicasting.com     whatsapp : +86-13802830498

Frequently Asked Questions

Can one casting line process both gold and platinum?

Some supporting equipment can be shared, but the melting and casting configuration must be verified for the actual alloy. Platinum requires a higher-temperature system, compatible crucibles, suitable temperature measurement and appropriate casting force.

Should I choose vacuum-pressure or centrifugal casting?

Vacuum-pressure casting is commonly selected for gold, karat gold and silver jewelry. Centrifugal casting is often selected for platinum and other high-temperature or lower-fluidity alloys. Final selection depends on the alloy, flask, casting weight and jewelry geometry.

What equipment is essential for a small jewelry casting studio?

A practical setup normally includes pattern-making or 3D-printing equipment, an investment mixer, a burnout furnace, a compatible melting and casting machine, devesting equipment and basic finishing tools.

What information is needed before configuring the equipment?

Please provide the alloy, normal and maximum casting weight, flask size, batches per day, most difficult design, available voltage, cooling conditions, protective gas and workshop dimensions.

Can the production line be expanded later?

Yes. A studio can begin with essential casting and finishing equipment, then add wax injection, higher-capacity burnout, additional polishing systems or metal analysis equipment as production increases.

Do you provide installation and operator training?

Installation, commissioning, remote guidance, operator training and process support can be provided according to the selected equipment package and project location.
