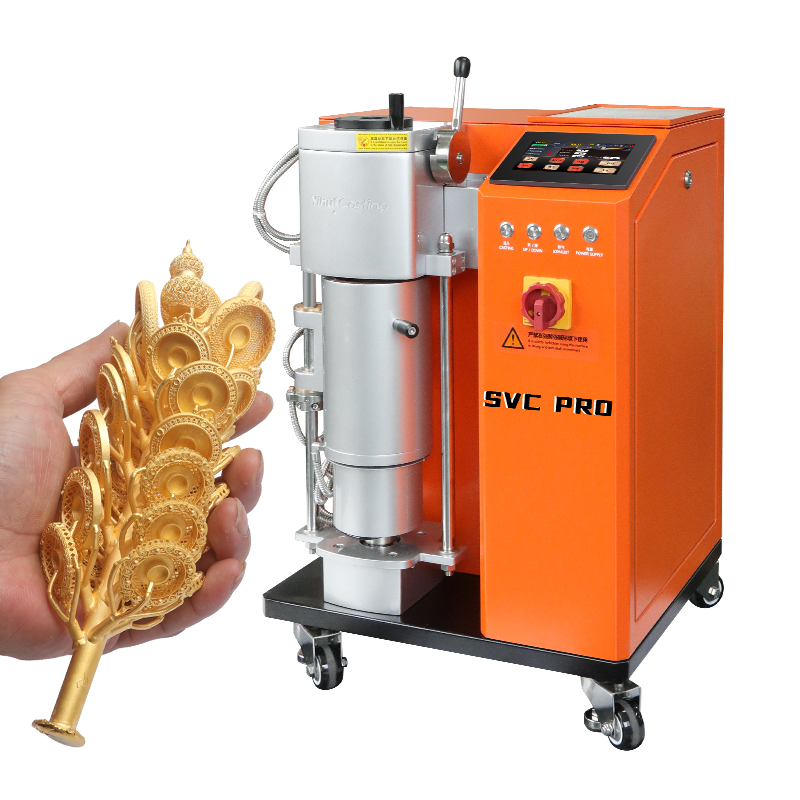

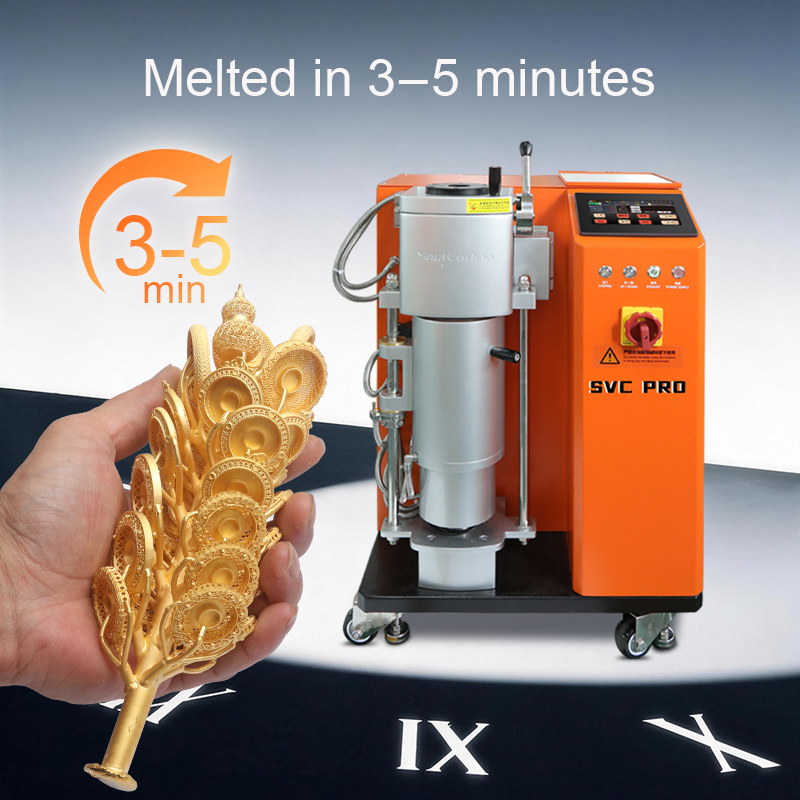

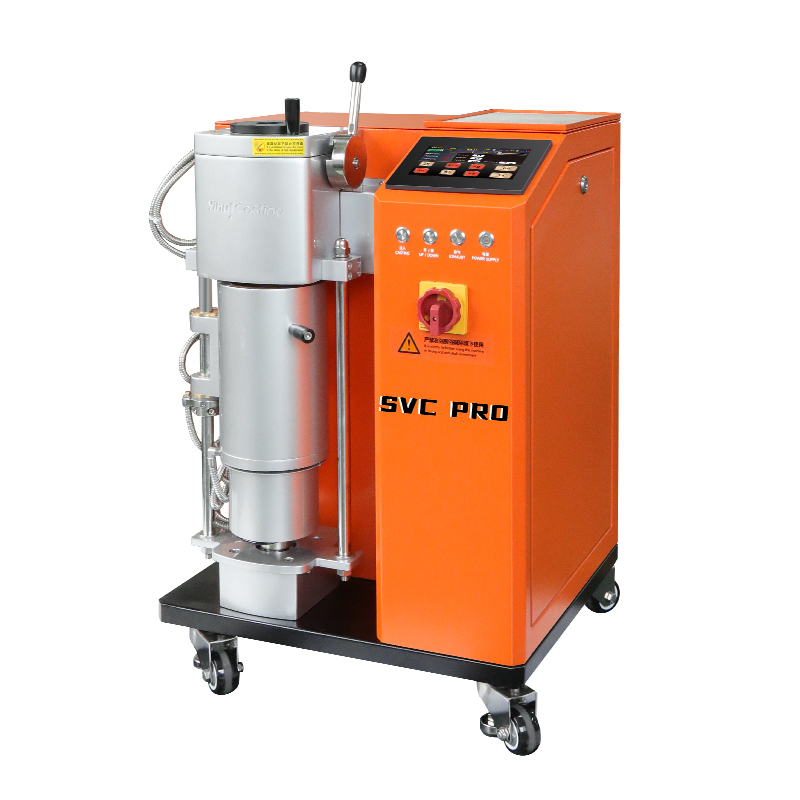

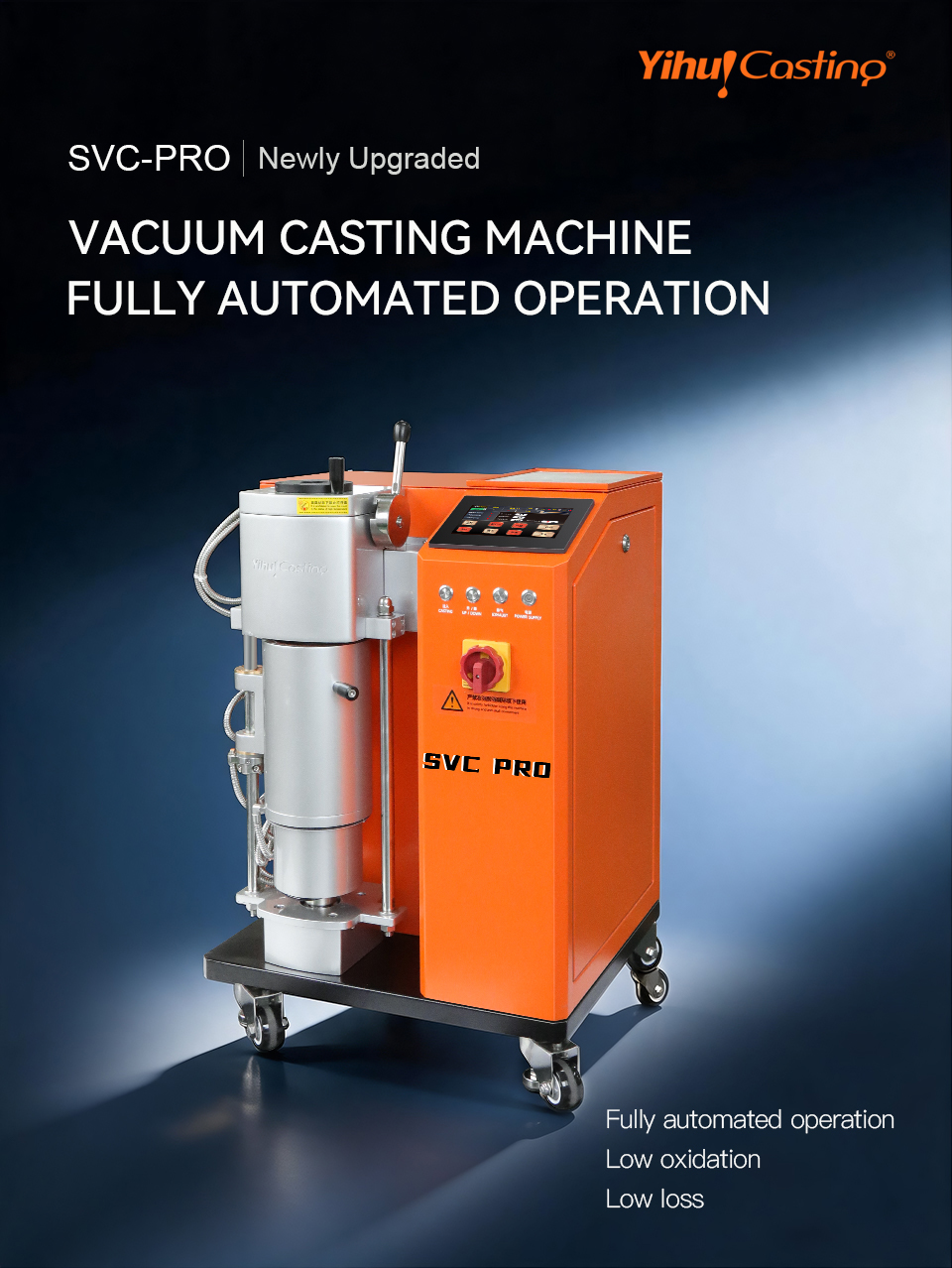

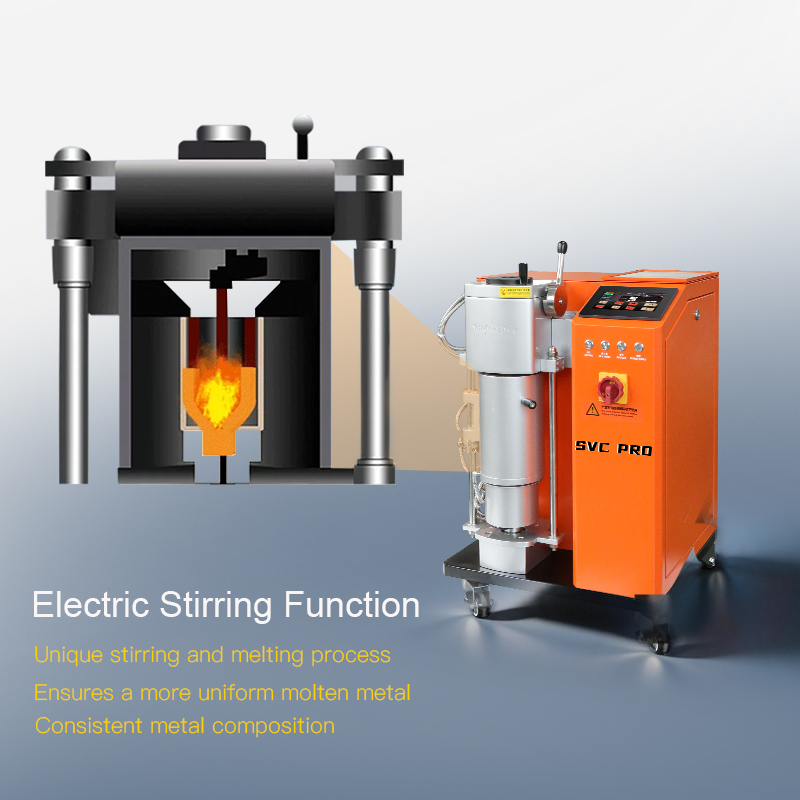

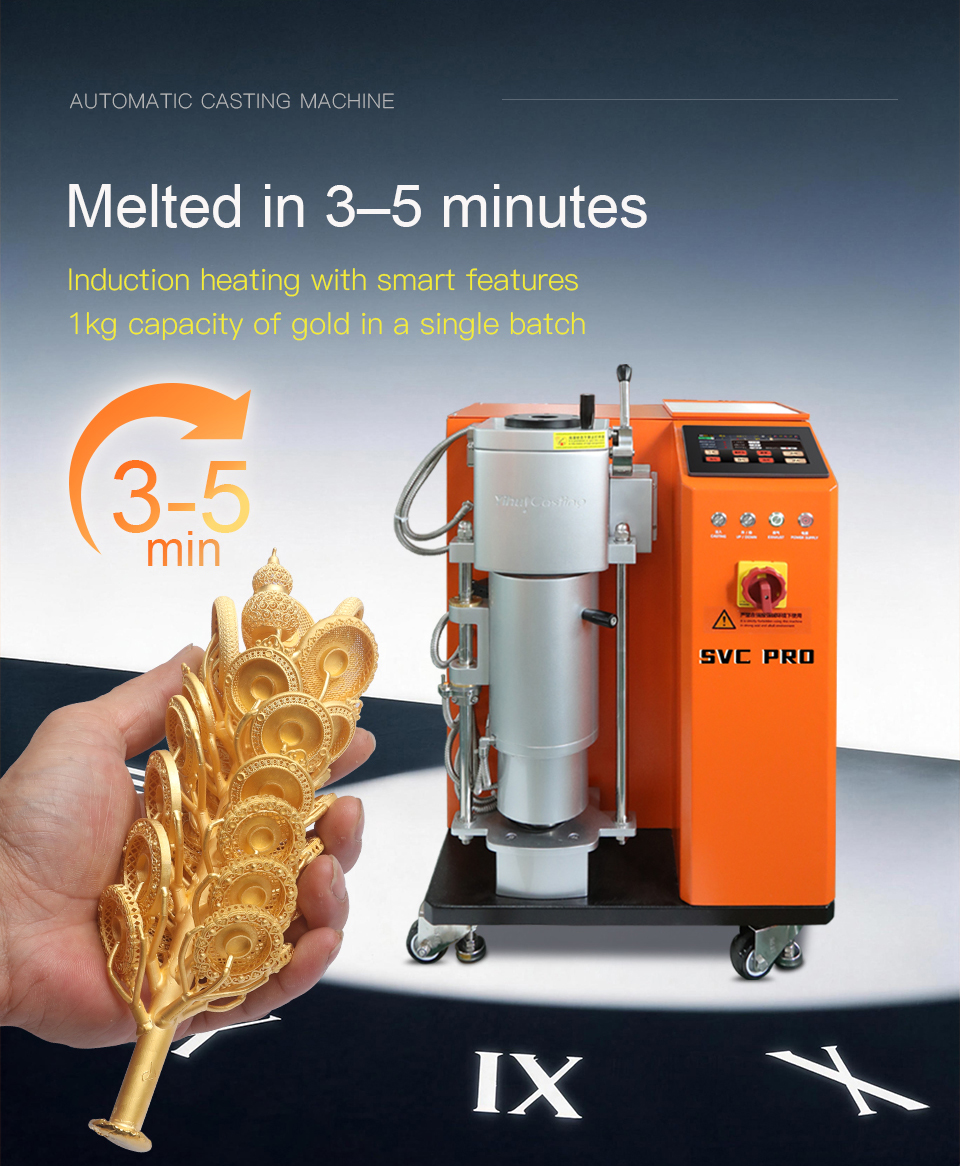

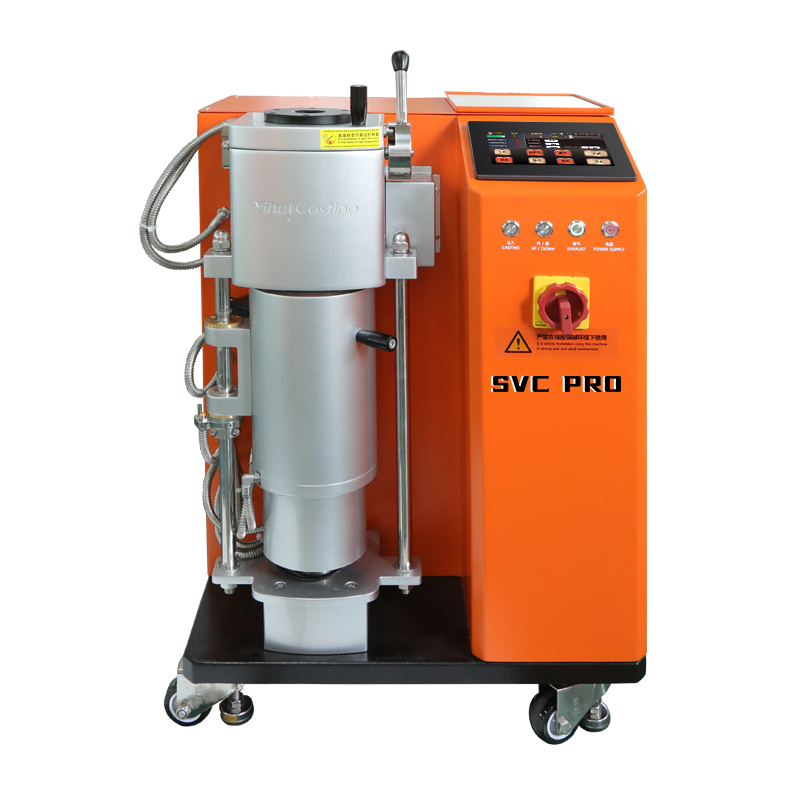

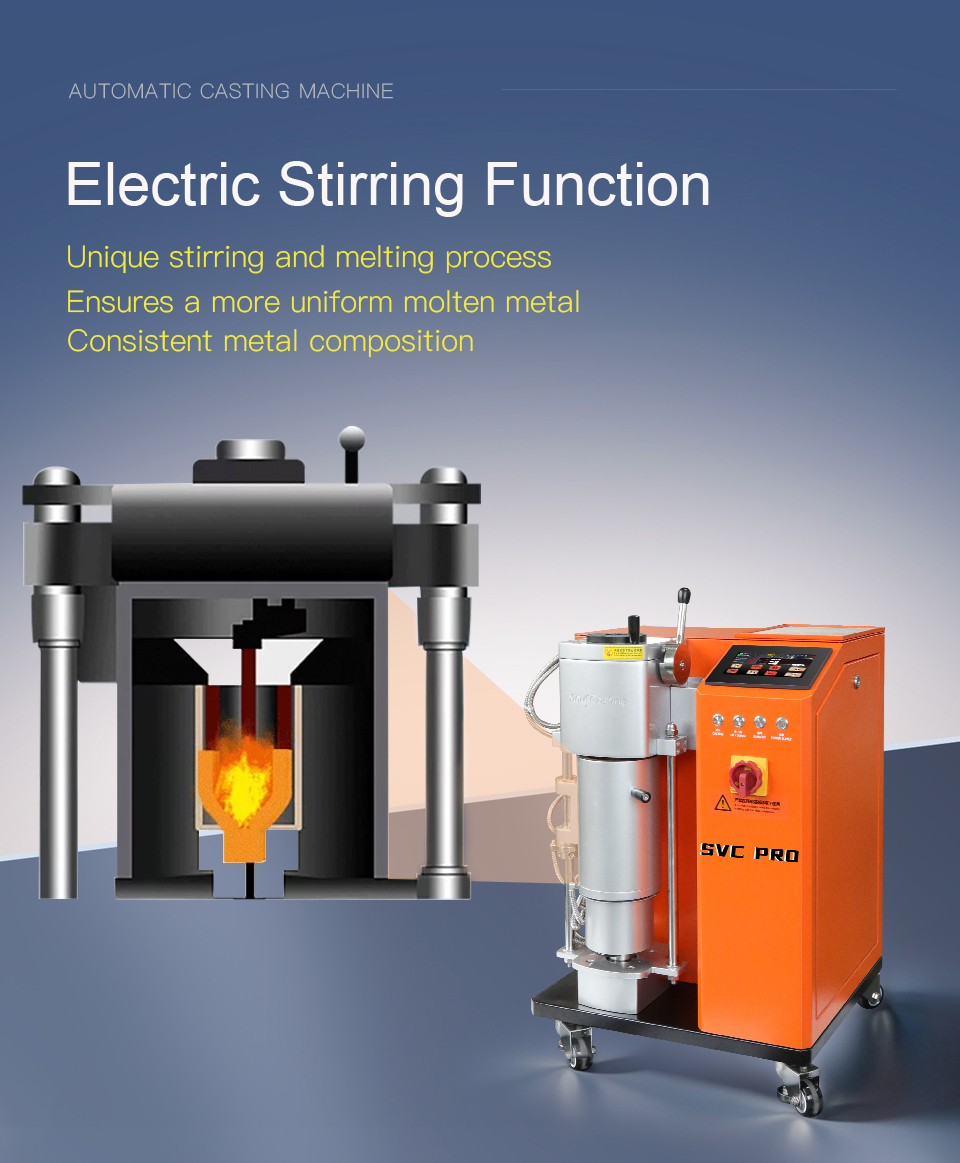

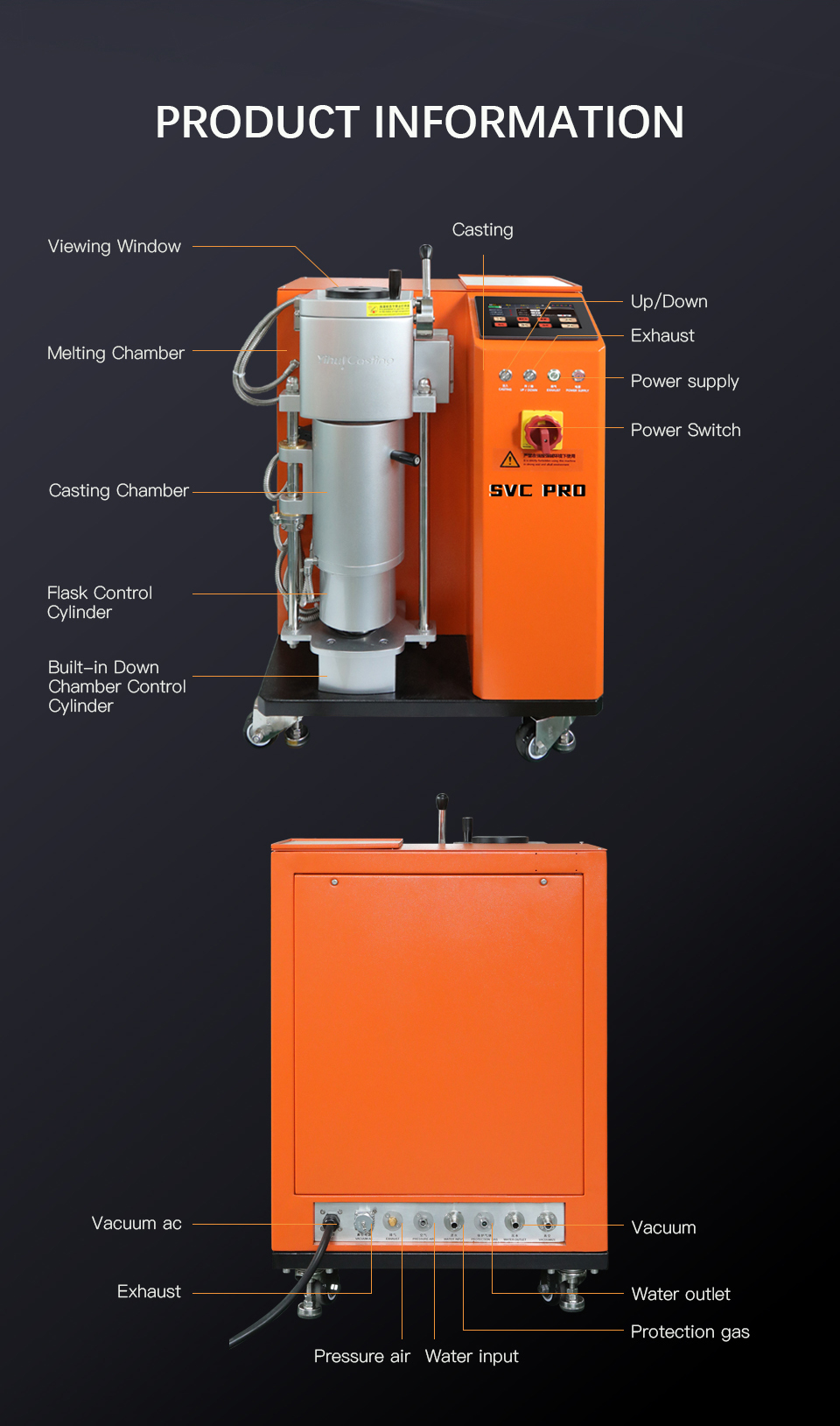

SVC‑PRO vacuum pressure casting machine integrates melting,vacuum pumping and pressure casting,suitable for precious metal jewelry production of gold,silver,k‑gold and copper.With high‑vacuum environment and inert gas protection,it reduces metal oxidation loss and improves casting density.It fits small‑medium jewelry factories and workshops,with stable operation,process adjustment support and complete after‑sales technical support.

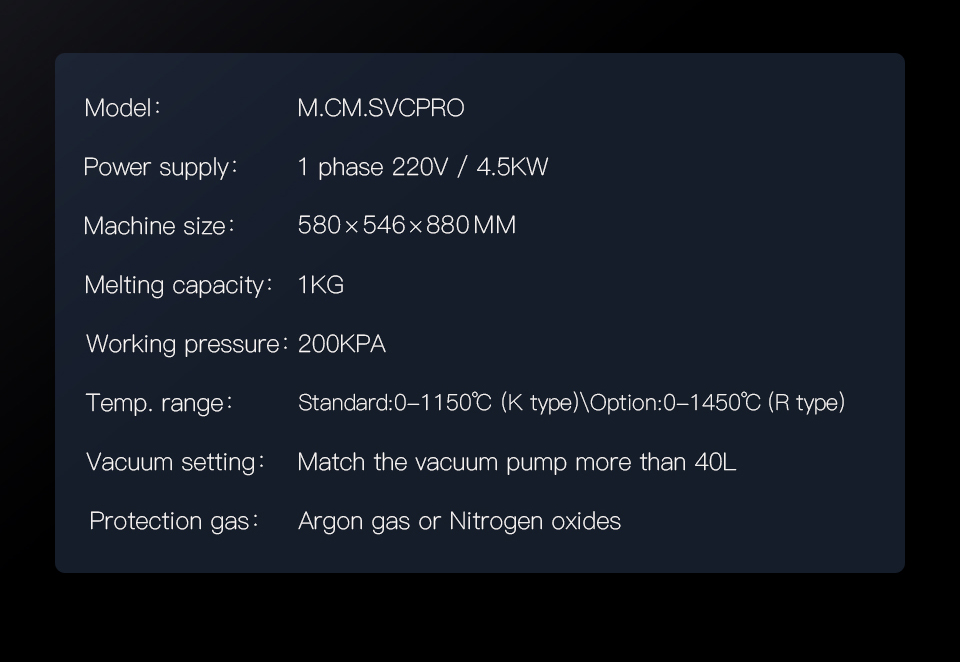

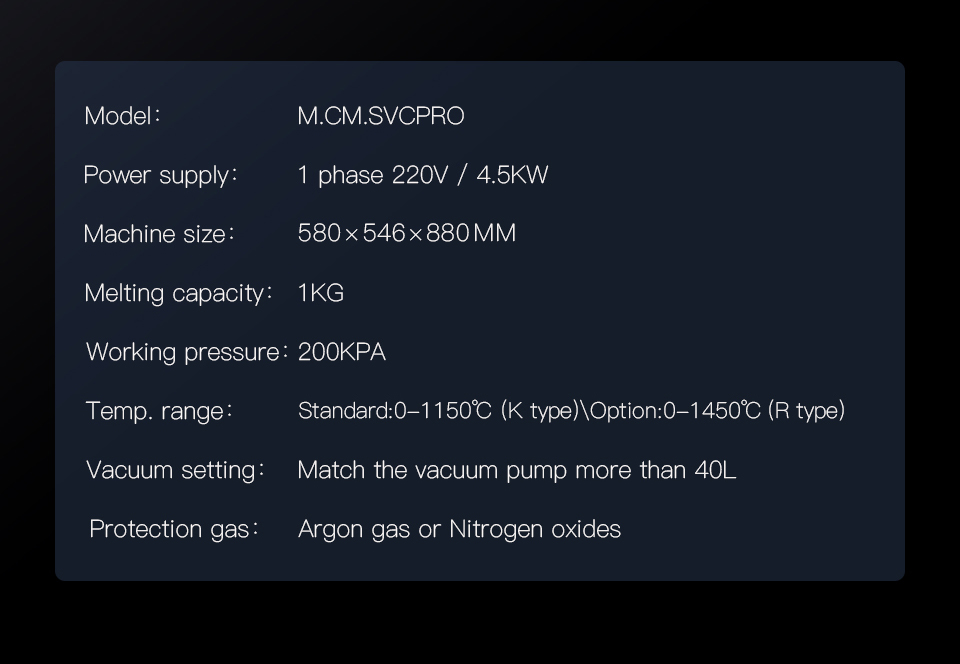

| Equipment name: | Vacuum die-casting machine |
| Equipment model: | M.CM.SVC PRO |
| Working power supply: | single-phase 220V/4.5KW |
| Equipment size: | 580 × 546 × 880mm |
| Maximum casting capacity: | 1KG (gold) |
| Standard temperature measurement: | K-type temperature measurement, up to 1150 ℃ |
| Vacuum pump configuration: | 40L and above high flow vacuum pump |
| Protective gas: | universal for argon/nitrogen |
| Working pressure: | 200KPa |

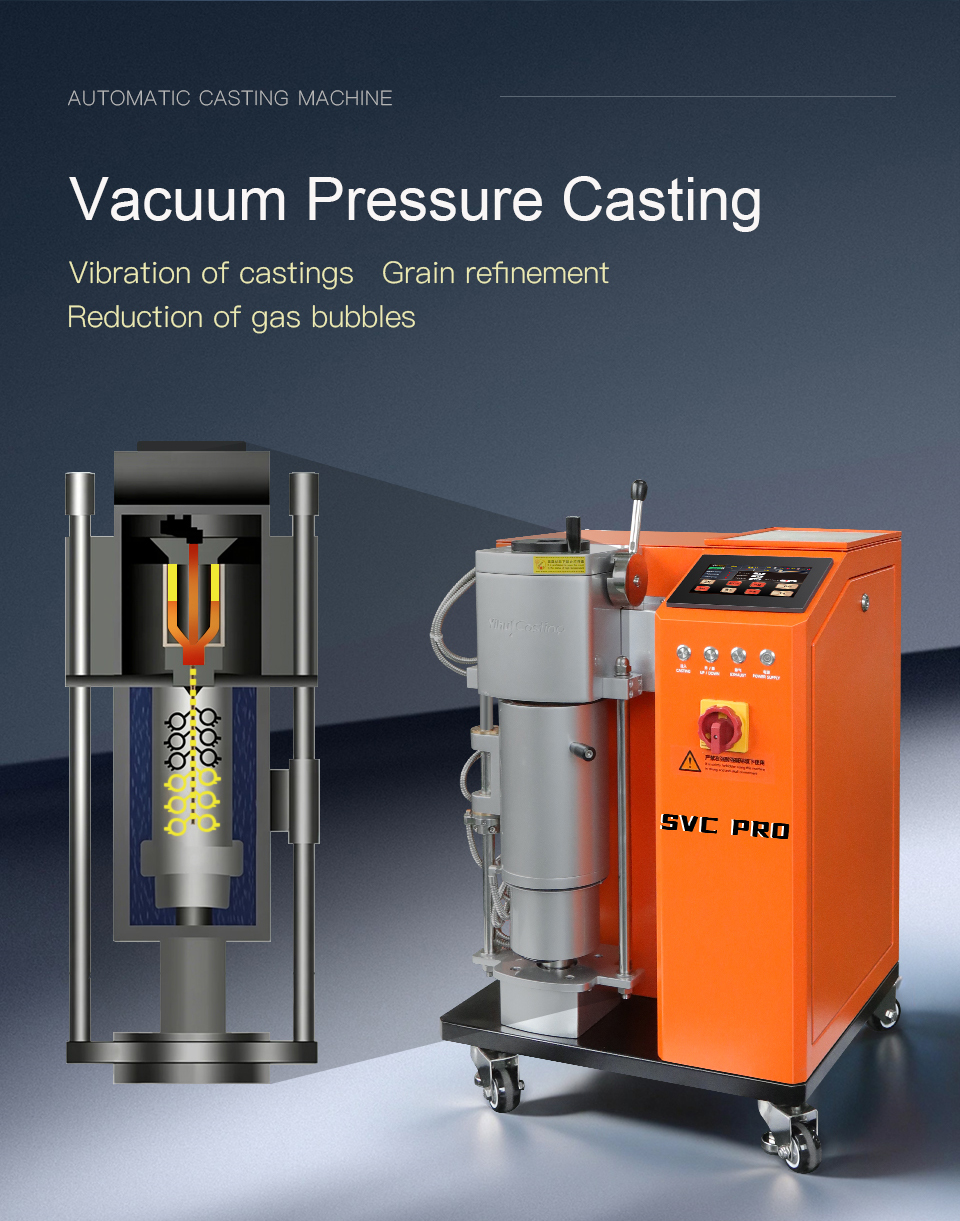

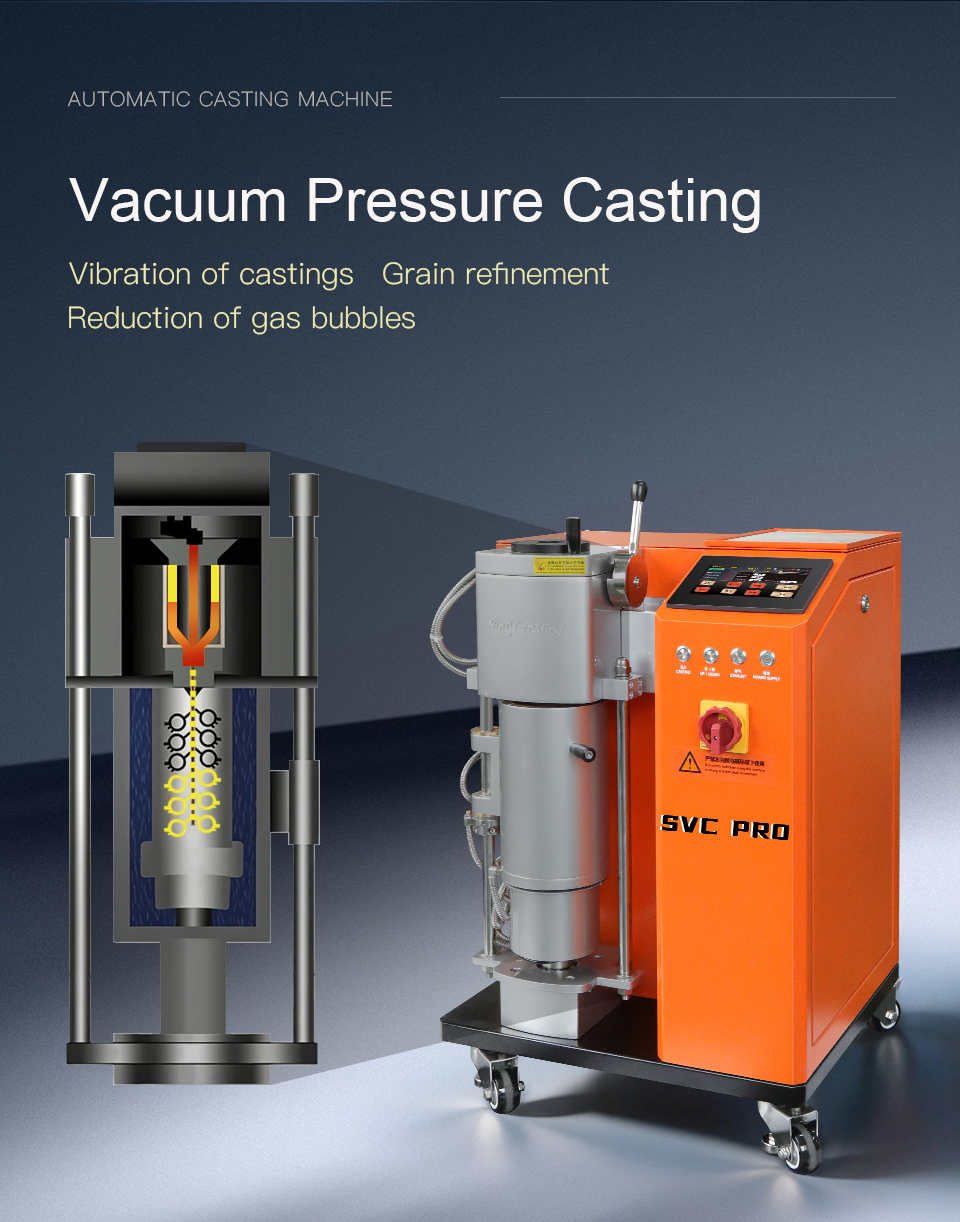

| Casting mode: | vacuum negative pressure suction casting+pressure shrinkage+vibration densification three in one |
| Molding advantages: | high casting density, no sand holes, few pores, and full flow channels |

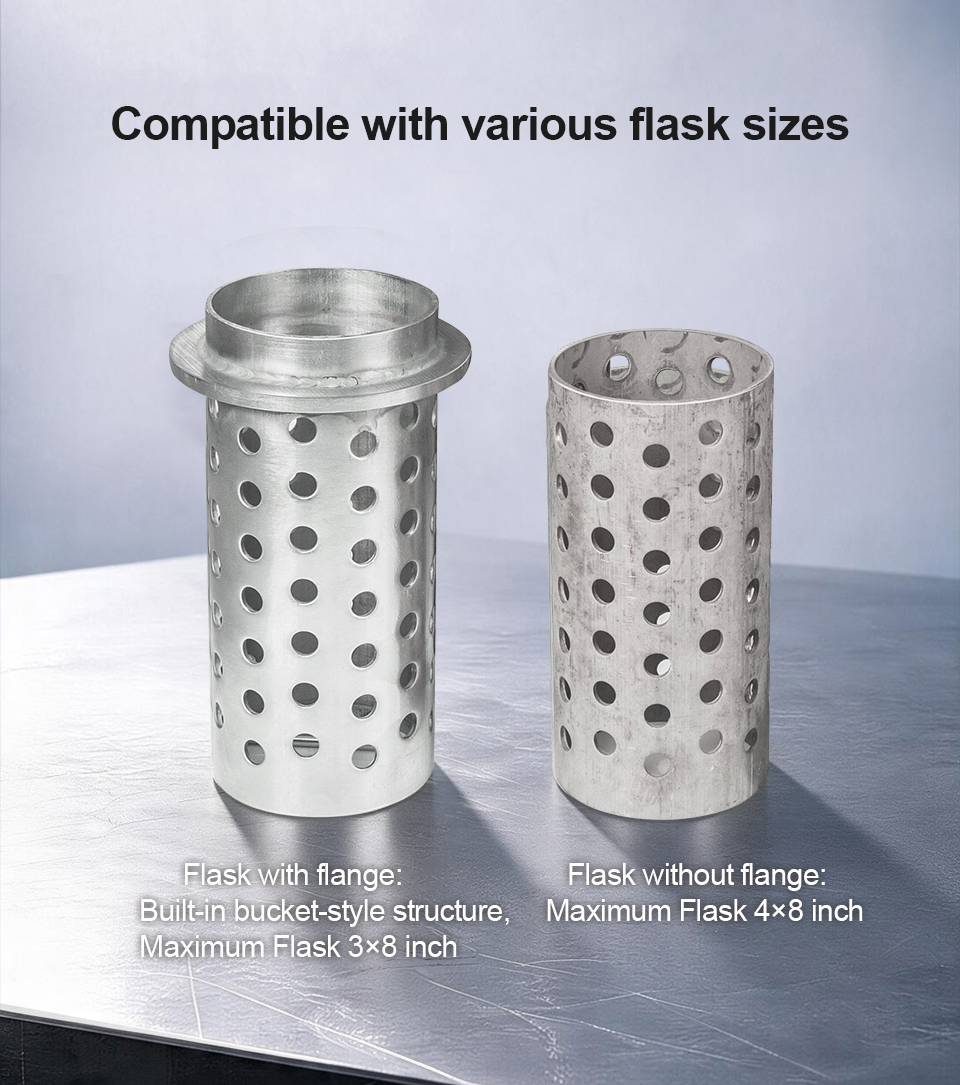

| Borderless steel cup: | Supports up to 4 × 8 inch steel cup placement |
| Edge steel cup: | Built in bucket structure, suitable for 3 × 8-inch steel cups |
Product parameters, images and descriptions on this website are for reference only. Specifications maybe updated due to product iteration. Actual parameters, appearance and export‑compliance requirements shall be subject to physical products and our official documents.
