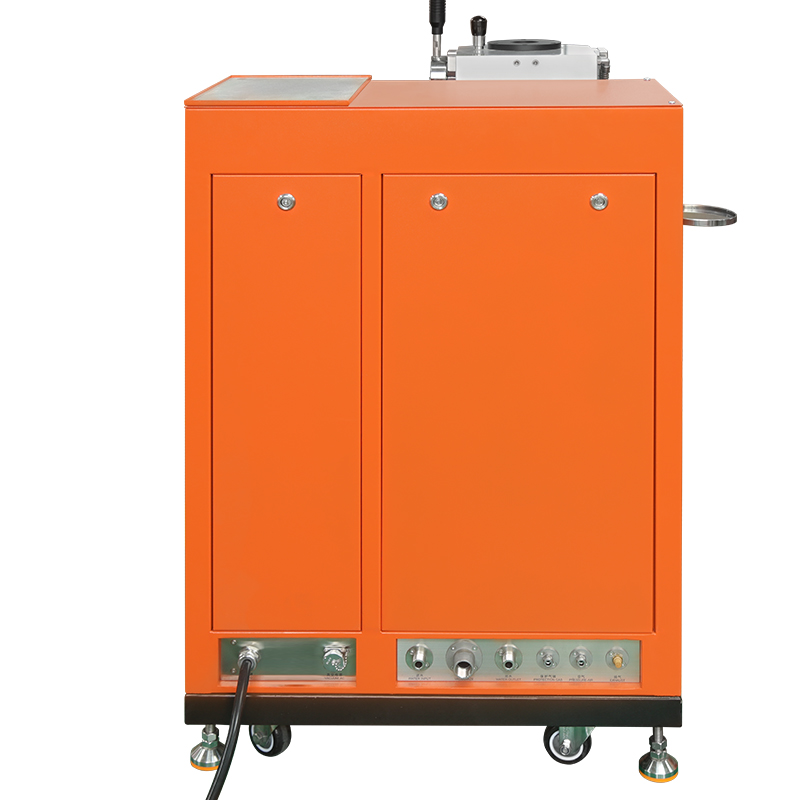

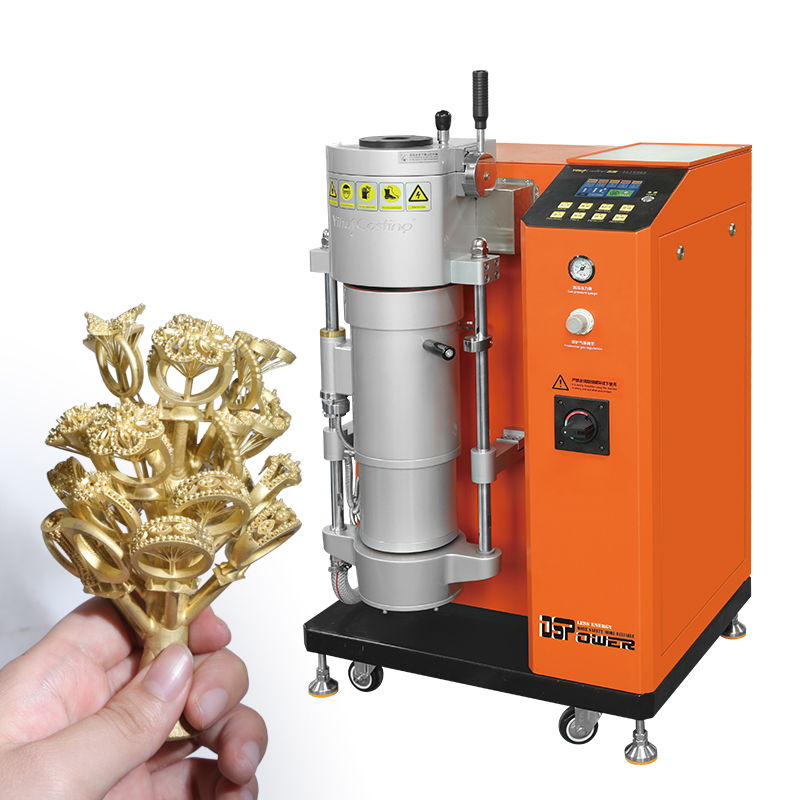

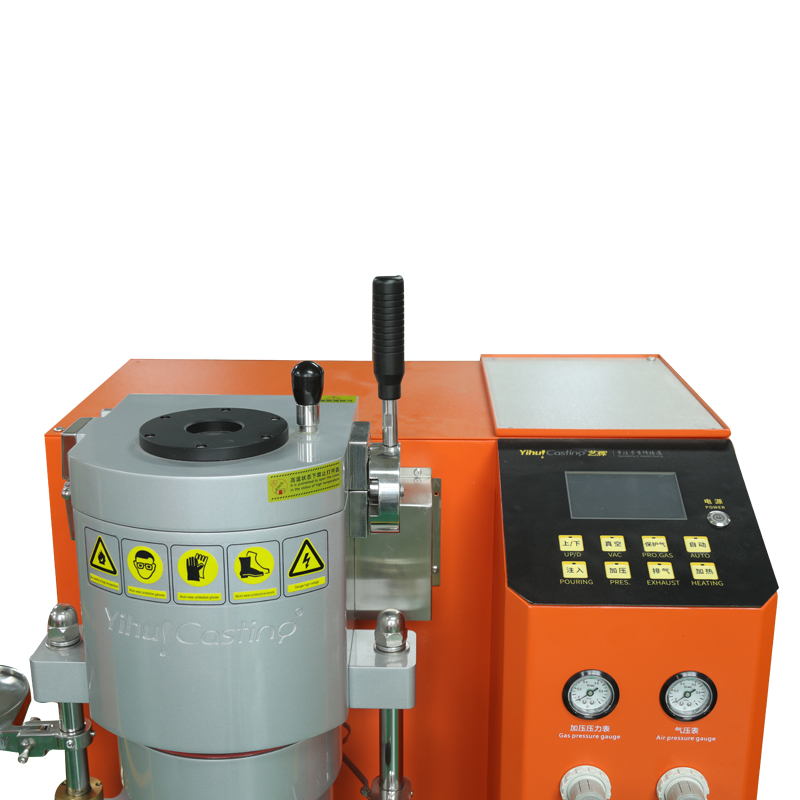

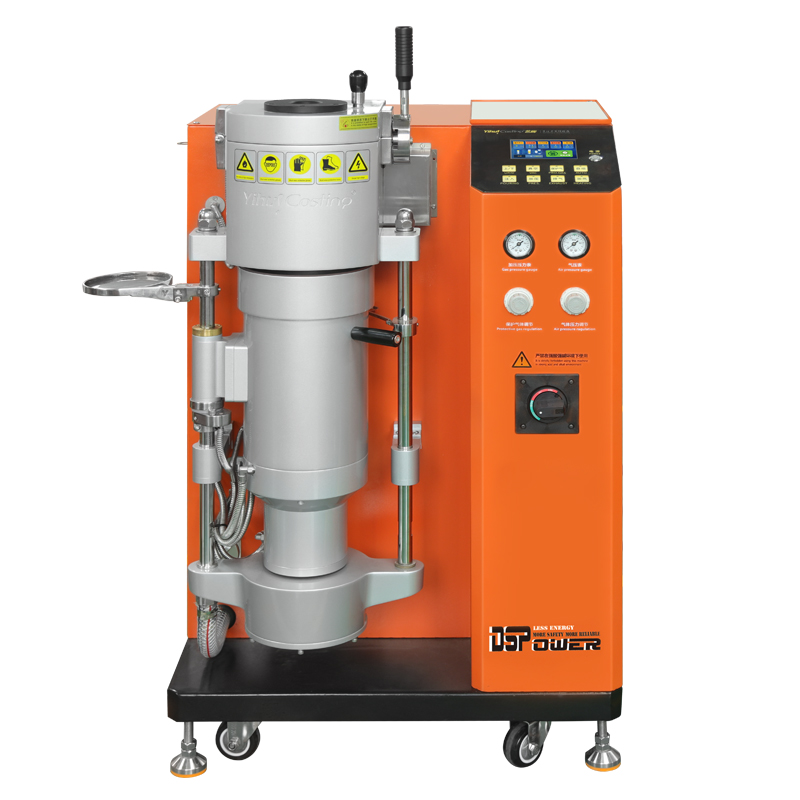

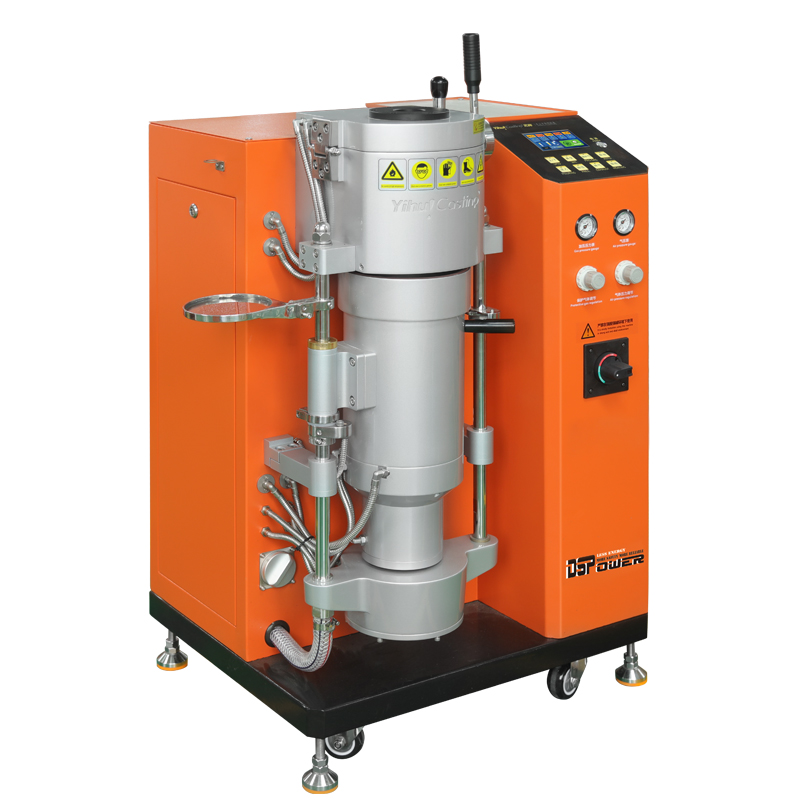

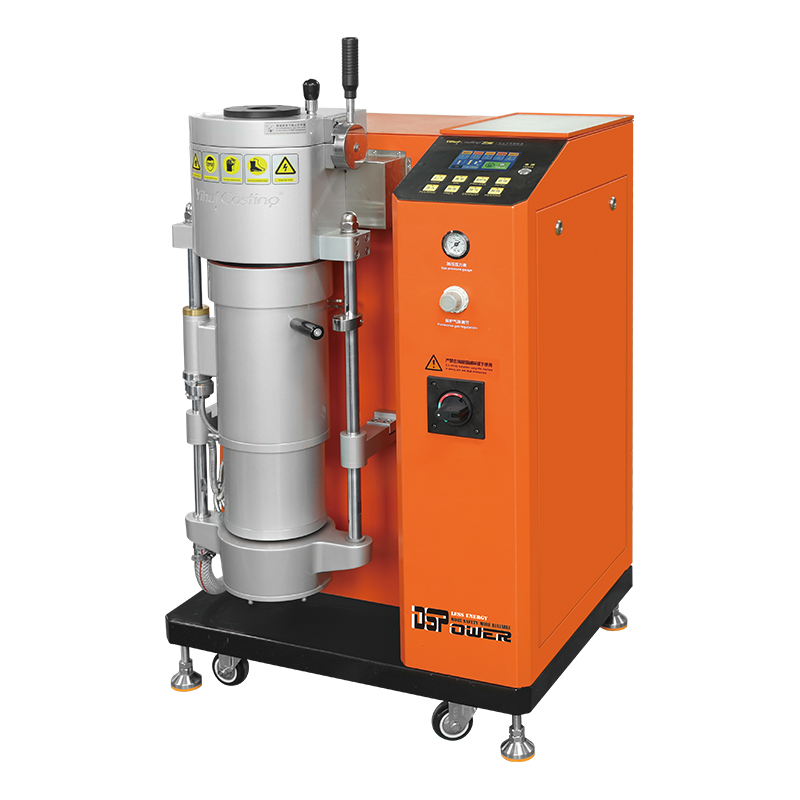

Yihui AVC-EV vacuum pressure casting machine integrates melting and casting, specially designed for lost wax casting of gold, silver, copper, K gold and other precious metals, suitable for jewelry workshops and mass production. Equipped with intelligent control and adjustable process parameters, it adopts vacuum pressure and electromagnetic stirring technology to avoid oxidation and pores, ensuring uniform casting quality and low material loss. With stable performance, low noise and CE certification, it is an ideal device for high-precision jewelry casting.
PRODUCT FEATURES:
1. Use first-line brands core parts like SMC, Fuji, Schneider and other to ensure equipment accuracy and reduce the failure rate.
2. 1000 memory program to meet various production needs of the factory.
3. Water and electricity isolation design reduces equipment failure
4.Machine size design accords with ergonomics
5. Suitable for flask with or without flange, lower conversion costs.
6.Optional German vacuum pump and water cooling system
7. With CE certification.
TECHNICAL PARAMETERS:
| Model | M.CM.AVC-EV |
| Power supply | 380V/50Hz/3PH |
| Power output | 15KW |
| Suitable metal | Gold,Silver,Copper |
| Melting capacity | 2.5kg |
| Temp.range | Standard: 0~1150°℃ (K type) Option: 0~1450°℃ (R type) |
| Max pressure | 0.2Mpa |
| Protection gas | Argon or Nitrogen |
| Type of cooling | Water-cooling |
| Casting method | Vacuum pressure casting |
| Abnormal warning | Self-diagnostic LED display |
| Environmental temp. | 5°C-40°C |
| Vacuum setting | Exteral vacuum pump more than 100m³/H |
| Water Supply | 10°C-30°C, and better use the water chiller more than 3P |
| Machine dimension | 750x660x1260mm |
| Net weight | 226KG |
Workable for many kinds of flasks: with flange, without flange, miaximum flask size is 6.3"x10"
