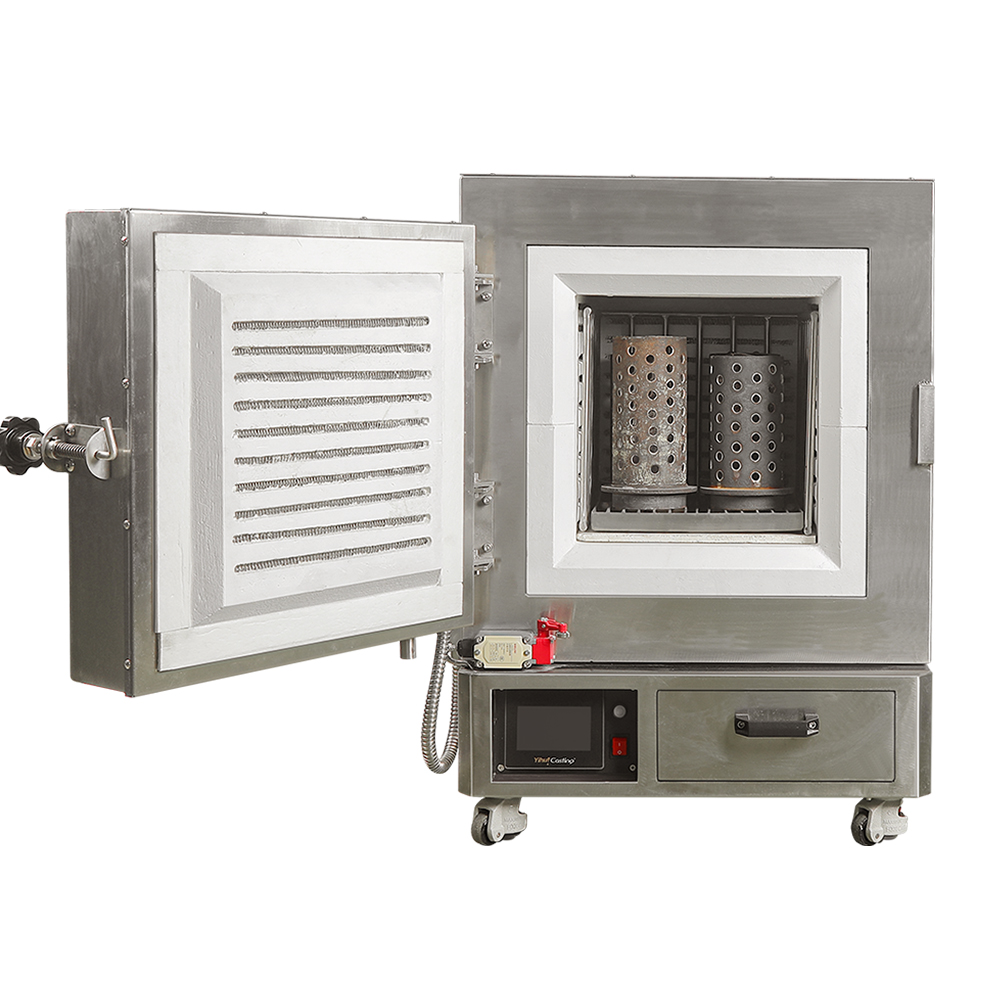

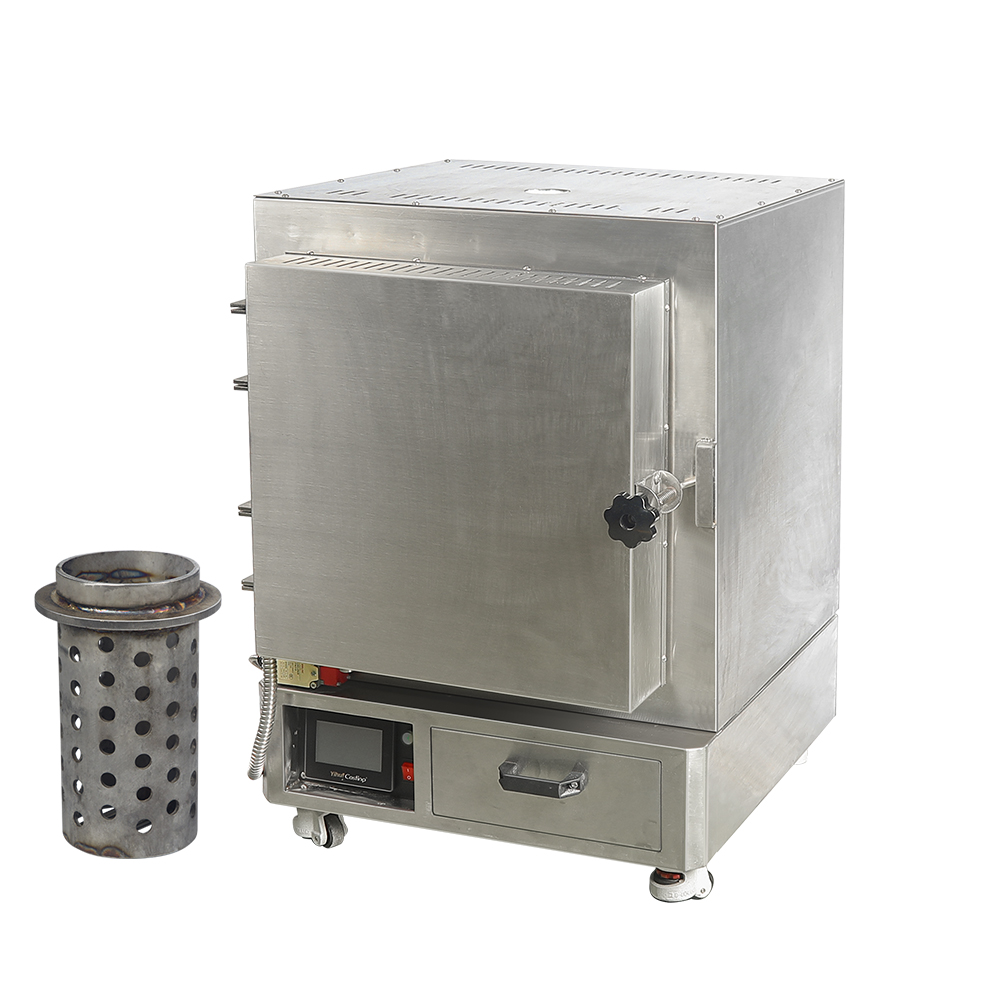

Yihui Casting 4PCS flask oven with stainless steel housing,multi-stage gradient heating and thermocouple break protection.Designed for dewaxing and sintering plaster molds in jewelry lost wax casting.It holds four 4"×8" flasks per batch,stable temperature and excellent heat insulation,ideal for small and medium jewelry factories and workshops.
| Model: | M.BO.S004 |
| Power supply: | AC 220V 50/60HZ,1Phase |
| Heating power: | 3KW |
| Setting temp range: | 0～900℃ |
| Temp accuracy: | ±1℃ |

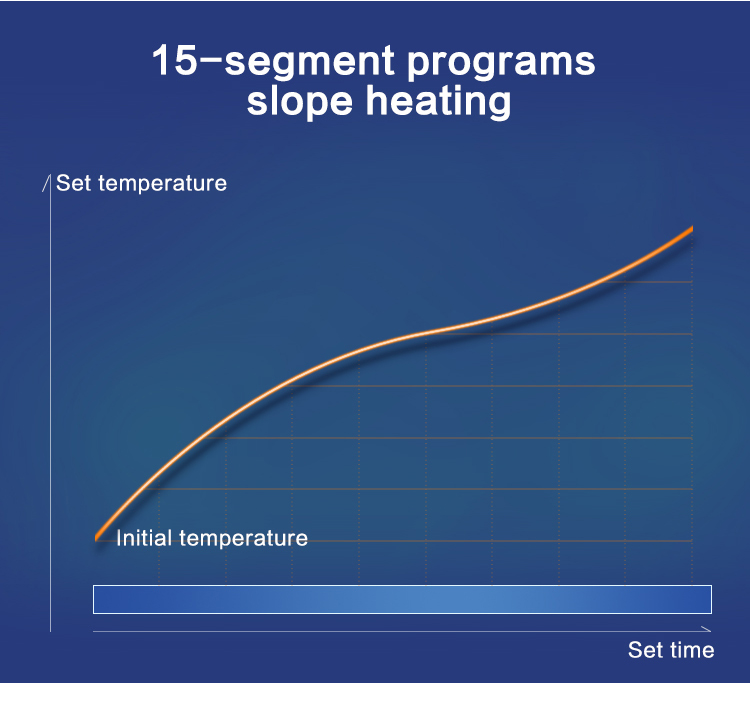

| Heating method : | Slope even heating Control Programs control |
| Flask number: | 4×8 inch 4 pcs , or 4×5 inch 8 pcs |
| Machine size : | 611×720×876mm |
| Weight: | 160kg |
Flask oven series

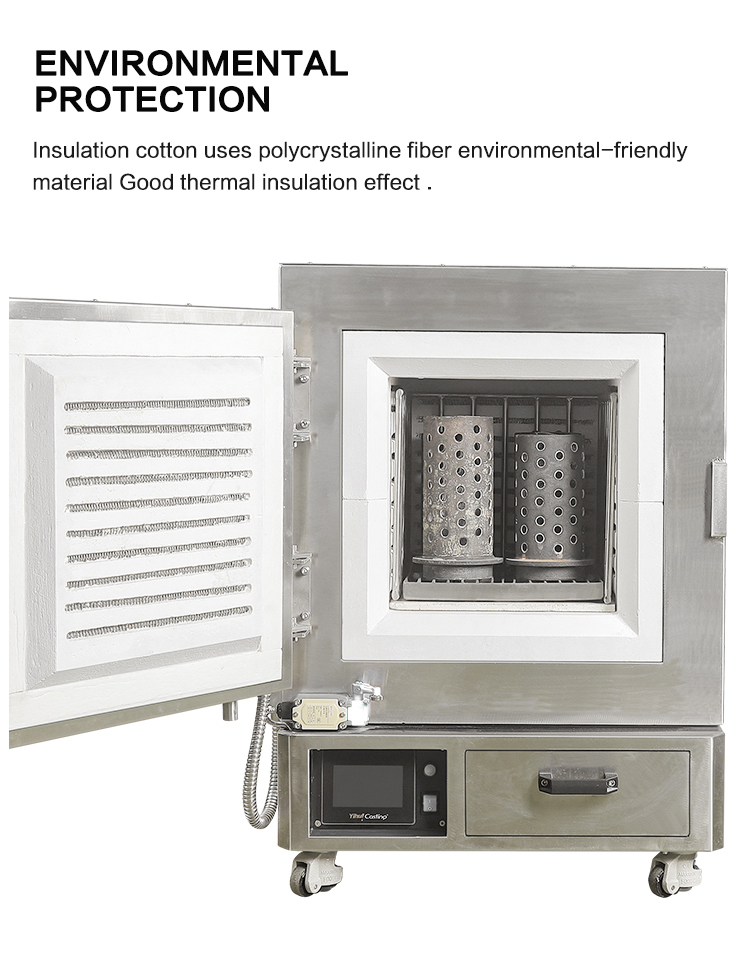

1. Using imported high temperature resistant insulating brick, ensuring excellent heat insulating performance.

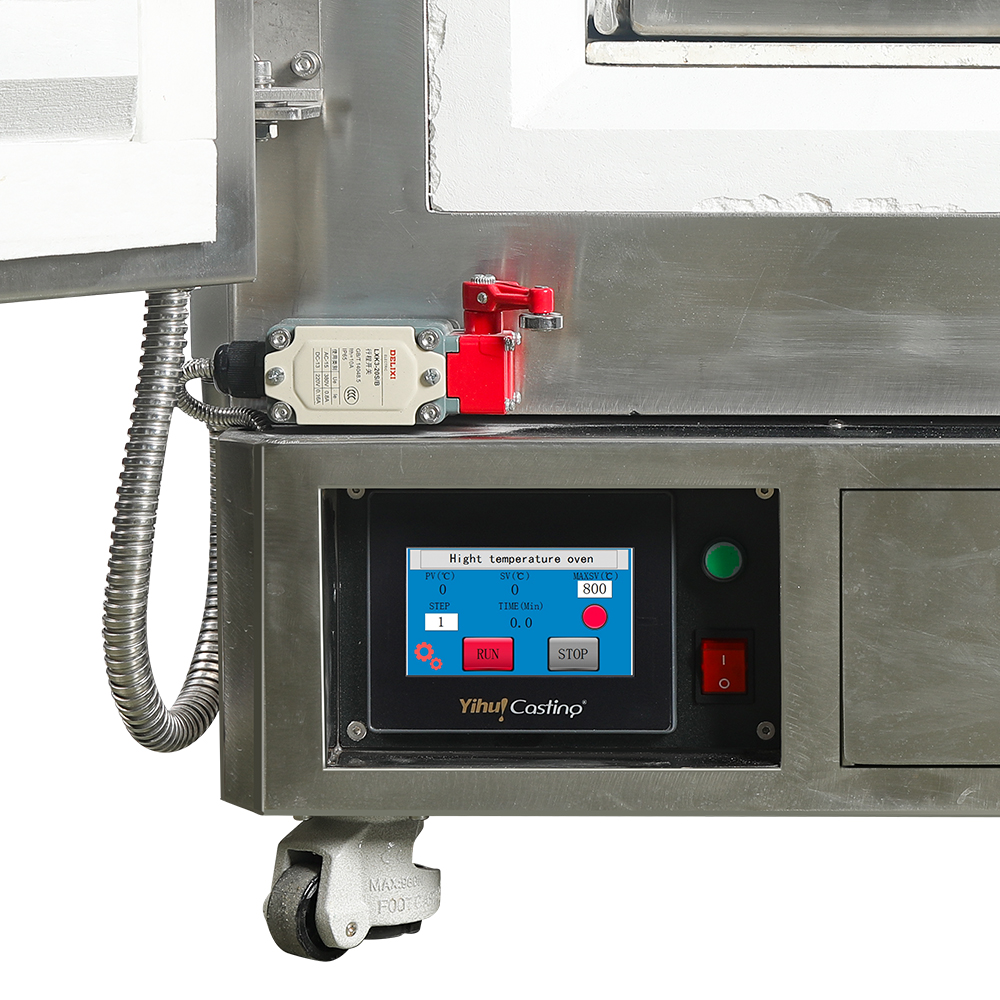

2. A break even protection function, when the thermocouple once burned or equipment failure automatic closed, avoid electric control and ca
unnecessary losses.

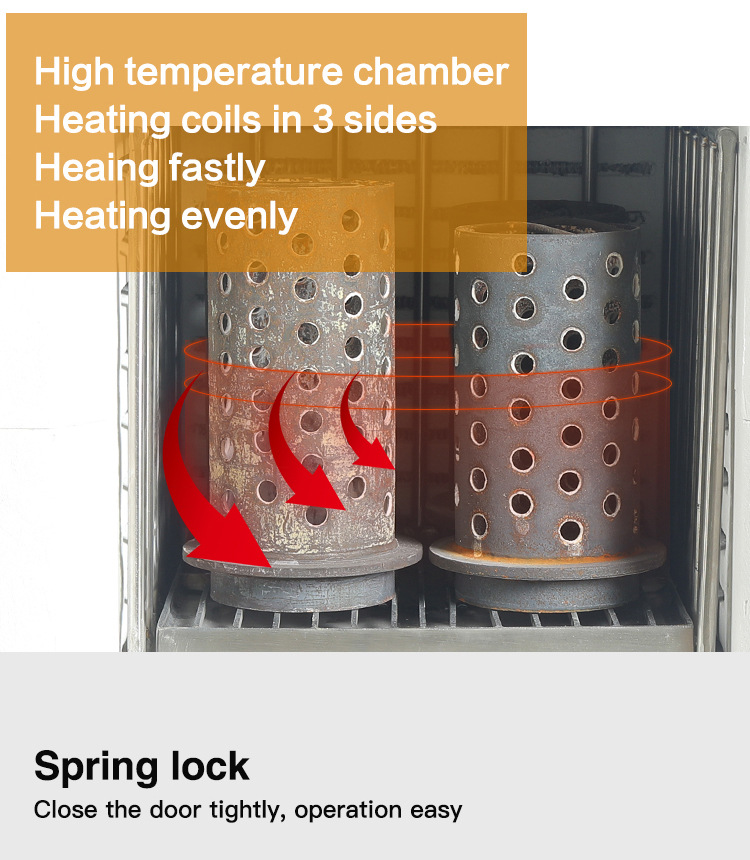

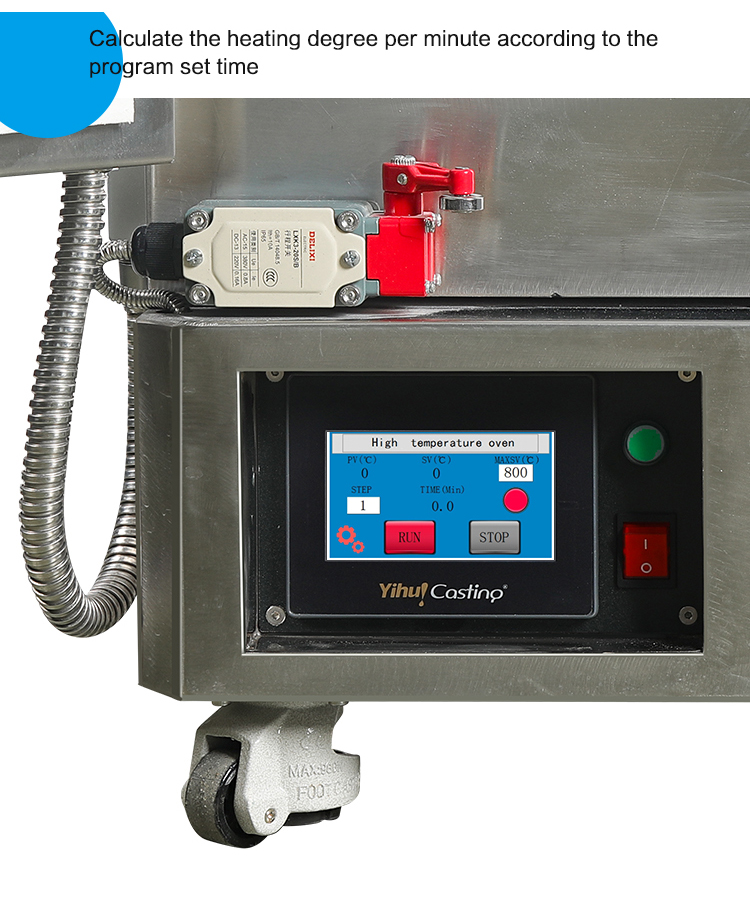

3. Can control the heating rate, to ensure that the sintering quaity products, can raise the rate of high qualty and to prolong the ife of the heating
4. The unique wax removing design can improve the using rate of high quality and to prolong the heating element.
