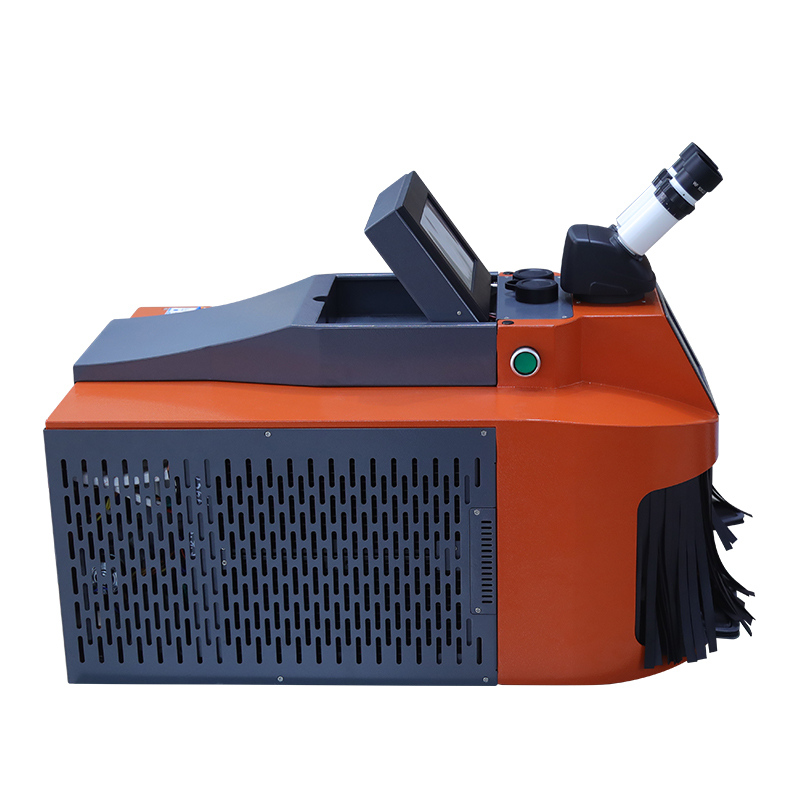

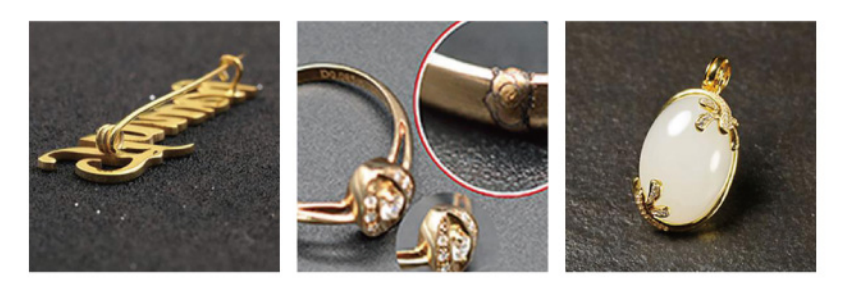

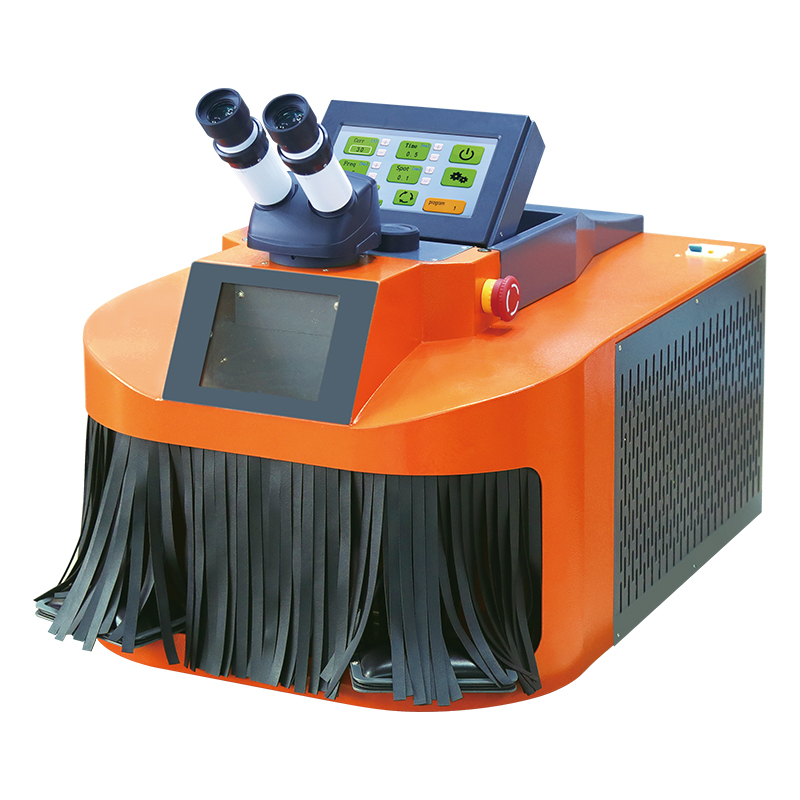

Yihui Casting Desktop Laser Spot Welding Machine is an efficient equipment designed for precision welding of gold and silver jewelry, precious metal processing, and micro small parts. Based on Yihui Casting's years of experience in casting and welding equipment research and development, it balances compact design and professional performance, and is suitable for various scenarios such as jewelry studios, small processing plants, and laboratories. It completely solves the pain points of traditional welding such as gold splashing, rough welding points, and large heat affected zones.
PRODUCT FEATURES:
1.Integrated vibration-free water cooling.

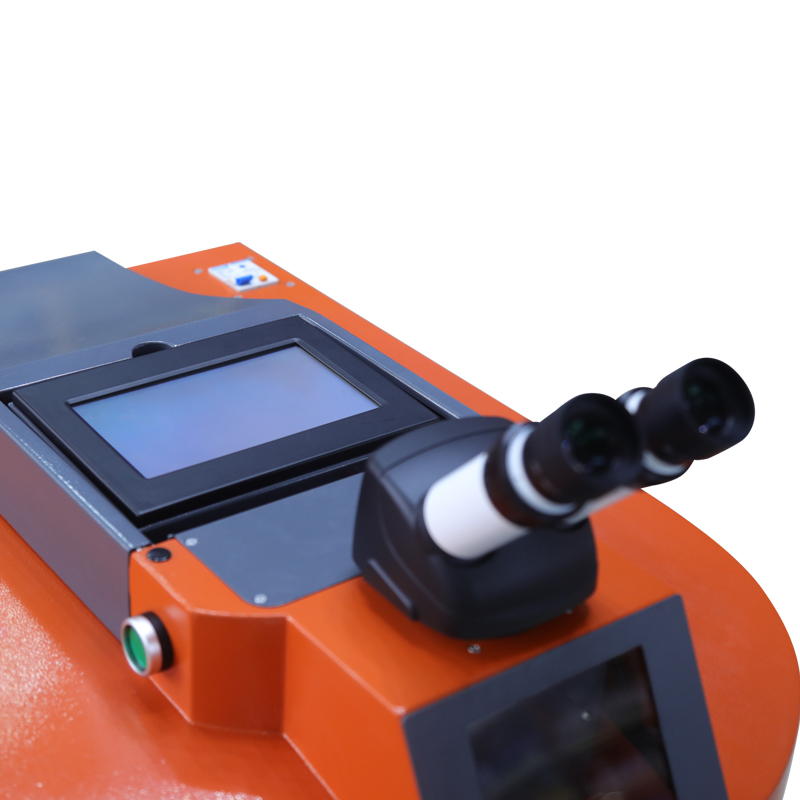

2.Microscope and CCD camera system dual display.

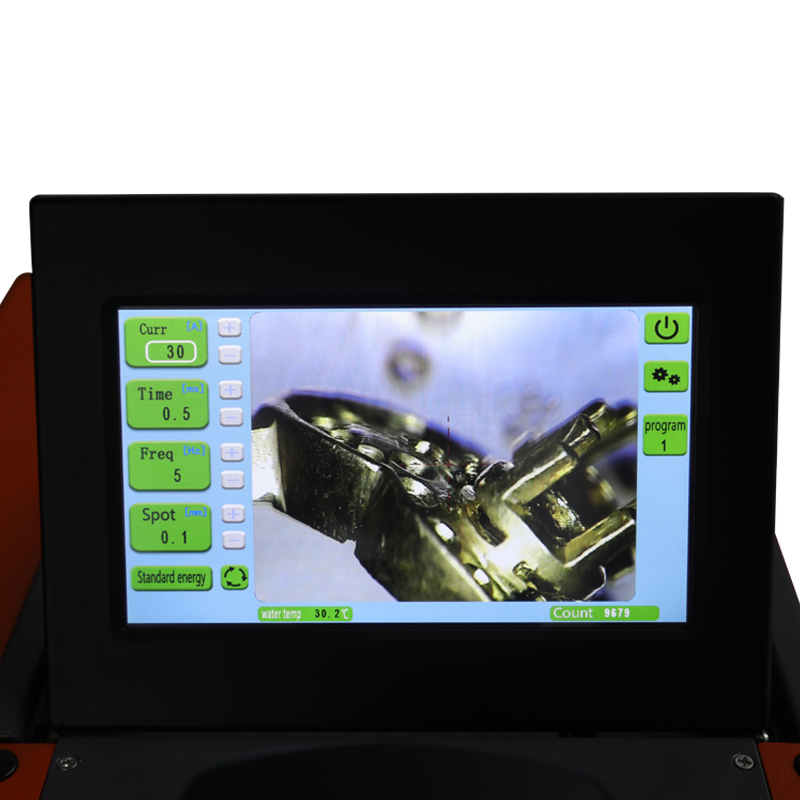

3.7"color touch screen with real-time monitoring.
4.Mini adaptive voltage power supply 6Ow.
5.Rocker,valve &material plate.
6. Electric water filling,water shortage&full automatic protection.
7.Automatic temperature control.
8. Three options that touch screen, press key or rocker to adjust parameter.
9. Each function unit is modular designed, which greatly facilitates installation, produc tion and maintenance.
Technical Specifications:
| Model | M.SW.YBT200-5A | M.SW.YBT150-4A M.SW.YBT150-4B | M.SW.YBT200-4A M.SW.YBT200-4B |
| Power demand | AC220V+10%150Hz120A | ||
| Power consumption | ≤5KW | ||
| Maximum laser power | 200W | 150W | 200W |
| Laser wavelength | 1064nm | ||
| Welding frequency | ≤30Hz | ||
| Pulse width | 0.1-20ms | ||
| Spot diameter range | 0.1-3.0mm | ||
| Control system | MCU program control | ||
| Cooling system | Built-in water cooling | ||
| Size | L660xW350xH345mm | L660xW350xH345mm | L660xW450xH345mm |
| Weight | 40kg | 50kg | 50kg |
