In the thousands of years of development of the jewelry industry, the traditional lost wax casting process is like a tough thread, connecting the aesthetics and skills of different eras. From the gold jewelry in the tombs of ancient Egyptian pharaohs to the filigree inlaid jewelry of the Ming and Qing dynasties in China, lost wax casting has always been the core craftsmanship of high-end jewelry production due to its ability to accurately reproduce complex shapes. However, as global consumer demand rapidly shifts towards personalization and diversification, traditional lost wax casting also faces practical challenges such as low efficiency, long customization cycles, and difficulty in adapting to scale. Nowadays, the deep integration of digital technology has brought new vitality to this ancient craft - it not only preserves the "tradition" of manual craftsmanship, but also breaks the "antiquity" of traditional models, opening up a new track for the modern jewelry industry in the balance of inheritance and innovation.

Adhering to the 'School of Handicraft': the irreplaceable value of traditional wax casting

Traditional lost wax casting can be regarded as the "art on the fingertips", and its core value lies in the fusion of manual craftsmanship and ultimate craftsmanship, which is a unique advantage that modern mass production cannot fully replicate. The craftsman first manually carves a 1:1 wax mold with beeswax, accurately controlling details such as texture patterns, nested patterns, and curved surfaces; Then repeatedly coat the wax mold with refractory material to form a hard shell, and after drying, melt the wax mold at high temperature, leaving a hollow cavity; Finally, molten precious metals such as K gold, platinum, or silver are injected, cooled, and the shell is broken to obtain the casting prototype. After multiple processes such as fine polishing, gemstone inlay, etc., it finally becomes a brilliant finished product.

Its core advantages are significant:

Ultimate restoration of complex shapes: Jewelry with three-dimensional patterns, hollow designs, irregular curves, or multi-layered nested structures can be formed seamlessly through manual wax molds, completely avoiding splicing defects and greatly enhancing jewelry refinement. For example, in high-end customization, the "filigree wax loss combination process" seamlessly integrates the gold wire structure with the metal substrate, combining dynamic beauty and structural strength, precisely matching the core pursuit of global consumers for jewelry "uniqueness" and "artistic sense".

The adaptability of precious metals is extremely strong: whether it is high melting point platinum, or K gold and gold that require precise control of composition ratios, craftsmen can manually adjust the melting temperature, pouring speed, and cooling rhythm to ensure the physical properties, glossiness, and purity of the metal to the greatest extent possible. This is also the key that traditional wax casting cannot be replaced in high-end jewelry and collectible jewelry fields.

Breaking the 'ancient tradition': Digital technology injects new vitality into lost wax casting

Digital technology has never attempted to replace the craftsmanship of manual labor, but is supported by efficiency, precision, and controllability, precisely compensating for the shortcomings of traditional craftsmanship in mass production adaptation, parameter control, and risk management. Ultimately, it promotes a leapfrog upgrade in the ability of jewelry wax loss casting technology in three key dimensions.

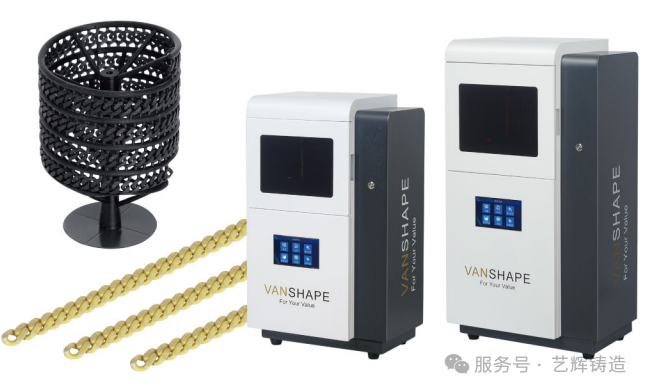

1. 3D modeling+3D printing: speeding up the customization process and breaking through efficiency bottlenecks

Yihui Jewelry has completely broken through the efficiency barriers of traditional customization through the digital combination of "3D modeling+3D printing". In traditional jewelry customization, design communication and handmade wax mold production take 7-10 days, and any modifications require re carving, resulting in a lengthy cycle; Nowadays, designers can quickly build jewelry 3D models through professional 3D modeling software, allowing customers to preview and adjust details in real time. The final solution can be determined in 1-2 days, and high-precision wax mold production can be completed in 4-6 hours through 3D printing technology. The overall efficiency is improved by more than 80% compared to traditional modes.

Taking customized filigree pendants as an example, the traditional wax mold production process takes 8 days, while digitalization only takes 3 days; The overall customization cycle has been significantly shortened from 15-20 days to 7-10 days, efficiently supporting personalized order demands for small batches, multiple styles, and rapid iterations, perfectly adapting to the high requirements of overseas markets for fast customization.

2. CAE simulation+real-time monitoring: reducing risks throughout the entire process and stabilizing high-end quality

In response to common casting defects such as bubbles, shrinkage, and insufficient pouring in traditional lost wax casting, Yihui Jewelry has created a "prediction control traceability" full process digital risk reduction solution:

Pre risk prediction: With the help of CAE simulation technology, accurately simulate key links such as wax mold structure, metal liquid flow, temperature field distribution, etc., identify potential defects in advance and optimize casting parameters to avoid risks from the source;

Real time production control: Through an intelligent monitoring system, core data such as melting temperature, pouring pressure, and shell temperature and humidity are collected in real time. Once the parameters deviate from the standard range, an automatic warning is issued to ensure that the entire production process is controllable;

Full process digital traceability: Assign unique codes to each casting to achieve traceability of data throughout the production process.

This plan has reduced the defect rate of Yihui Jewelry castings from the industry average of over 10% to below 3%, and reduced the loss of raw materials in a single batch by 35%. While significantly reducing production costs, it has further solidified the quality reputation of high-end jewelry.

3. Digital management system: Full chain quality control to ensure stable and traceable quality

The traditional lost wax casting process is complex and has multiple process parameters. In the past, relying on manual recording was prone to problems such as wax mold size deviation, delayed melting temperature recording, and data errors. This not only affects quality stability, but also makes problem investigation difficult and inefficient. Yihui Jewelry has completely solved this pain point through a digital management system:

Real time data collection: high-precision sensors are used to collect real-time data on wax mold accuracy, shell temperature and humidity, melting parameters, etc., synchronized in milliseconds to a dedicated cloud, completely eliminating manual recording errors;

Full chain traceability system: Generate exclusive traceability code for each jewelry casting, scan the code to query the complete production process, quality inspection report and process parameters, locate abnormal problems in only 10 minutes, and improve troubleshooting efficiency by 90%;

Intelligent production optimization: The system automatically generates production reports, accurately analyzes equipment energy consumption, team qualification rate, process bottlenecks and other data, and helps enterprises continuously optimize production processes.

After the system is enabled, the defect rate of Yihui Jewelry castings has decreased by another 22%, and the overall production cycle has been shortened by 18%. This not only ensures the quality stability of high-end jewelry, but also lays a solid foundation for the large-scale production of small batch personalized orders.

Inheritance and Innovation Coexistence: Reshaping a New Paradigm for Modern Jewelry Casting

The deep integration of traditional lost wax casting and digital technology is a balanced coexistence of "manual empowerment of digital, digital optimization of manual". For enterprises, it is possible to achieve small batch rapid customization and large-scale production through digitization, while also relying on experienced craftsmen for manual refinement (such as fine adjustment of wax mold details, precise polishing of castings, and manual gemstone inlay), preserving the unique "handmade temperature sensation" of jewelry and avoiding cold industrial mass production; For global consumers, the customization threshold has been significantly reduced, and design choices have become more diverse. At the same time, the handmade core ensures the uniqueness and artistic value of each piece of jewelry; For the entire jewelry industry, digitization transforms precious manual skills into storable, replicable, and inheritable data, effectively avoiding "skill loss" and enabling young designers to quickly grasp the logic of traditional craftsmanship, promoting intergenerational inheritance of craftsmanship spirit.

The "Zong" of traditional lost wax casting is the essence of manual craftsmanship and millennium craftsmanship; The "new" of digital technology is the improvement of efficiency, breakthrough in accuracy, and expansion of boundaries. The deep integration of the two in Yihui Jewelry not only brings new vitality to ancient craftsmanship, but also reshapes the underlying logic of modern jewelry casting with "Yihui Quality" as the core. Yihui always adheres to the foundation of manual craftsmanship, and senior craftsmen fully control the precision of wax casting details, ensuring the texture and craftsmanship essence of each piece of jewelry; In the future, Yihui will not only be a guardian of traditional craftsmanship, but also a leader in jewelry innovation. We will always adhere to the essence of handmade craftsmanship, while using digital technology as a wing, continuously breaking through the efficiency and precision boundaries of jewelry casting - exploring more complex jewelry structure customization, expanding the scale production path of small batch and personalized orders, so that each jewelry casting not only carries the temperature of ancient craftsmanship, but also shines with the light of modern technology, creating exquisite works that combine cultural heritage and contemporary beauty for global customers.

Yihui Casting Technology Co., Ltd. was established in 2003. After more than 20 years of accumulation, Yihui has now developed into a national high-tech enterprise that integrates research and development, production, sales, consulting, installation, and training of lost wax casting equipment, and provides one-stop solutions for metal casting. Yihui Casting Technology products include metal casting equipment, casting wax, graphite products, quartz products, etc., which are exported to Southeast Asia, the Middle East, Europe, America and other regions. The company has its own R&D team, which independently develops and produces automated vacuum die-casting machines, G20 vacuum bead scattering machines, and intelligent system D3 vacuum pressure casting machines, breaking the industry's long-standing dependence on imported high-performance jewelry equipment.

For more information about Yihui Casting Technology Co., Ltd., please visit our official website or contact our team.website: www.yihuicasting.com      email : info@yihuicasting.com     whatsapp : +86-13802830498
