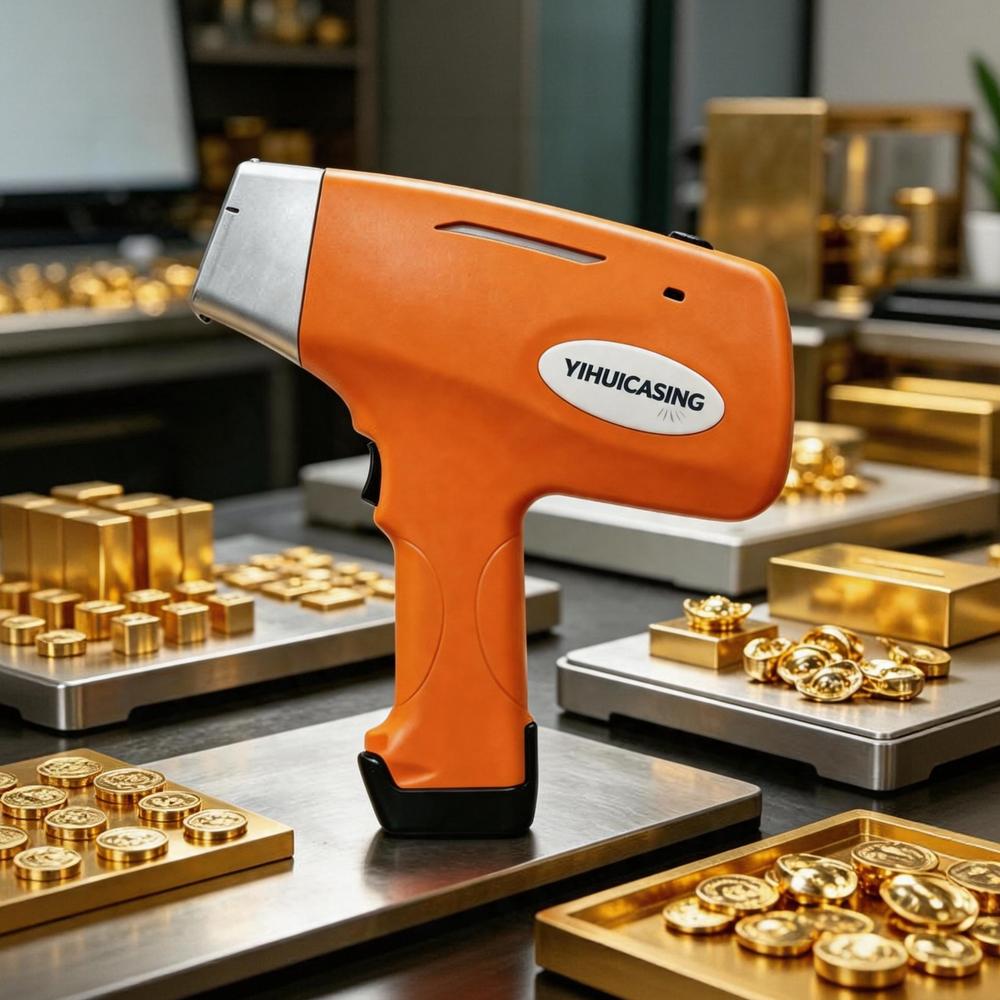

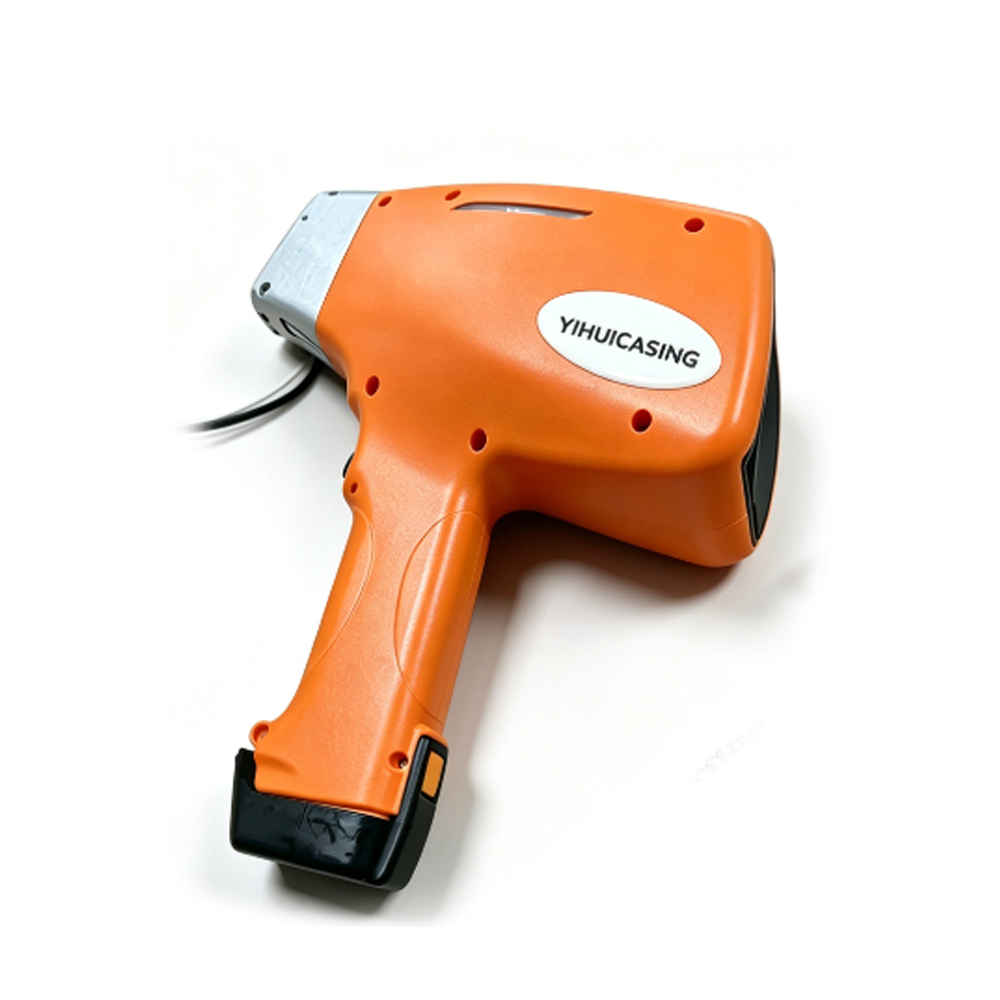

Yihui Casting handheld gold tester is portable and compact,realizing non-destructive rapid detection of precious metals like gold,silver and platinum.Equipped with high-precision chips,it supports one-click reading with simple operation.Suitable for jewelry appraisal,gold recycling and metal processing,it delivers stable and accurate test results,an essential testing tool for jewelry stores and precious metal recycling industries.
Analyzable elements: Ti to U; standard 29 metal elements Nickel (Ni), Chromium (Cr), Molybdenum (Mo), Manganese (Mn), Copper Ni, Cr, Mo, Mn, Cu, Fe, Ti, V, Co, Ta, Nb, Pb, Sn, W, Zn, Bi, Cd, Re, Ru, Sb, Se, Zr, Hf, Ir, Au, Ag, Pd, Pt, Rh.
Analyzable Alloy Types
1. All elements from Ti to U
2. Over 2000 alloy grades; built-in 300+ grades; user-addable 300+ grades
3. Stainless steel, alloy steel, tool steel (201, 304, 316, 321, etc.)
4. Copper alloys: brass, bronze, pure copper
5. Mixed alloys: Ti, Sn, Pb, W, Zn, Al, Ni alloys
6. Precious metals: Au, Ag, Pt, Rh, Pd
Product Advantages
1. High-performance Si-Pin detector for superior accuracy

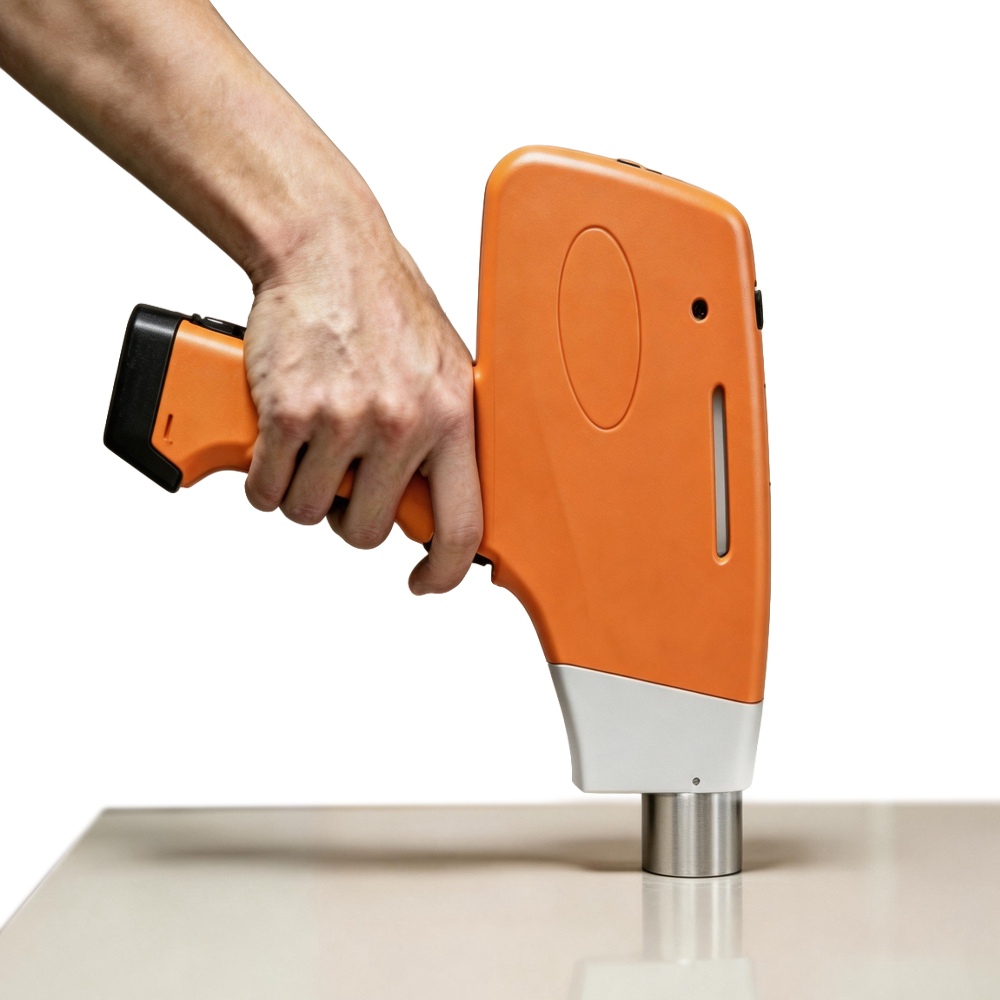

2. On-site, fast, non-destructive testing; grade/element/% in 2–3 seconds
3. 50 kV/100 mA/4 W X-ray tube for low detection limit and radiation safety
4. Smart Beam: Ti/V accuracy 0.02%; clearly distinguishes similar alloys
5. −35 °C ultra-low detector temperature for high resolution
6. Average calculation improves testing stability
7. Detects tiny/irregular samples down to 0.06 mm wire
8. Auto stop within 2 seconds without sample
9. Extendable probe for welds, pipe inner walls, small components

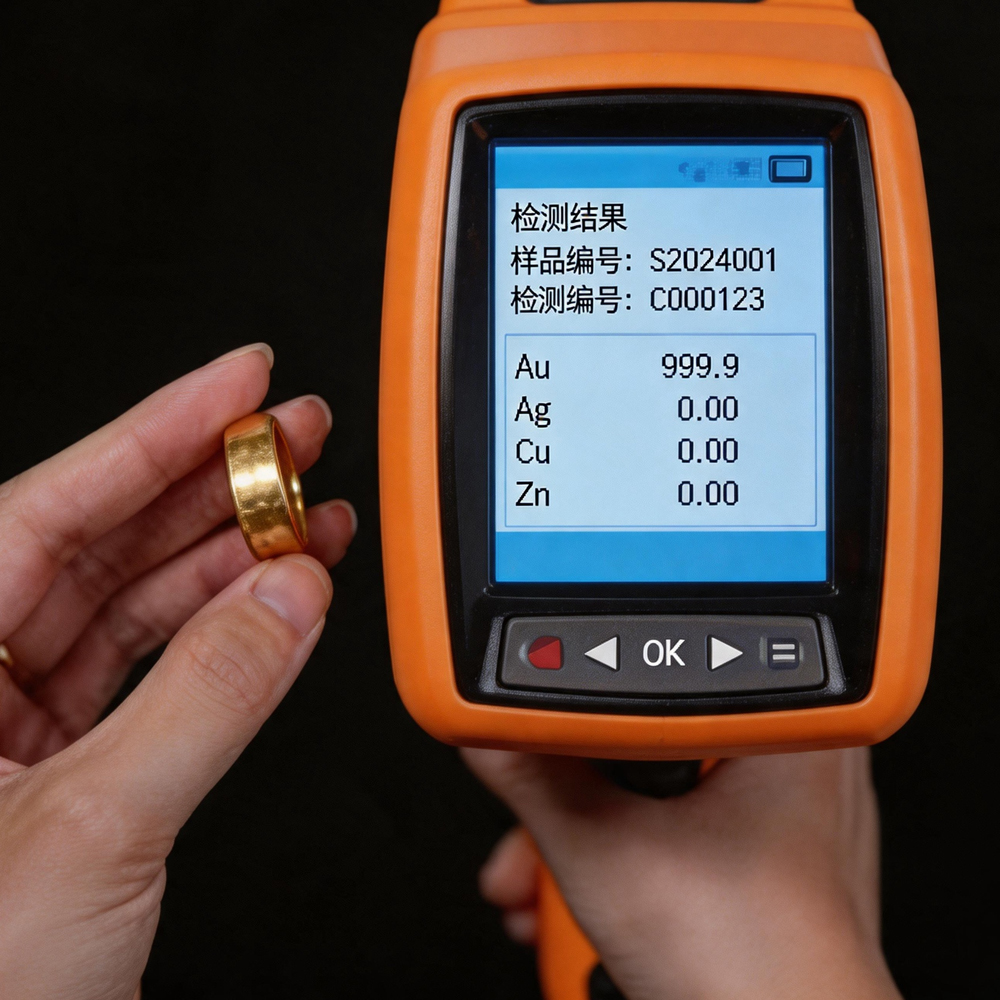

10.On-site data view and edit without PC
11. On-site add/edit/delete alloy grades
12.Aluminum alloy body: good heat dissipation, shockproof, radiation safe
13.One-touch trigger design
14.PC connection for report printing
15.Remote diagnosis and 24/7 support
16.Stable Windows CE system
17.Auto-standardization at power-on
18.FP method: no need to select alloy type or test curve
19.Excel output and Bluetooth printing/archiving
Technical Specifications
| Model | AU1000E |
| Weight: | Basic 1.4 kg; with battery 1.5 kg |
| Dimensions (H×W×L): | 300 mm × 90 mm × 220 mm |
| Excitation source: | 4 optional targets (Au, Ag, W, Pd) |
| X-ray tube: | 50 kV, 100 mA, 4 W high-power micro tube |
| Filters: | 6 automatic adjustable filters |
| Detector: | High-resolution Si-Pin X-ray detector |
| Detector cooling: | Peltier semiconductor, −35 °C |
| Resolution: | < 180 eV |
| Power: | 8 hours (2 batteries); AC power supported |
| Processor: | Intel 400 MHz StrongArm |
| Operating system: | Windows CE |
| Connectivity: | Bluetooth |
| Data storage: | 8 GB, ≥ 40,000 test records and spectra |
| Analysis methods: | FP, Compton normalization, empirical calibration |
| Display: | ppm, percentage, spectrum, peak intensity |
| Data output: | RS232, Bluetooth, Excel |
| Screen: | 3.5-inch industrial color TFT touchscreen |
| Structure: | Rugged, waterproof, dustproof, freeze-resistant, shockproof |
| Safety: | One-touch trigger; auto shut-off X-ray in 2 seconds without sample |
| Analyzable elements: | Ti to U; standard 29 metal elements Nickel (Ni), Chromium (Cr), Molybdenum (Mo), Manganese (Mn), Copper Ni, Cr, Mo, Mn, Cu, Fe, Ti, V, Co, Ta, Nb, Pb, Sn, W, Zn, Bi, Cd, Re, Ru, Sb, Se, Zr, Hf, Ir, Au, Ag, Pd, Pt, Rh. |
| Measuring range: | 0.01% – 99.99% |
| Calibration: | Pre-calibrated; supports custom calibration curves |
| Report: | USB/Bluetooth transmission; customizable Excel reports |
| Radiation safety: | < 2.5 μSv/h at 10–100 cm from instrument |
