Precision Casting in Small and Medium sized Jewelry Processing Plants: Three Key Links to Stabilize Casting Quality

Competition in the jewelry industry is becoming increasingly fierce, and brand customers' demands for jewelry details and batch consistency continue to rise. For small and medium-sized jewelry processing factories, the most troublesome problem is often that with the same formula and the same master, one batch of castings may be smooth and complete, but the next batch may have sand holes, shrinkage, burrs, and material shortages. Precious metal raw materials are expensive, and repeated rework directly consumes profits; The quality is unstable, and customers can transfer orders at any time. Small and medium-sized factories do not have a complete quality inspection team like large factories. In order to maintain casting quality, the core idea is not to repair defects afterwards, but to control risks at every process from the source. This article combines the actual production process of precision casting to provide a practical quality control approach for small and medium-sized jewelry processing factories.

01 Wax mold control: the first checkpoint of casting quality

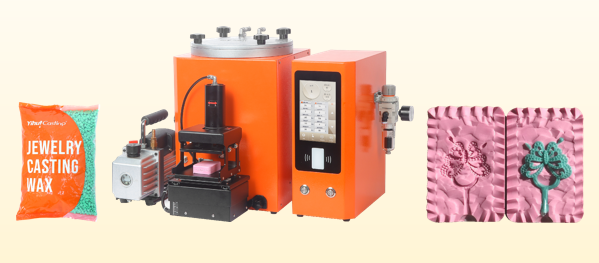

Many people tend to attribute problems to the melting and pouring processes, but in fact, a significant portion of casting defects originate from wax molds. The wax mold has scratches, bubbles, uneven thickness, and unreasonable nozzle design, which will inevitably leave congenital defects in the formed metal parts. Small and medium-sized factories do not need to use complex testing instruments, and can establish simple and practical inspection standards: after 3D printing or wax injection is completed, check the wax mold piece by piece for cracks, dents, and debris; Reasonably design wax trees and water outlets, reserve shrinkage channels for thick and large items, and avoid shrinkage and loosening in thick areas; Control the cleaning of wax molds. If wax chips and oil stains are not cleaned thoroughly, residual impurities after baking can easily cause sand holes. Establishing a simple sampling mechanism to directly remove unqualified wax molds and prevent them from flowing into the next process can reduce rework by more than half.

02 Gypsum mold roasting: stabilize the temperature curve, eliminate burrs and pores

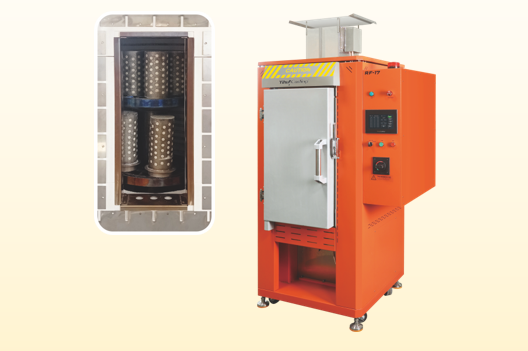

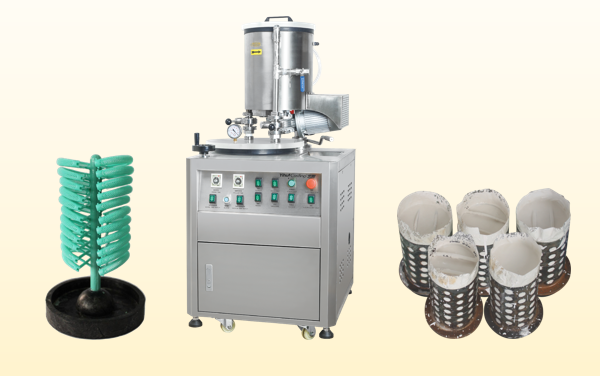

Gypsum mold is the carrier of precision casting cavity and also the most easily overlooked link. Expired gypsum powder, uncontrolled mixing time of slurry, insufficient settling time, and rapid heating during roasting can all cause gypsum cracking, powder loss, and the appearance of burrs and pockmarks in the finished product. The practical points for small and medium-sized factories include: proper storage management of gypsum powder, moisture prevention, and priority use within the shelf life; Strictly timing the mixing and vacuuming of gypsum slurry to reduce residual bubbles; Baking adopts a step heating method, which does not burn rapidly and slowly discharges water and wax materials to ensure the integrity and cleanliness of the mold cavity. Once cracks appear in the gypsum mold, the entire casting will be scrapped. Fixing the roasting curve and keeping good records are effective methods to reduce human operation fluctuations.

03 Melting and Vacuum Casting: Stabilize the Environment, Reduce Oxidation and Pores

Melting and pouring are the core processes of casting. Traditional open melting is prone to oxidation and gas entrapment of molten metal, resulting in insufficient watering of thin threads and small ring holders, and frequent porosity in the finished product. For small and medium-sized processing plants, vacuum casting is the key to improving stability. A vacuum sealed environment can isolate air, significantly reduce metal oxidation, allow for more thorough filling of metal liquid, and achieve higher degree of detail reduction.

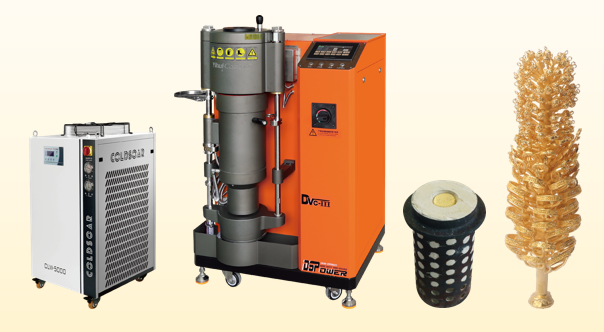

Yihui DVC-III and SVC pro fully automatic vacuum casting machines are designed specifically for small and medium-sized jewelry factories, using an intelligent touch system. The melting temperature, vacuum degree, and holding pressure parameters can be pre-set in advance, reducing reliance on the experience of experienced craftsmen. Repeated production with the same set of parameters results in stronger consistency in each batch of castings. K-gold, pure silver, and complex wire styles can all be stably formed, effectively improving sand holes and shrinkage defects, and synchronously reducing precious metal losses. Paired with intermediate frequency melting equipment, precise temperature control, uniform heating, and reduced metal burnout. After the equipment parameters are fixed, ordinary workers can operate according to the process to produce high-quality castings stably, solving the problem of quality decline caused by the difficulty of recruiting skilled workers and personnel turnover in small and medium-sized factories.

04 Simple Quality Inspection Loop: Quick Traceability of Problems

Large factories have a complete set of physical and chemical testing equipment, while small and medium-sized factories do not require a one-step approach, but must establish a simple quality inspection process: after casting and demolding, visually inspect the castings for missing materials, cracks, and burrs; Key spot checks will be conducted on areas prone to defects, such as thick areas, complex hollow areas, and stone areas; Register the problem, record the defect type, corresponding wax mold, gypsum batch, and casting parameters. When defective parts appear, quickly locate whether it is a problem with the wax mold, baking, or pouring process, rather than blindly repeating the sample. Long term accumulation of data will lead to increasingly stable processes.

05 Small batch standardization: Refusing to produce based on intuition

The biggest weakness of small and medium-sized jewelry processing factories is that the craftsmanship relies on the experience of the master, and the operation depends entirely on the hand feel. Once there is a change of personnel or rushing orders, the quality will immediately fluctuate. To maintain quality, the core is to turn experience into standards: wax mold inspection standards, gypsum ratio and baking curves, casting temperature and vacuum parameters, all of which are documented and fixed. Equipped with automated casting equipment suitable for small batch production, reducing human variables, steadily improving yield, reducing raw material loss, and naturally increasing profit margins. After upgrading the one-stop precious metal casting solution of Yihui, many cooperative customers no longer need to significantly increase their factory and personnel. The casting yield rate has significantly improved, and the customer repeat rate continues to rise, firmly establishing a foothold in the fierce jewelry processing market.

Precision casting not only involves craftsmanship, but also a stable and controllable production system. For small and medium-sized jewelry processing factories, in order to hold onto orders and stabilize profits, there is no need to pursue a one-time large-scale production line investment. Priority should be given to the three major links of wax mold, gypsum roasting, and vacuum melting, using standardized processes and stable casting equipment to reduce defects and losses, and retaining brand customers with stable quality. Yihui focuses on precision casting of precious metals and provides vacuum casting machines, melting equipment, and supporting processes for small and medium-sized jewelry factories, providing one-stop solutions to casting problems. If you encounter casting problems such as sand holes, shrinkage porosity, and low yield during production, please feel free to leave a message for communication.

Yihui Casting Technology Co., Ltd. was established in 2003. After more than 20 years of accumulation, Yihui has now developed into a national high-tech enterprise that integrates research and development, production, sales, consulting, installation, and training of lost wax casting equipment, and provides one-stop solutions for metal casting. Yihui Casting Technology products include metal casting equipment, casting wax, graphite products, quartz products, etc., which are exported to Southeast Asia, the Middle East, Europe, America and other regions. The company has its own R&D team, which independently develops and produces automated vacuum die-casting machines, G20 vacuum bead scattering machines, and intelligent system D3 vacuum pressure casting machines, breaking the industry's long-standing dependence on imported high-performance jewelry equipment.

For more information about Yihui Casting Technology Co., Ltd., please visit our official website or contact our team.website: www.yihuicasting.com      email : info@yihuicasting.com     whatsapp : +86-13802830498
