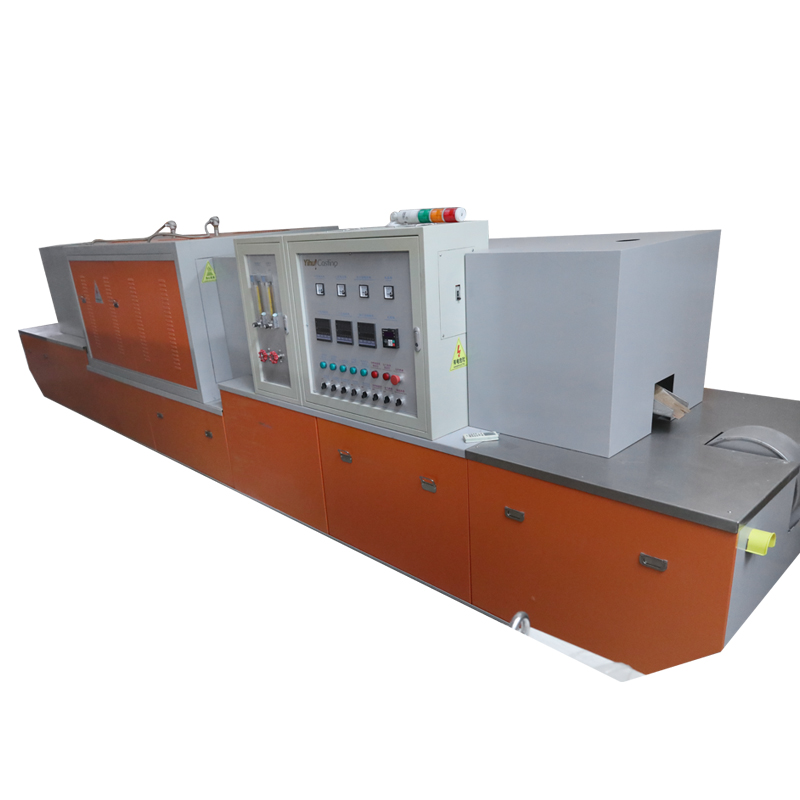

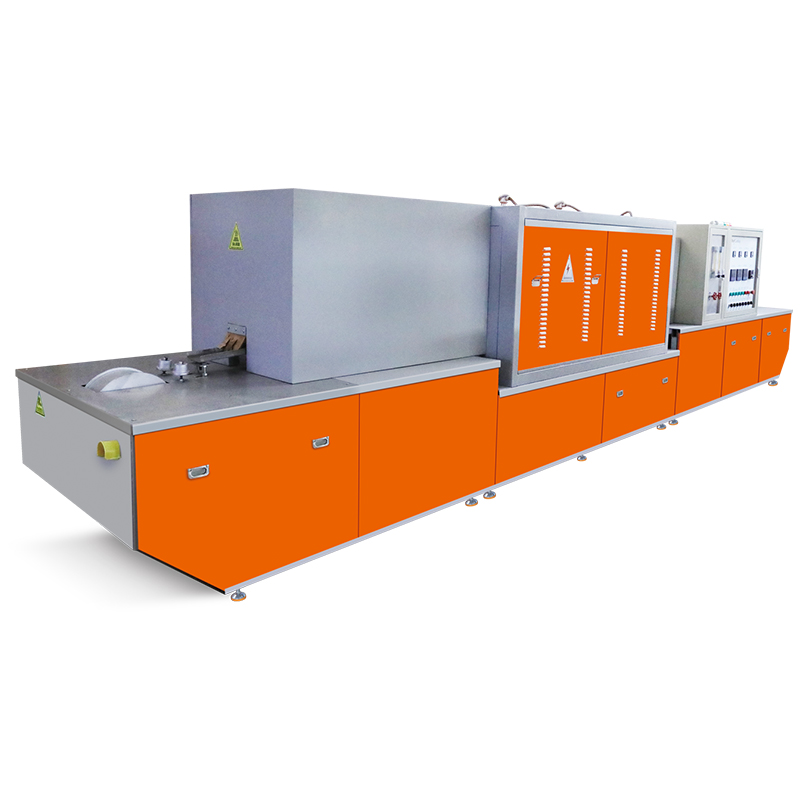

The transmission mechanism drags the workpiece through the main furnace tube and cooling water iacket by the control device. The workpieceis to a high temperature in the main furnace and then rapidly cooled in the cooling jacket., Throughout the process, the furace tube and cooling water jacket are filled with gases decomposed by the ammon decomposition furnace (ammonia gas is decomposed into nitrogen and hydrogen gas at about 850'c under the action of catalyst when passing through the decomposition furace. The decomposed ammon gas protects the workpiece from oxidation, and the decomposed hvdrogen gas is ionited and bured by the electronic ionition device at the feed and discharge ports to prevent air from entering
APPLICATION:
It is mainly used for the bright quenching of various martensitic stainless steels, bright annealing (solution treatment) of austitic stainless stels and other continuous production, as well as bright continuous production of various silver, copper, aluminum, etc. After the product is treated by the annealing furnace, surface becomes bright and will not be oxidized.
PRODUCT FEATURES：
| Model | M.BO.T0008 |
| Power | 15KW |
| Power supply | 3 phases, 380V,50HZ |
| Operating temperature | 50-1150°C |
| Equipment dimensions | L6500xW1150xH1500mm |
| Inner dimensions of furnace tube | L900xW120xH70-80mm |
| Feeding platform | 1800mm |
| Main furnace | L1800mm， Effective heating length1300mm |
| Main furnace | 2000mm |
| Decomposition furnace | L900xW900xH1300(mm)，3KW， Capacity:8mm³ |
