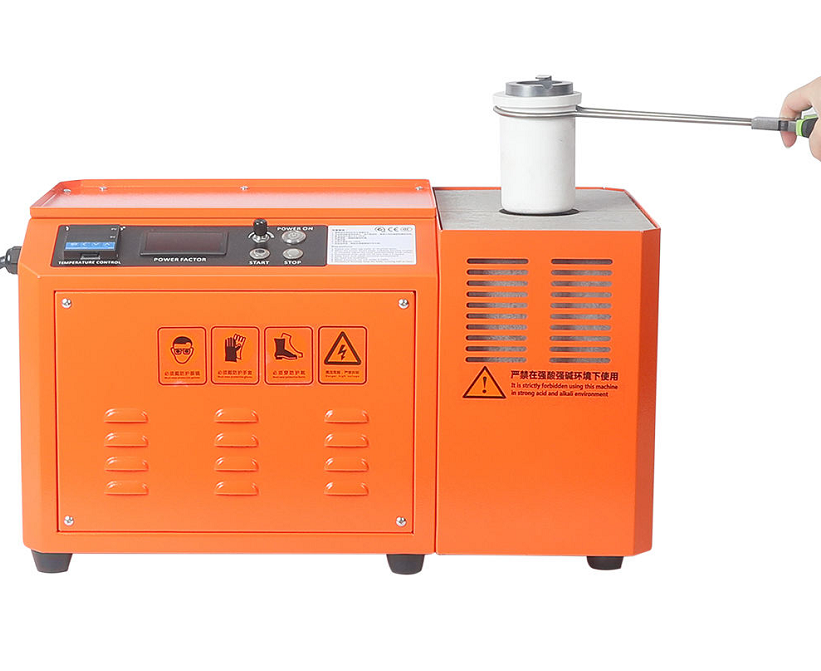

Yihui casting Medium Frequency Gold Melting Machine | Precious Metal Smelting Process & Casting Quality Optimization

Precious metal smelting is the core process of precision jewelry casting, and the temperature control accuracy, oxidation resistance, and alloy fusion uniformity of the melting equipment directly determine key quality indicators such as casting porosity, color difference, hardness, and structural stability. As a professional brand of precision precious metal forming equipment, Yihui has been deeply involved in the industry for many years. We have independently developed a series of intermediate frequency melting machines, which can perfectly match centrifugal casting and vacuum casting production lines. They are widely compatible with various materials such as K gold, platinum, foot silver, copper alloy, etc., covering a wide range of application scenarios such as jewelry DIY workshops, store sampling, jewelry processing factories, and precious metal precision manufacturing. We control the quality of castings from the source.

01 Basic Physical Principles of Yihui Gold Melting Machine: Three Core Technologies Build a Solid Smelting Foundation

Different from the outdated mode of external heating of traditional open flame spray guns, the Yihui medium frequency melting machine adopts the principle of medium frequency electromagnetic induction heating, relying on alternating magnetic fields to achieve internal heating of metals, solving the industry pain points of uneven heating, local overburning, and severe oxidation in traditional melting from the heating method. Combined with homogeneous stirring and closed protection technology, it achieves high-quality melting.

Induction heating: endogenous heating, efficient and energy-saving

After the intermediate frequency alternating current is applied to the equipment coil, a dynamic alternating magnetic field can be quickly generated. The precious metal raw material in the crucible serves as a conductor to continuously cut the magnetic induction line, autonomously generating eddy currents. Relying on the internal resistance of the metal itself, it uniformly heats up from the inside out and melts as a whole. The entire process does not require external flame conduction of heat, completely avoiding the heat loss problem caused by open flame heating. The thermal efficiency is greatly improved, the heating speed is faster, and it is suitable for fast sampling and continuous mass production needs.

Electromagnetic stirring: alloy homogenization, eliminating component segregation

During the melting process, an alternating magnetic field can generate a sustained and stable electromagnetic stirring effect, driving the molten metal to form an ordered circulation, allowing high melting point and low melting point alloy components to fully blend and mix uniformly. This mechanism can effectively improve the problem of insufficient alloy fusion caused by traditional manual stirring and flame melting, reduce component segregation of castings from the source, avoid quality defects such as obvious color difference, increased brittleness, and uneven hardness caused by local alloy proportion imbalance in finished products, and ensure batch product consistency.

Inert protection: vacuum sealed to reduce metal burnout

Device supports a closed chamber structure design and can be evacuated or filled with inert protective gases such as argon and nitrogen according to material requirements, completely isolating air from contact with molten metal. Accurately suppressing the high-temperature oxidation reaction of precious metals, significantly reducing the generation of oxidation slag, effectively reducing the melting and burning loss rate of easily oxidizable alloys such as platinum, white gold, 925 silver, etc., and improving the utilization rate of raw materials and the purity of finished products.

Digital optimization: precise temperature control, stable and long-term operation

Entire series is equipped with a digital intermediate frequency power supply, which can continuously and infinitely adjust the melting power. It is paired with a high-precision infrared temperature measurement module to provide real-time feedback on the melt temperature, forming a closed-loop intelligent temperature control system to eliminate temperature fluctuations. Equipped with an independent water-cooled cooling system, it ensures that the power does not decay and the temperature does not drift during long-term continuous production of the equipment. Simultaneously distinguish between two product lines: open desktop and vacuum sealed, accurately matching different scenarios such as small-scale sampling, precision precious metal melting, and large-scale production.

02 Standardized melting process flow: standardized operation, stable product quality

Yihui melting machine can independently complete the melting process or serve as a pre supporting equipment for Yihui casting equipment, adapting to the entire precision casting production line, standardizing the entire process operation, reducing human experience errors, and achieving replicable and reusable melting processes.

1. Preliminary preparation: Thoroughly clean the residual waste residue on the inner wall of the crucible, carefully inspect the integrity of the crucible, and identify potential cracks and damages; Strictly follow the production formula to accurately proportion precious metal substrates and joint alloys, weigh accurately and keep records of data; According to the corresponding protection scheme matched with the smelting material, ordinary silver materials can be melted in an open manner, while high-precision and easily oxidizable alloys such as platinum and white gold must be melted under vacuum argon protection.

2. Layered loading: Following the principle of "large base material at the bottom and small auxiliary materials on the top", the raw materials are layered and orderly placed in the crucible to ensure full infiltration and rapid fusion of the materials during the melting process, avoiding floating and incomplete fusion of lightweight alloy auxiliary materials, and eliminating the problem of uneven alloy composition.

3. Gradient heating preheating: Set the standard melting temperature of the corresponding material in advance, use low-power slow preheating after starting up, gradually increase the power heating, gradually increase the temperature inside the furnace, effectively prevent the crucible from cracking due to thermal shock caused by rapid heating, strictly prohibit high-power instantaneous high-temperature burning, and extend the service life of the crucible.

4. Constant temperature stirring homogenization: After the raw materials are completely melted into a liquid state, maintain a constant temperature for 30-120 seconds, and rely on the equipment's built-in electromagnetic stirring function to continuously mix the alloy, ensuring that the components are highly uniform; Synchronize observation of the molten liquid level status, timely salvage surface floating slag, and reduce residual impurities.

5. Precise temperature measurement review: By using an infrared temperature measurement module to accurately read the real-time temperature of the melt, it ensures that the melt reaches the specified superheat degree, guarantees that the fluidity of the molten metal meets the standard, and meets the process requirements for subsequent centrifugal casting, vacuum casting, and ingot forming.

6. Discharge casting operation: After reaching the melting standard, the ingot can be directly poured into shape or transferred to the matching casting equipment crucible to connect with the subsequent precision casting process; Immediately turn off the power after melting is completed and let the crucible cool down naturally.

7. Equipment cleaning and maintenance: After the equipment is completely cooled down, clean the attachments on the inner wall of the crucible and the metal splashes around the induction coil, comprehensively inspect the integrity of the water-cooled water circuit and seals, and carry out daily maintenance of the equipment to ensure stable, safe, and efficient operation of the next smelting operation.

03 Core process features: Six major advantages to solve industry melting pain points

1. Internal uniform heating to prevent local overburning and oxidation

Based on the principle of endogenous heating in metals, the temperature is uniform and consistent throughout the entire area, with no open flames or localized high temperature zones, effectively avoiding excessive oxidation of precious metals, loss of volatile alloy elements such as zinc, copper, and palladium, stabilizing the proportion of the original alloy formula, and significantly reducing the probability of color difference and unstable quality in finished products.

2. Intelligent electromagnetic stirring with strong batch consistency

Fully automated electromagnetic circulation stirring ensures thorough alloy fusion, with highly uniform composition of molten materials between single furnaces and batches, ensuring consistent color, hardness, and mechanical properties of jewelry products, fully meeting the quality control requirements for mass production in large-scale factories.

3. Digitally programmable, reducing manual dependence

Device is equipped with an intelligent touch panel, and the melting temperature, power, insulation time, and stirring parameters can be customized and saved, and can be reused with just one click. For different materials such as K gold, platinum, silver, dental alloys, etc., exclusive standard melting programs are pre-set. Novices can directly call the recipe program for homework, freeing themselves from dependence on the experience of experienced masters and achieving standardized production processes.

4. Full model matrix, precise adaptation to all scenarios

Covering all specifications of models and melting ranges: Mini melting machines are suitable for gold shops, DIY studios, and small batch sampling, with easy operation and low investment costs; The high-end model of Zhenrong Pro focuses on melting high value-added alloys such as platinum and white gold, with strong inert gas protection to minimize oxidation losses. The single melting capacity of the equipment covers 50g-4kg, fully matching the scenarios of small sample trial production, batch melting and casting, and large-scale production.

5. Multiple safety protections, adapted to the normal production of factories

whole machine is equipped with a closed-loop water-cooled cooling system, which supports long-term continuous operation and stable operation without attenuation; Equipped with multiple intelligent protection mechanisms such as overheating, water shortage, and short circuit, the entire process operates without open flames, completely avoiding safety hazards such as traditional gas spray gun leaks, fires, and explosions, and enhancing workshop production compliance.

6. Efficient energy conservation and consumption reduction, improving production efficiency

Induction heating has a much higher heat utilization rate than traditional flame melting, with fast heating speed and short melting cycle. It can significantly reduce the operating time under the same melt weight, efficiently adapt to continuous production of casting production lines, reduce production energy consumption and time costs, and improve overall production capacity.

04 One stop solution for precious metal casting: controlling the quality of finished products from the source

Smelting, as the first process of forming precious metals, directly determines the porosity, surface smoothness, mechanical properties, and final product qualification rate of subsequent castings based on the purity, uniformity, and temperature stability of the melt. The Yihui medium frequency melting machine adopts three core technologies: induction uniform heating, electromagnetic homogenization stirring, and digital precision temperature control, fully replacing the traditional gas gun melting process and completely solving the pain points of severe melting oxidation, uneven alloy mixing, difficult temperature control, high safety hazards, and unstable batch quality that have long existed in the industry.

By standardizing the control of melting temperature, insulation time, atmosphere protection, and crucible maintenance, combined with Yihui centrifugal casting machine and vacuum casting machine, an integrated precision casting production line can be established to achieve closed-loop production from raw material melting, alloy homogenization to casting forming. It can not only meet the personalized sampling needs of small studios, but also support large-scale factory automation and continuous mass production, providing efficient, stable, and standardized source quality solutions for the precious metal precision casting industry.
