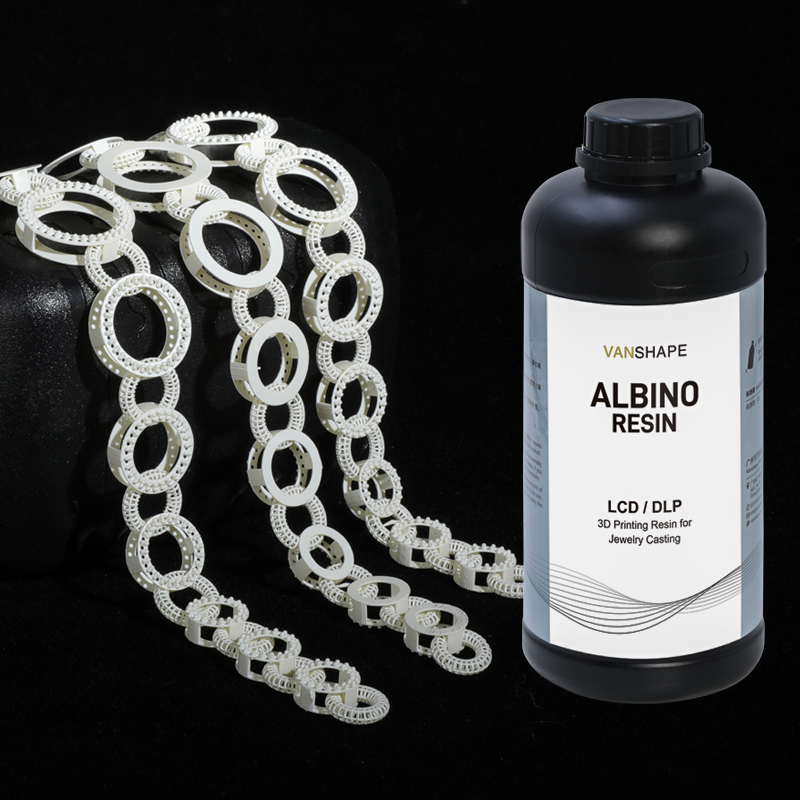

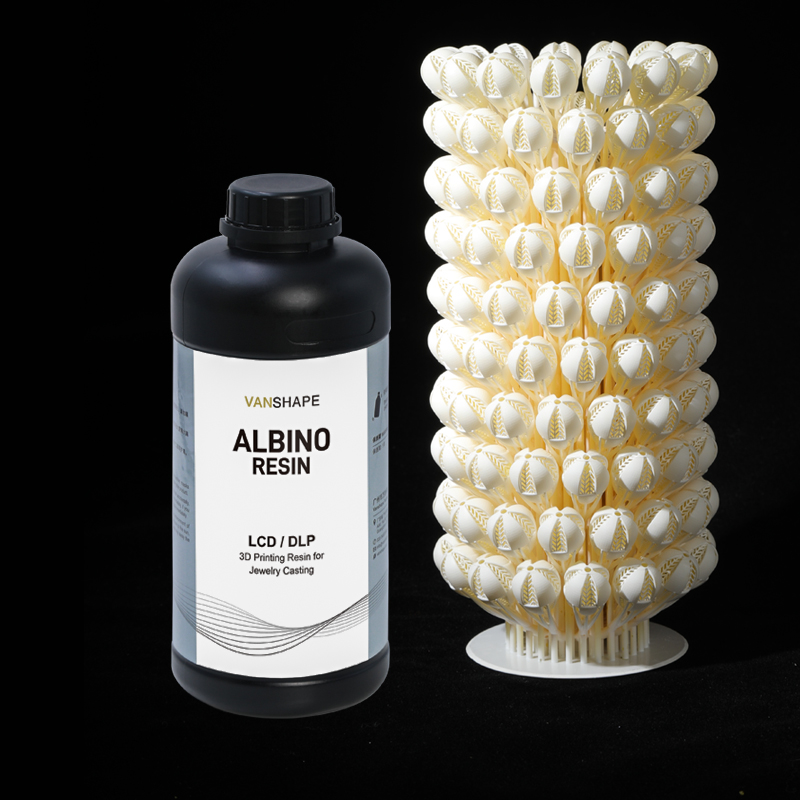

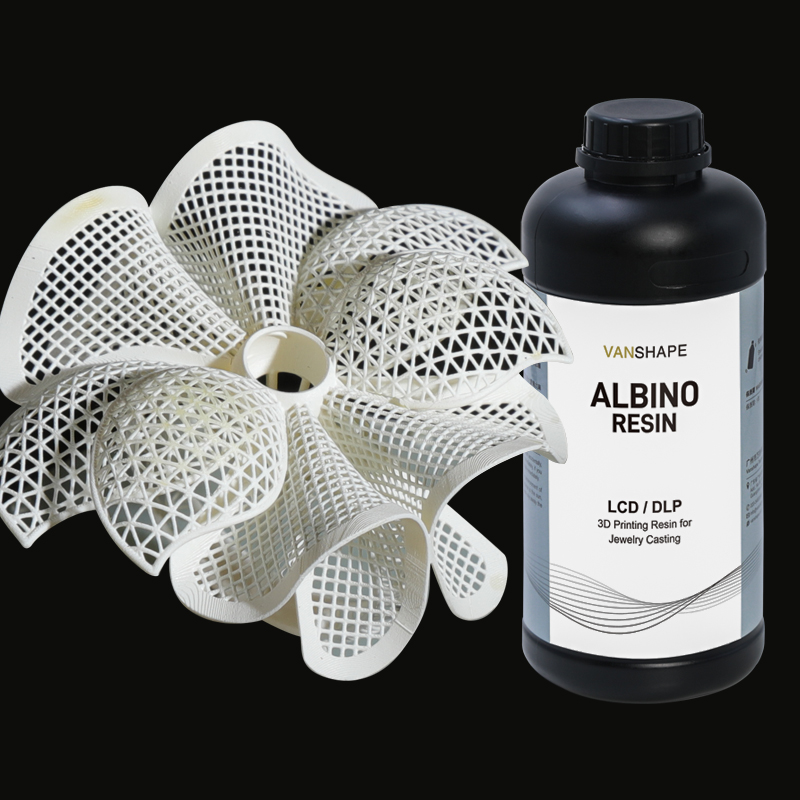

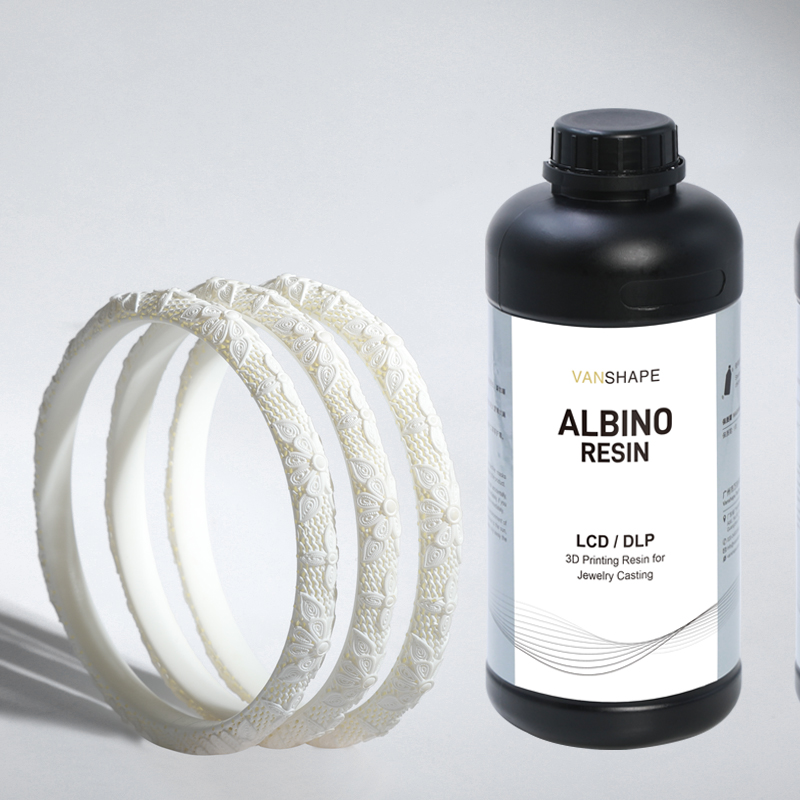

Vanshape ALBINO resin For LCD/ DLP 3D Printer High Accuracy Liquid Photopolymer Resin

    Properties

      Liquidity: Casting resin has good fluidity, ensuring the integrity and accuracy of the casting.

      Adhesion: Casting resin can adhere to the surface of the casting, forming a uniform coating, improving the surface of the casting and reducing defects.

      High temperature resistance: In high temperature environments, the casting resin can maintain stability without thermal decomposition or melting, ensuring the smooth progress of the casting process


New Products
Product Details

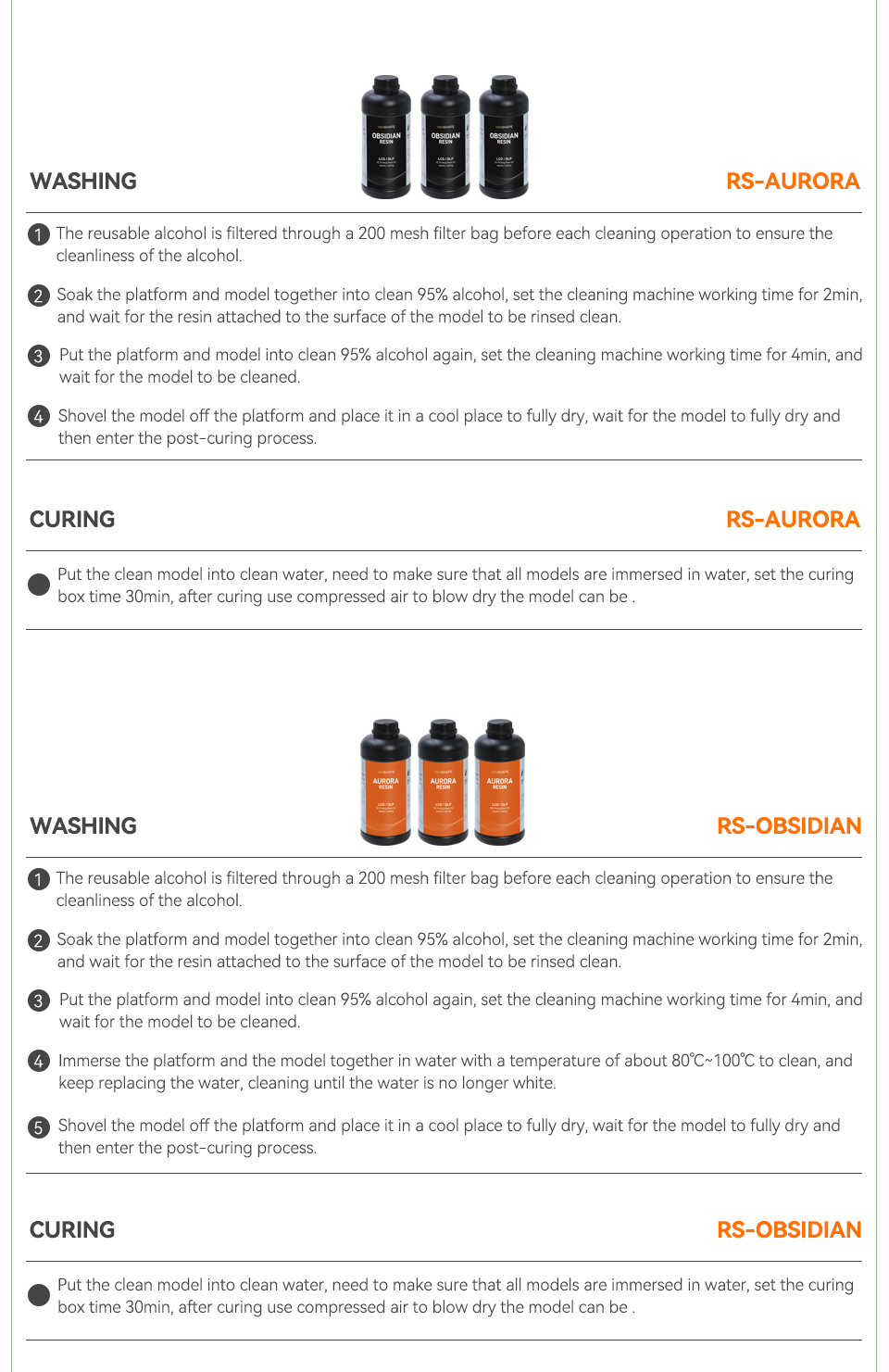

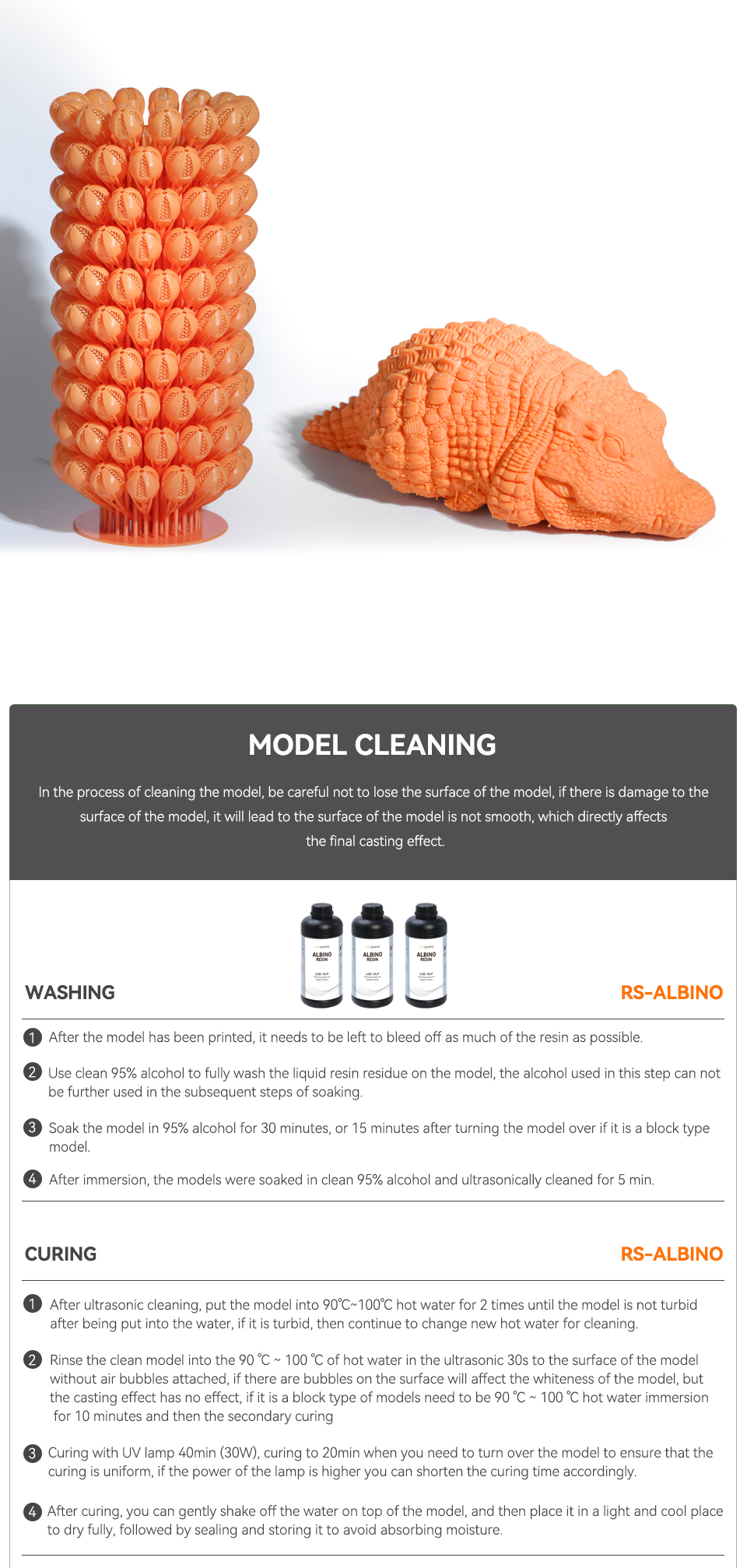

WASHING

1.After the model has been printed, it needs to be left to bleed off as much of the resin as possible

2.Use clean 95% alcohol to fully wash the liquid resin residue on the model, the alcohol used in this step can not

be further used in the subsequent steps of soaking.

3.Soak the model in 95% alcohol for 30 minutes, or 15 minutes after turning the model over if it is a block type

model.

4.After immersion, the models were soaked in clean 95% alcohol and ultrasonically cleaned for 5 min.

CURING

1.After ultrasonic cleaning, put the model into 90'c~100'c hot water for 2 times until the model is not turbid

after being put into the water, if it is turbid, then continue to change new hot water for cleaning.

2.Rinse the clean model into the 90 'c ~ 100 'c of hot water in the ultrasonic 30s to the surface of the model

without air bubbles attached, if there are bubbles on the surface wil affect the whiteness of the model. but

the casting effect has no effect, if it is a block type of models need to be 90 'C ~ 100 'c hot water immersion

for 10 minutes and then the secondary curing

3.Curing with UV lamp 40min (30W), curing to 20min when you need to turn over the model to ensure that the

curing is uniform, if the power of the lamp is higher you can shorten the curing time accordingly.

4.After curing, you can gently shake off the water on top of the model, and then place it in a light and cool place

to dry fully, followed by sealing and storing it to avoid absorbing moisture.

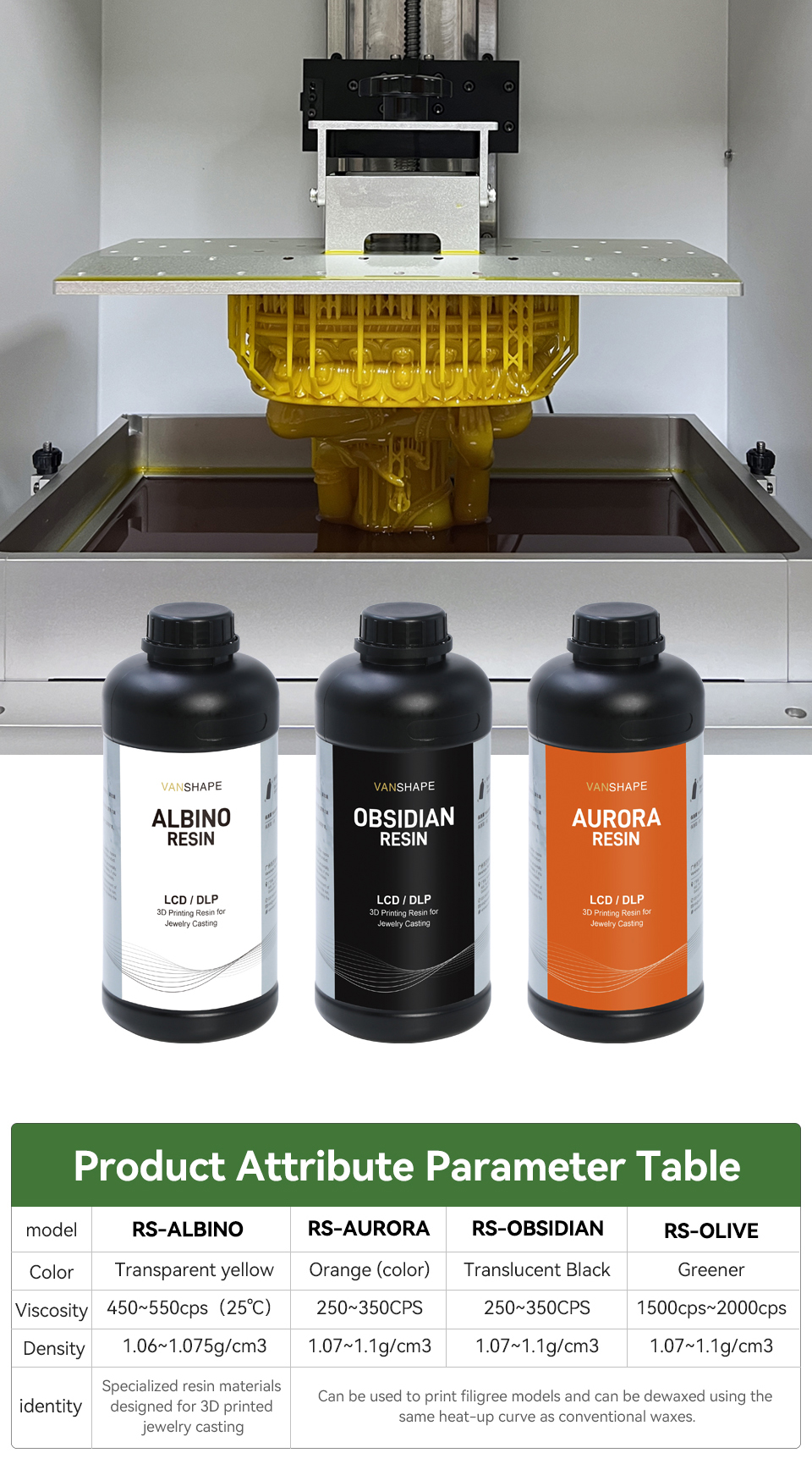

Product Attribute Parameter Table
modelRS-ALBINORS-AURORARS-OBSIDIANRS-OLIVE
ColorTransparent yellowOrange (color)Translucent BlackGreener
ViscosityTransparent yellow250~350CPS250~350CPS1500cps~2000cps
Density1.06~1.075g/cm31.07~1.1g/cm31.07~1.1g/cm31.07~1.1g/cm3
identitySpecialized resin materials

designed for 3D printed

jewelry casting

Can be used to print filigree models and can be dewaxed using the

same heat-up curve as conventional waxes.

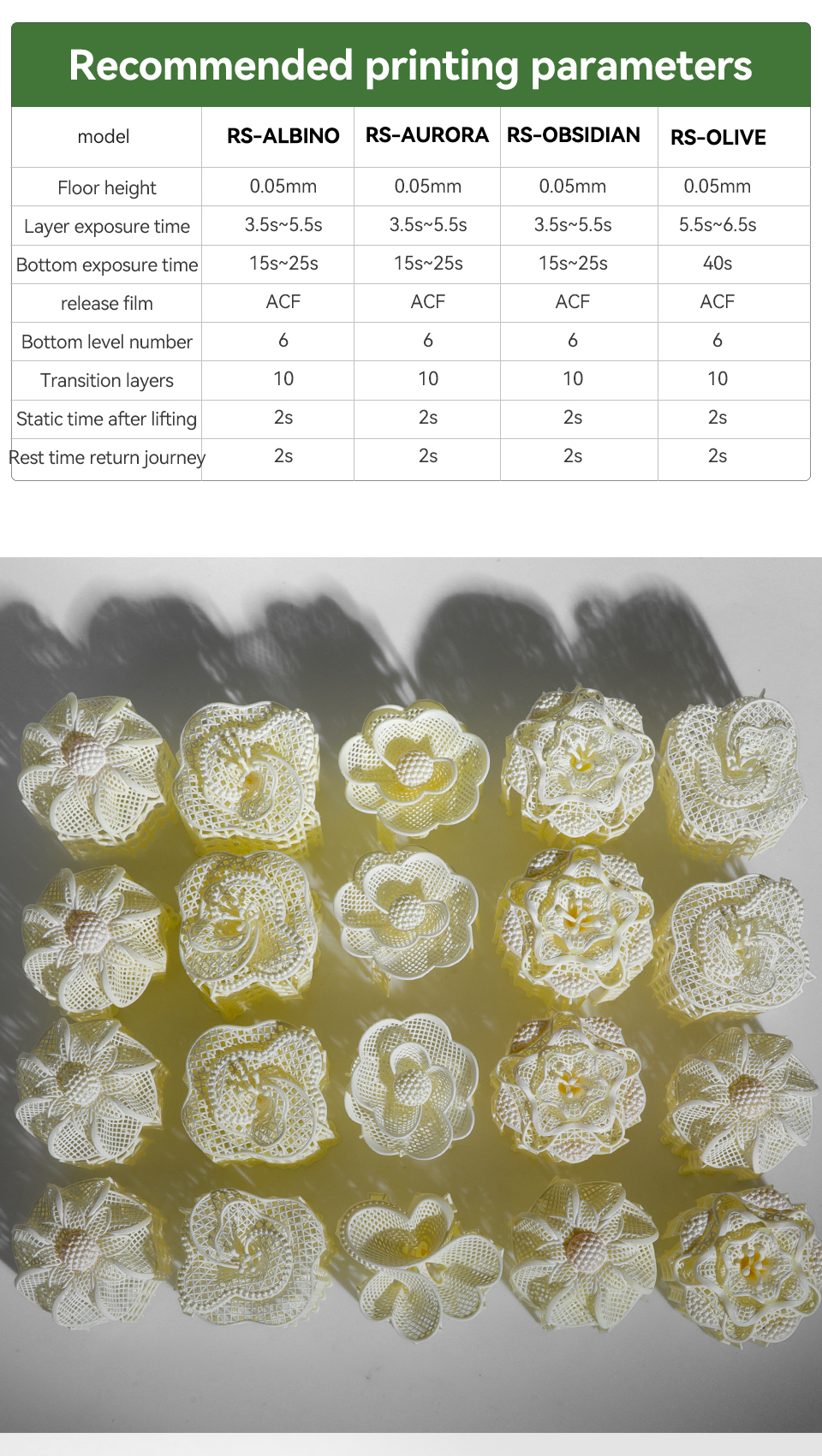

Recommended printing parameters
modelRS-ALBINORS-AURORA RS-OBSIDIANRS-OLIVE
Floor height0.05mm0.05mm0.05mm0.05mm
Layer exposure time3.5s~5.5s3.5s~5.5s3.5s~5.5s5.5s~6.5s
Layer exposure time15s~25s15s~25s15s~25s40s
release filmACFACFACFACF
Bottom level number6666
Transition layers10101010
Static time after lifting2s2s2s2s
Rest time return journey2s2s2s2s
