HOME    Wax injection    PROMIN Wax injection machine with big clamp

PROMIN Wax injection machine with big clamp

Power suplly:AC 220V±10% 50/60Hz
Power input:500W
Wax chamber temp range:55-85℃(±1℃)
Nozzle temp range:55-85℃(±1℃)
Wax chamber capacity:3Kg
Store Programs:10 groups of one key control ,and one group of non-one key control
Clamp size:L135 × W135 × D60(max)
Attention : 0

Service: 30 days worry-free return, 48 hours fast refund, Yihui self-operated

Favorites
Quantity:
  •

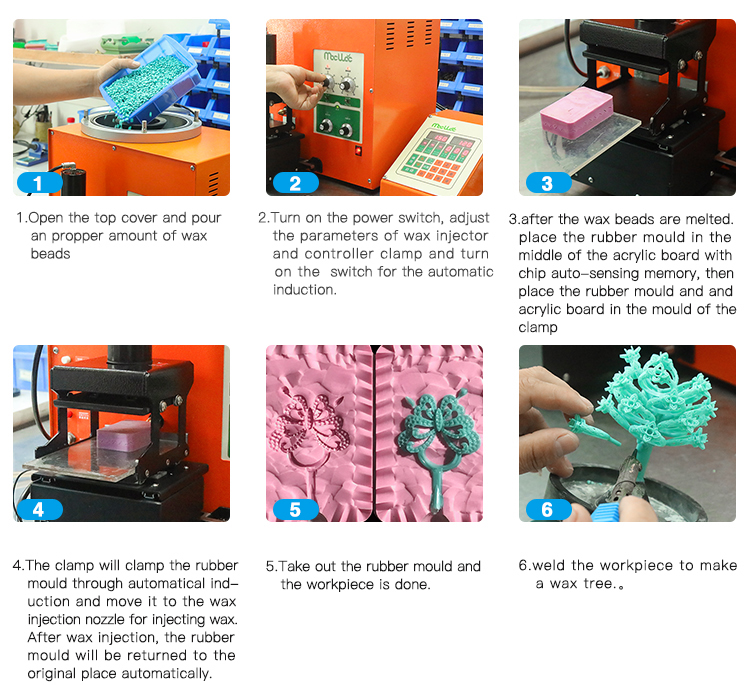

    IW-5_01Operation Video

    Product Description

    PROMIN auto clamp digital vacuum wax injector Technical parameters

                                     Power Supply                                                             AC220±10%V,50/60HZ,1Phase
    Power Input 500W
    External input pressure 0.4~0.7MPa
    Pressure regulator setting range 0.25~0.3MPa
    Pressure sensor display range -5~240KPa
    Mold CLAMP pressure setting range 30~235Kpa
    Mold FORWARD pressure setting range 65~235Kpa
    Mold HOLD TIME setting range 0~300(s)
    VACUUM time setting range 0~99.9(s)
    INJECTION time setting range 0.1~99.9(s)
    Maximum workpiece count 0~9
    Total amount of data stored 10Groups
    Start magnetic induction or button
    Rubber model specification H60 X W 135 x L 135(max)



    1.To make the high leavel wax injector with application of Japanese advanced technology parts and workmanship standard

    2.This machine is equipped with manual lifting clamps With no request on any tools the operator can easily and accrately adjust the postion of the rubber mould upwards or downward which makes it easier for the rubber to align the wax injection nozzle



    Packaging & Shipping

    We can offer Standard carton,Wooden box,Pallat packages,etc.

    We can send it by air,by train,by car,by sea,according to your according to your requirements.

    Our Services

    We can offer life time service of this machine,

    1years warranty of machine,free parts and delivery,

    we can offer free trianing to your in our factories,

    send our engineers to your factories and office,

    Video call and online service.

    We have Showroom and distributor all over the world,can offer location service to yours.

    Company Information

    Yihui Casting Technology Co., Ltd, established in March, 2003, through more than10 years effort,

    has developed as a professional supplier in providing integrated lost wax casting solutions,manufacturing jewelry casting machines and materials, specializing in casting technology research & development and application. Under Yihui brand, we own Shenzhen Yihui Casting

    Technology Co., Ltd, Guangzhou Ruihui Casting Machinery Co., Ltd, Shenzhen Xinhui Casting

    Material Co., Ltd., Dongguan  Yihui Casting Technology Co., Ltd, Guangzhou Yihui Jewelry Tools

    Co., Ltd, and other manufacturing and selling companies.

    Additionally, Yihuicasting have graphite products making factory, ceramic products making factory, machines making factory. Relying on Yihui brand, centering on casting realted products, complete products supplying system has been formed, meanwhile, we are agent of world known brand

    jewlery tools and consumables. Products range covers all the jewelry making procedures, which

    are widely used in jewelry, watches, glasses, dental, glaze, and other precision loss wax casting

    industry, which have been exported  far to South-east Asia, Mid-east, European and American countries.

    FAQ

    We will offer a free bags wax beads to you,which quantity in 11.35KGS,if you purchase our PROMIN wax injector in 1th April,2021 to 31th December,2021.

    If you have Interesting in it,feel free to contact us.

    Wechat/Whatsapp/Facebook/Telegram:+8613802830498

    Email:export@yihuicasting.com

    • Models
      Z.M.WI.IW-PRO
    • Weight
      32KGS
    • Net Weight
      6.5KGS
    • Min Temperature
      3℃
    • Pump power
      55w
    • Water lift
      12m
    • Water flow
      13L/Min
